Commissioning and operation
Operation of clutch at GKK gearbox
Switching via clutch lever
6
19 BA 12.0032-EN 2.0
6.4 Operation of clutch at GKK gearbox

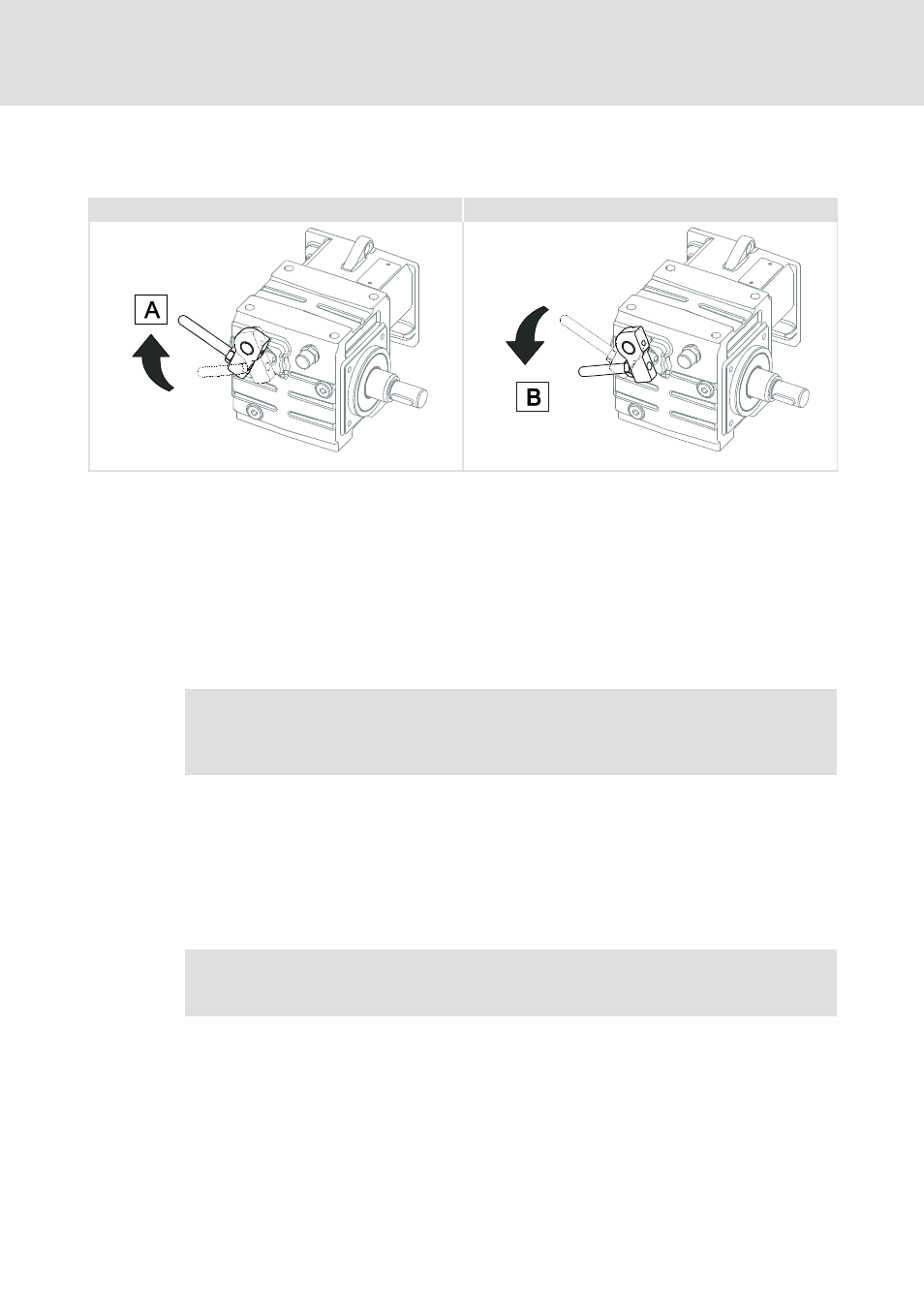

Disengaged Engaged
KL GKK04-001.cdr
Fig. 2 Positions of the clutch lever in mounting position A
Disengage: Move clutch lever to the stop in direction
Engage: Move clutch lever to the stop in direction
6.4.1 Switching via clutch lever
The GKK gearbox is suitable for moving into and out of the material in drag conveyors or
similar systems of the materials handling technology. During the positioning process, the
clutch is switched via clutch lever. Switching is permissible at low speed difference (up to
10 m/min).
Note!
To achieve the highest possible service life of the components involved in the
switching process, a speed synchronisation is desirable.
With an integrated frequency inverter in the controller, it is also possible to match the
travellingspeedoftheGKKgearboxtothespeedofthedragconveyor sothatengagingcan
be omitted.
6.4.2 Manual switching
The gearbox can be disengaged under load during operation.
Note!
Engaging only with motor and driven shaft at standstill.
