Maintenance

Repair
Fuse change

8

l

54

BA_ELx8xx EN 3.0

CAN

2

CAN

2

CAN1

MC-

POWER

FAN2

FAN3

CF-CARD

RESET

USB

-μCON

BL

IG

HT

ACCU

CR2450

1

2

19

20

F1

T4A

0

ELx7xx−018

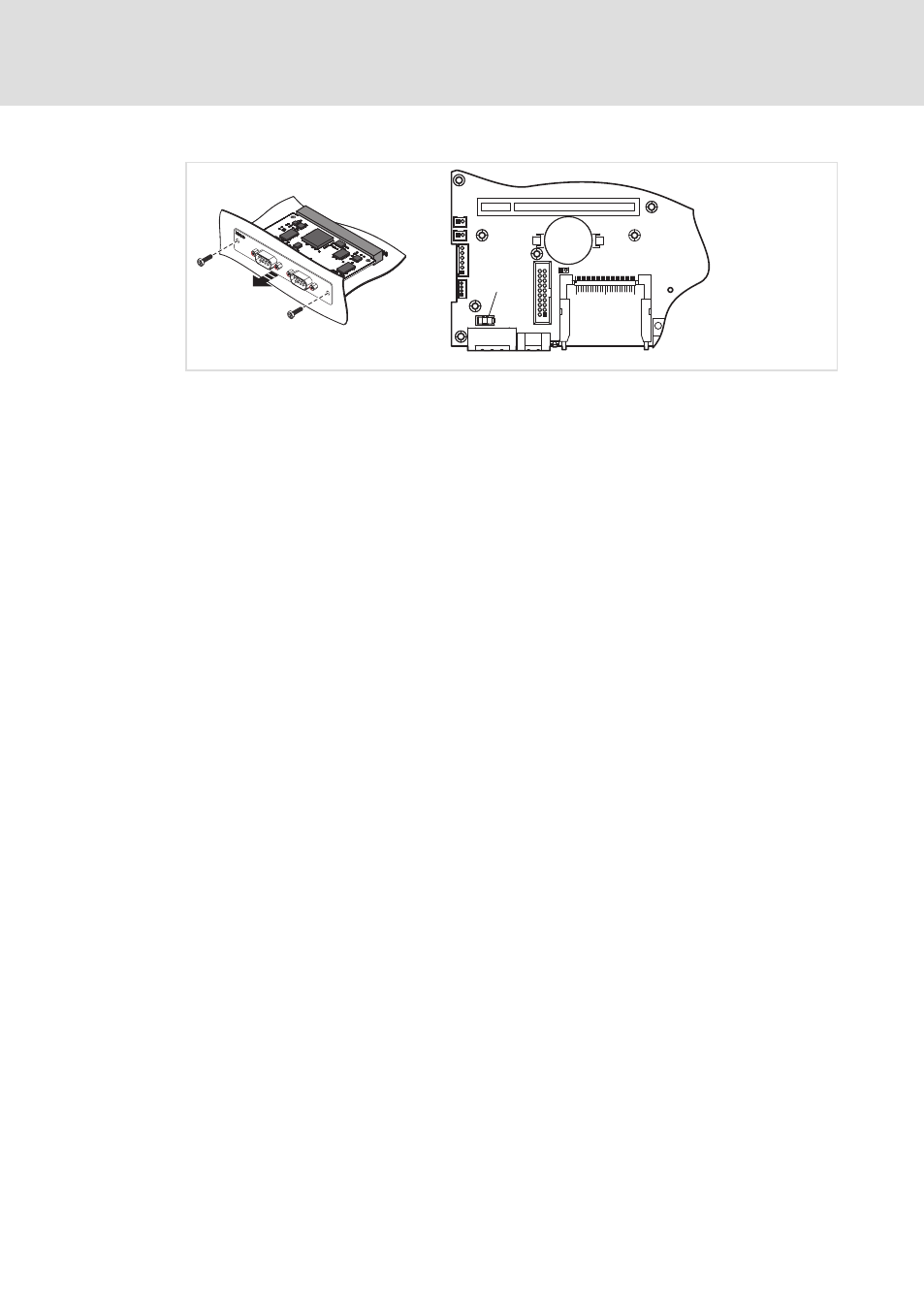

How to proceed:

1. Remove the MC Card, if inserted.

2. Remove the old fuse

0 from the support.

3. Insert a new approved fuse

0 into the support.
