Maintenance
Repair
Remove the PC housing
l
49
BA_ELx8xx EN 3.0
8.3
Repair
8.3.1

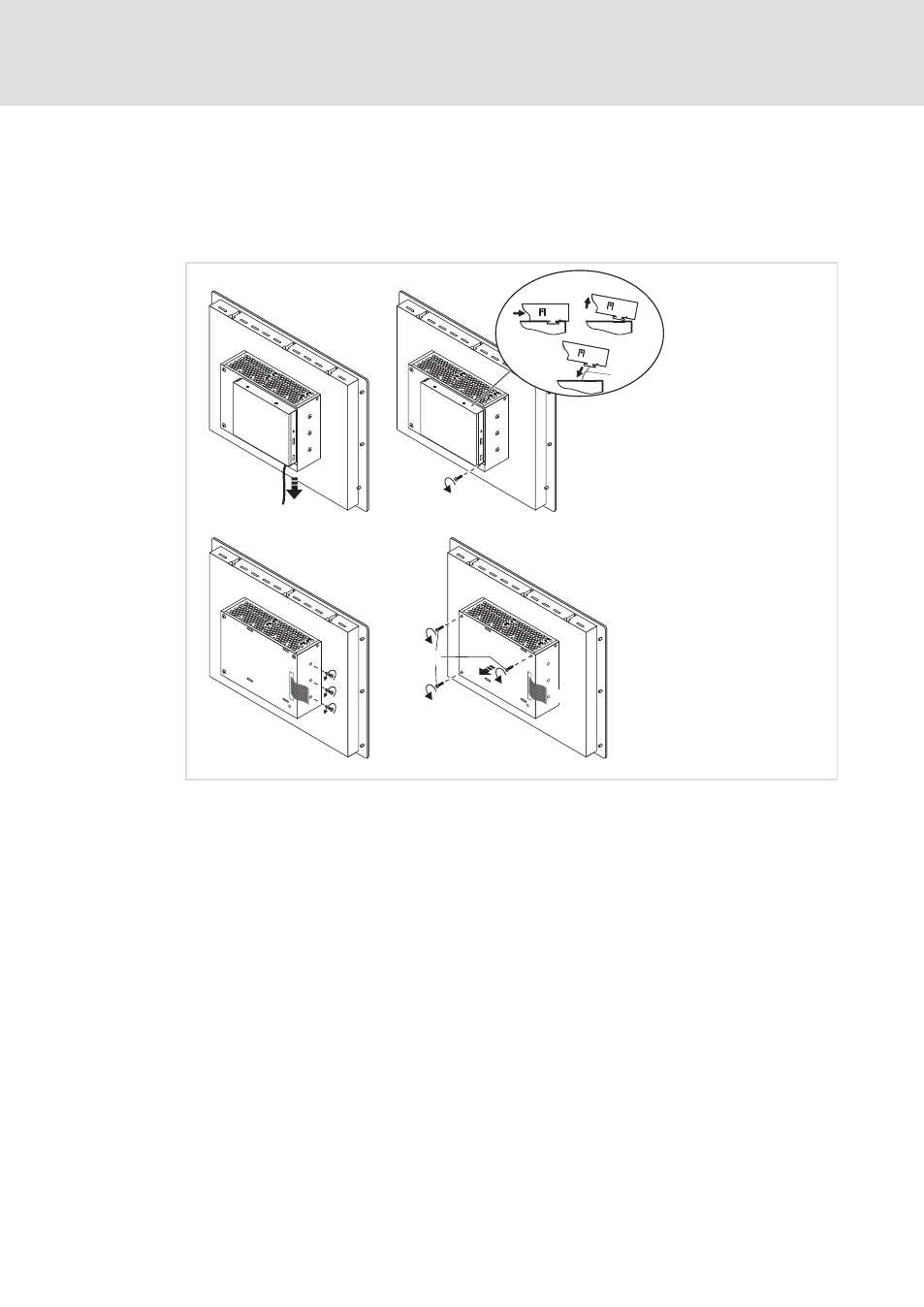

Remove the PC housing
With DVD drive
d
isc
d
isc
4
6
5
3
d
isc
d
isc
2
0
a
b
c
3
1
ELx7xx−013
Proceed as follows when a DVD drive is mounted:
1. Remove the 24 V cable
0 (¶ 38)
2. Remove the DVD drive
1:
– Loosen the fixing screw
2.
– Push the DVD drive to the right.
– Carefully take off the DVD drive.
– Remove the ribbon cable
3.
3. Only for fanless devices: Loosen the three screws
4.
4. Remove the housing
5:
– Loosen the three screws
6.
– Carefully pull the housing
5 off towards the front while passing the ribbon cable 3
through the housing aperture.
