Operation
Controls and displays
Panel PC EL 5820
7
l
43 BA_ELx8xx EN 3.0

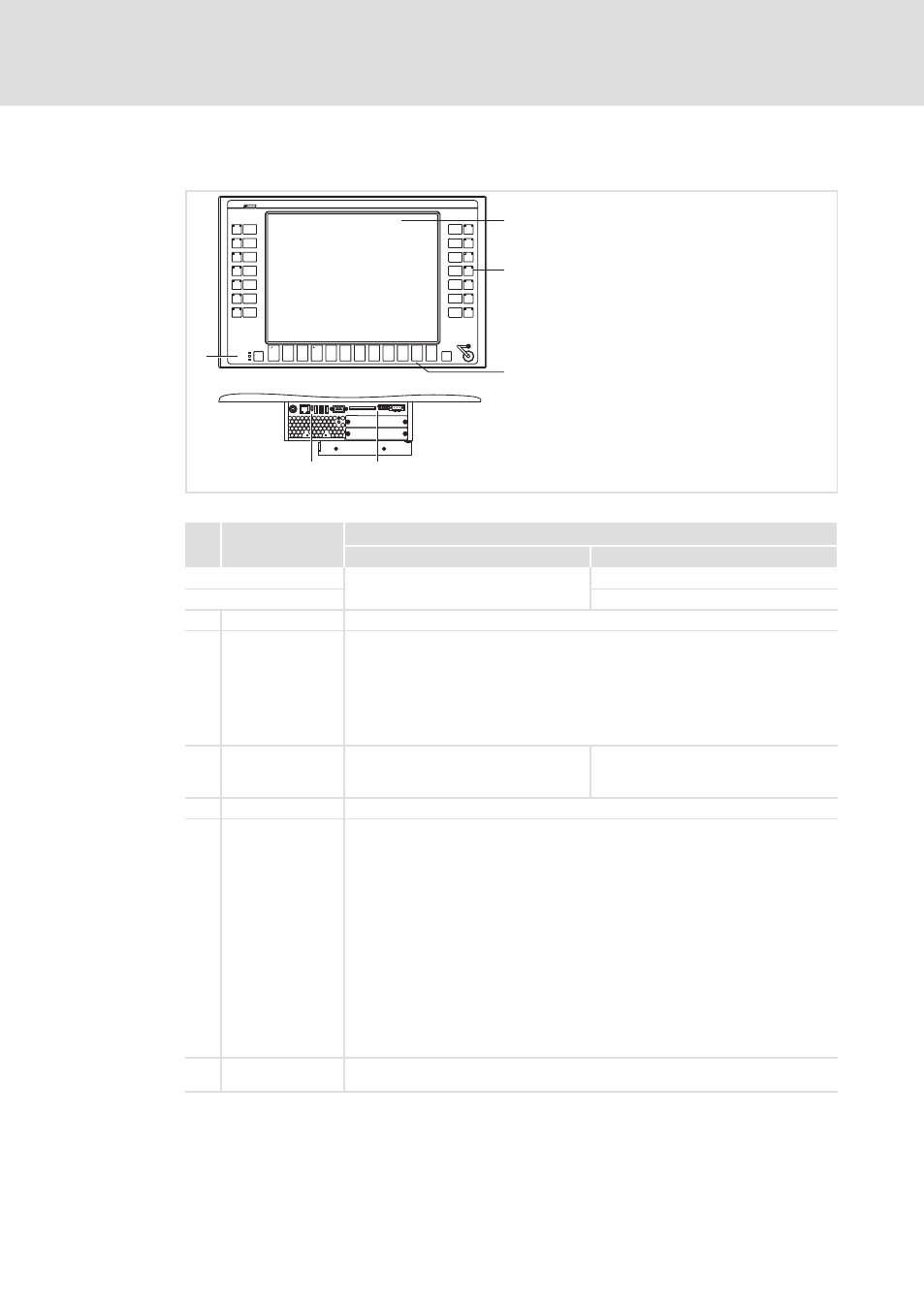

7.2.2 Panel PC EL 5820
5
2
0
3 4
S13
S14
S11
S10
S12
S6
S7
F3 F2
+ -
F4 Status
Power
Fail F1 Esc Enter F11 F12 F6 F5 F7 F8 F9 F10
S1
S4
S2
S3
S5
S8
S9
1
ELx7xx010
Pos. Designation Function
Standard mode Service mode
Switch on mode: Press " [" for 4 s
Switch off mode: Press " [" or wait for 35 s
0 Display Application−dependent
1 Status LEDs Power (green):
l Is ON when the supply voltage is present.
Fail (red):
l Is On when a power supply failure has occurred.
l Is blinking when the screen signal is missing.
Status (yellow):
l Application−dependent
2 Function keys F1 ... F12: Send key code for F1 ... F12 Tool: Application−dependent
+: Increase screen brightness
−: Reduce screen brightness
3 Reset button Reset PC (restart)
4 Status LEDs Error (red):
l Is lit if a power supply failure has occurred.
l Is blinking when the screen signal is missing.
HD (yellow):
l Indicates access to a storage medium.
Power (green):
l Is lit when the supply voltage is present.
l Flashes (
−−−
−
−−−
− ) in the case of a hardware error.
l Is blinking ( −−
−
−−
−
) when the ACU UPS (optional) is being charged.
l Is blinking ( −−
−−
−−
−−
) when there is a supply voltage failure and the device is being
supplied by the ACU UPS.
l Is blinking ( −
−
−
−
) when the supply voltage of the ACU UPS is too low (e.g.
rechargeable battery is empty or missing).
l Blinks 4 x per second if the ACCU−PACK causes a short circuit or if the CAPS−PACK
is completely discharged.
5 Special keys S1 ... S7: Send key code for shift−F1 ... shift−F7
S8 ... S14: Send key code for ctrl−F1 ...ctrl−F7
