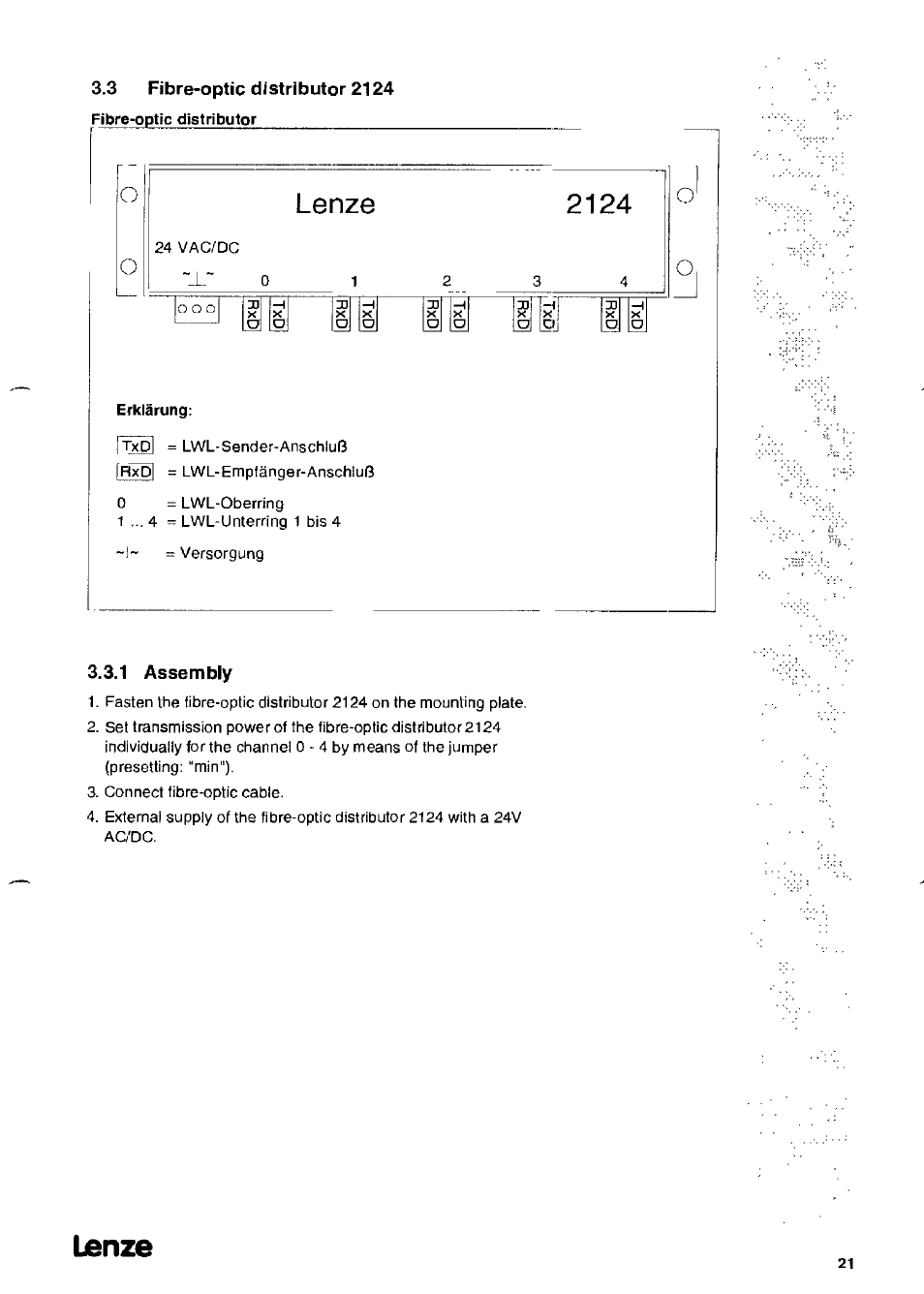

3.3 Fibre-optic distributor 2124
Fibre-optic distributor
Erklärung:
=
LWL-Sender-Anschlul3
LRxD
=
LWL-Emptänger-Anschlul3
0
=
LWL-Obarring
1
...
4
=
LWL-Unterring 1 bis 4
=1= =
Versorgung
3.3.1 Assernbly
1. Fasten hie tibre-optit distributor 2124 on tha mounting plate.
2. Set transmission powerot the tibre-opticdistributor2l24
indivictually tor tha channal 0
-
4 by means ot tha jumper
(presetting: „min‘).
3. Gonnett tibre-optit cable.
4. External supply ot the tibre-optit distrlbutor 2124 with a 24V
AG‘DC.
