3. Description of the units
3.1 Fibre-optic adaptor 2121 tor 8100 E5 inverter
series

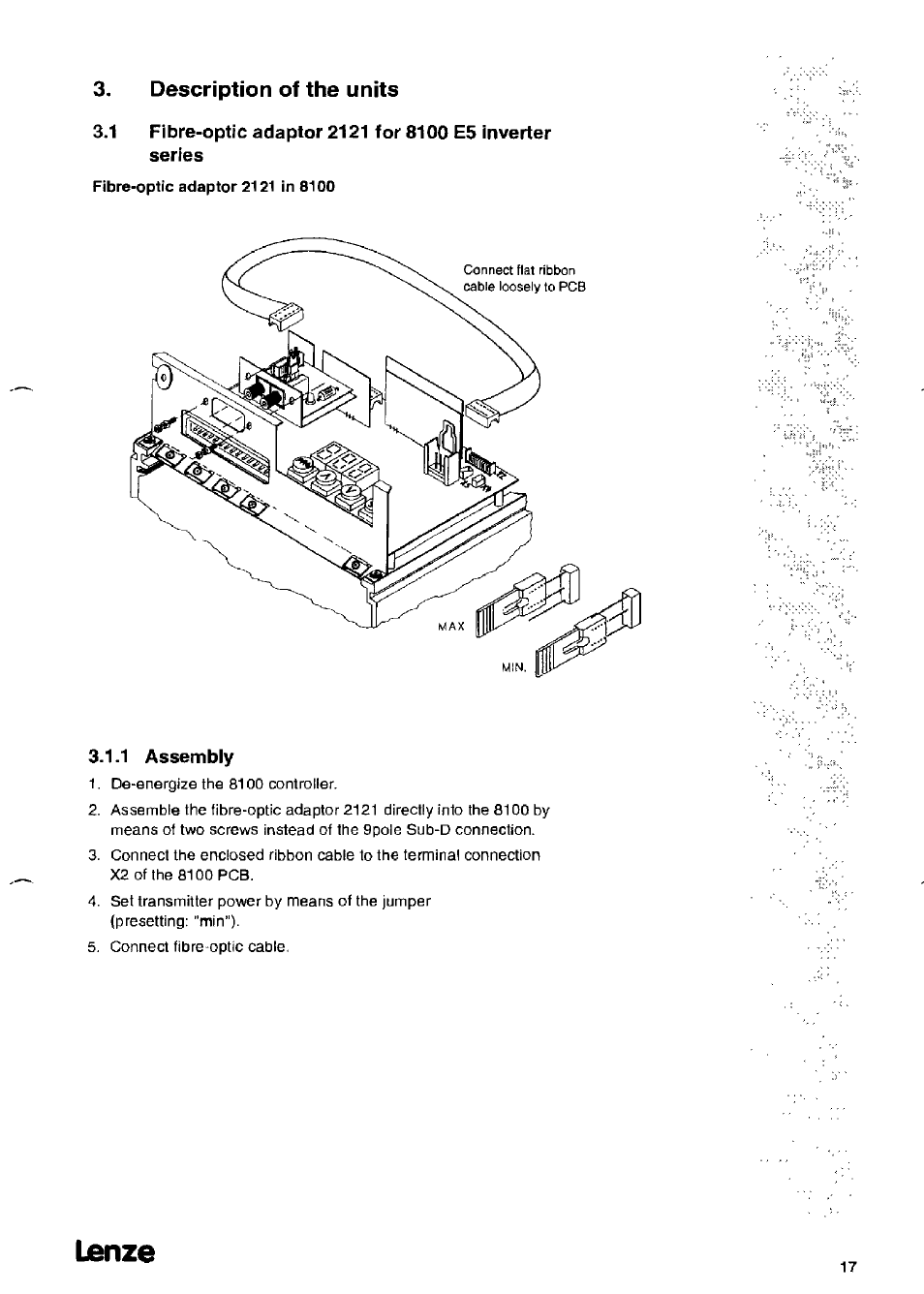

Fibre-optic adaptor 2121 in 8100
3.1.1 Assembly
1. De-energize the 8100 controller.
2. Assemble the tibre-optit adaptor 2121 direttly into the 8100 by
means ot twa strews instead ot the Opole Sub-D connection.
3. Connect the enclosed ribbon Cable to the terminal connection
X2 ot the 8100 POB.
4. Set tranamitter power by means ot the jumper
(presetting: ‚min).
5. Connect tibre-optic cable.
