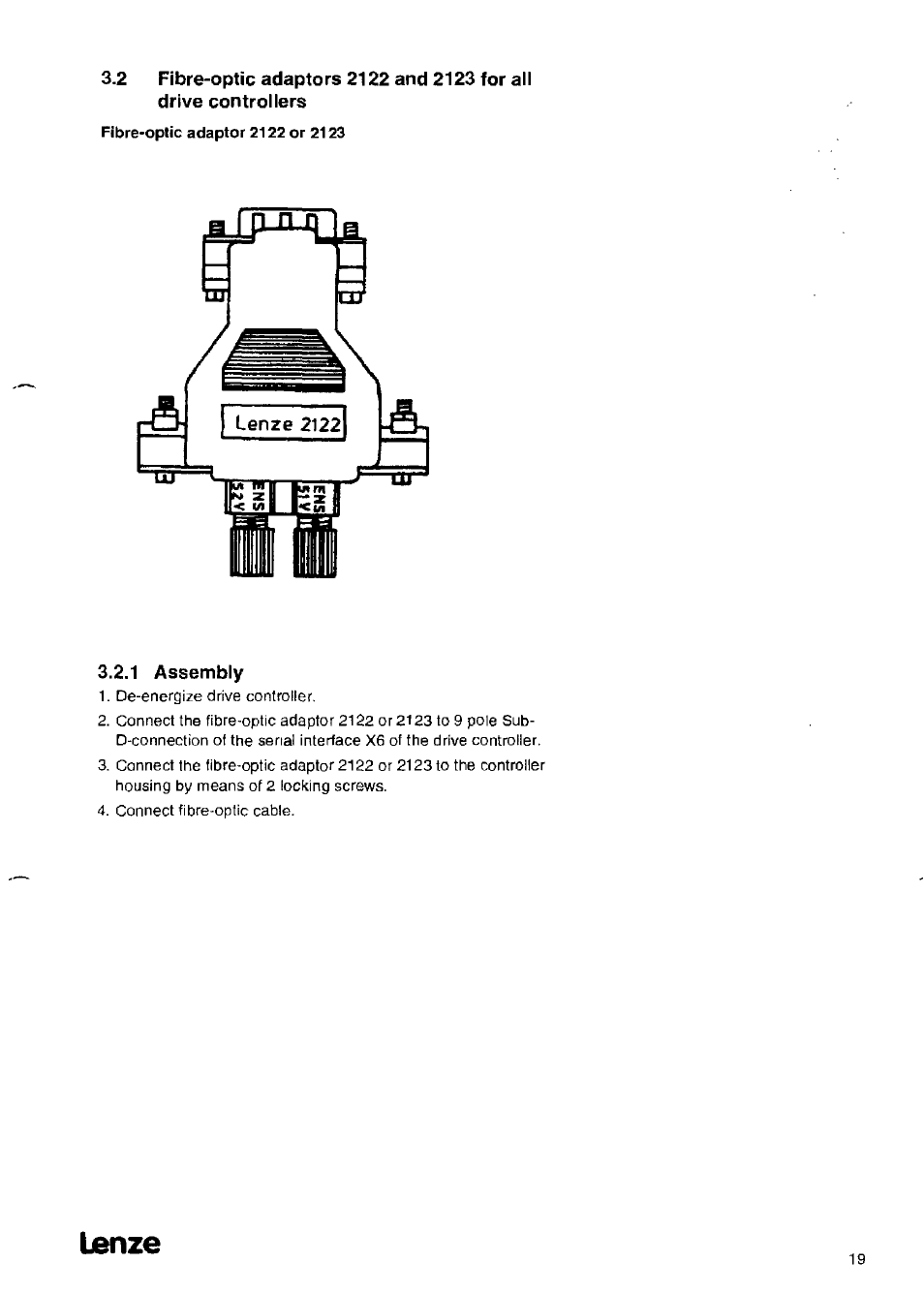

3.2

Fibre-optic adaptors 2122 and 2123 for all
drive cofltrollers

Fibre-optic adaptor 2122 or 2123

3.2.1 Assembly

1. De-enargize drive controller.

2. Connect the tibre-optic adaptor 2122 or 2123 to 9 pole Sub-

D-connection ot the sertal interface X6 ot the drive controller.

3. Ccnnect the tibre-optic adaptor 2122 or 2123 to the controller

housing by means ot 2 locking screws.

4. Connect fibre-optic cable.
