11 Leica HI 1210 Water Bath
4. Instrument Setup
4.2 Unpacking and setting up the HI1210 (continued)

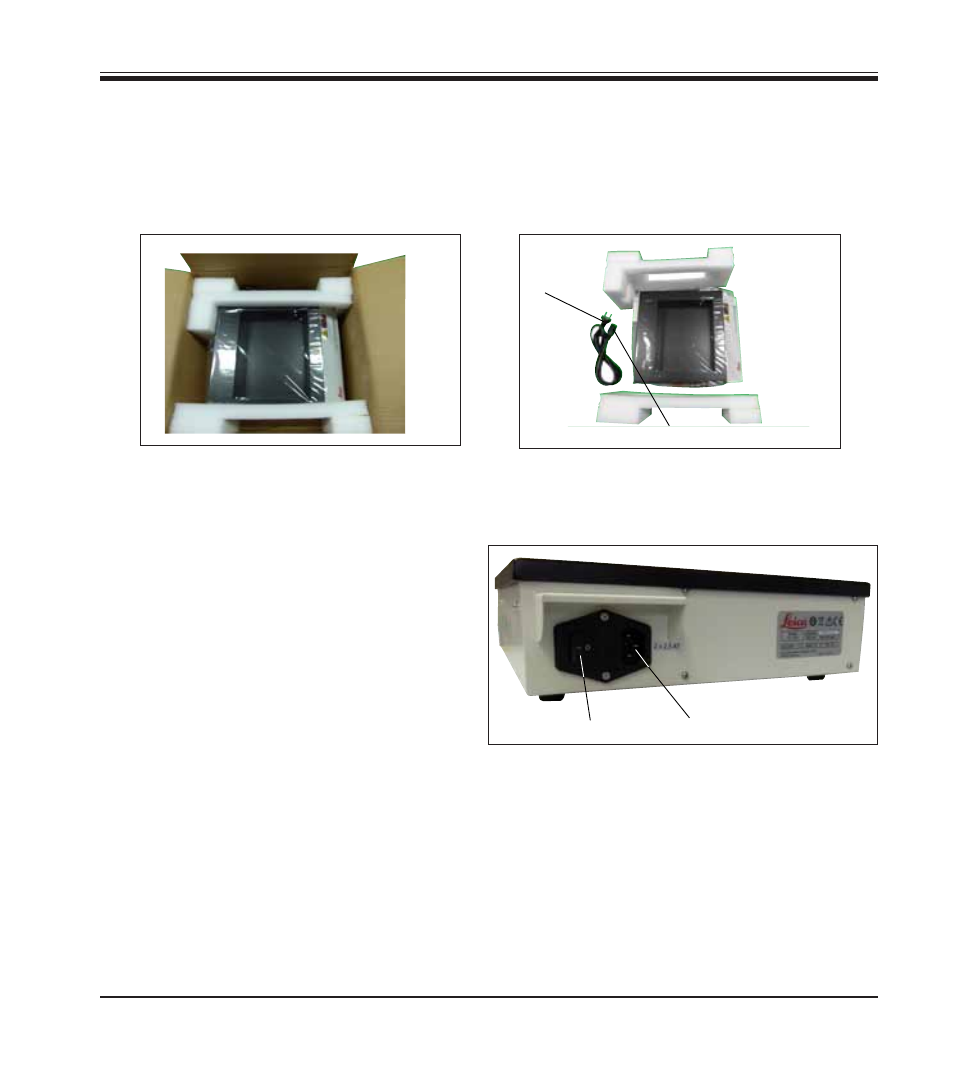

Fig. 4 Fig. 5
Remove the accessories and carefully lift the
instrument out of the carton ( Fig. 4 ).
Hold the instrument firmly with one hand, pull off
both foam sections ( Fig. 5 ) and remove the dust
cover.
4.3 Setting up the power supply
• Before connecting the power cable, make
sure that the power switch (3) on the rear of
the instrument ( Fig. 6 ) is switched to"0" = OFF.
• Use the instrument with the provided power
cable only.
• Insert the connector of the power cable
( Fig. 5 , 2) into the connection socket (4) and
plug the power plug into the power socket
1
2
х
х
Fig. 6 3 4
