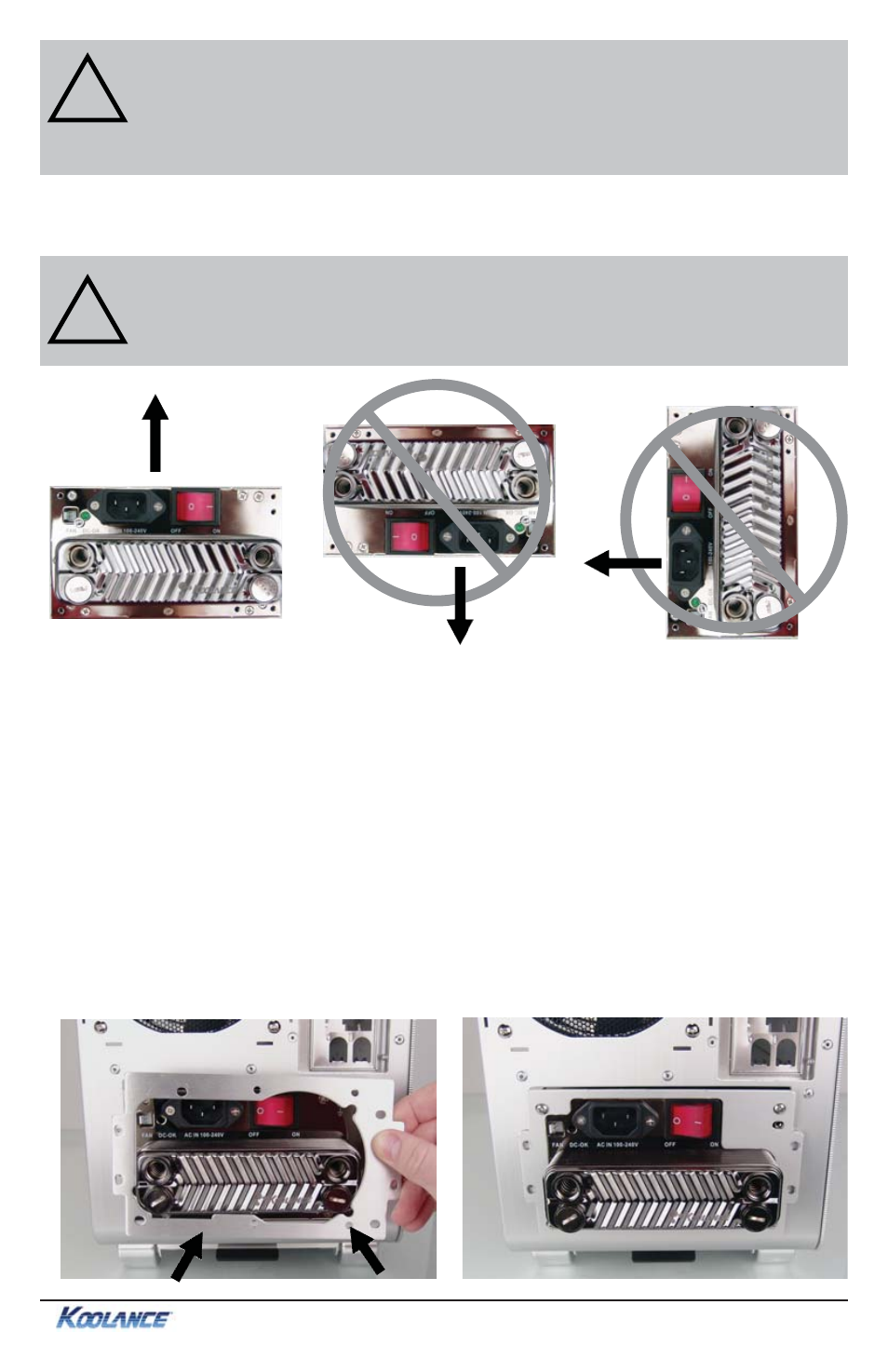

CORRECT PSU Direction

If your chassis has a rear PSU mounting plate, this may need slight modifi cation to
allow the PSU-1300ATX-12N rear heat exchanger to fi t properly.

Koolance systems which are physically compatible with the PSU-1300ATX-12N
include the PC3-724, PC3-725, PC3-726, PC3-736, PC4-1024, PC4-1025, PC4-
1026, and PC4-1036. All of these chassis require removal of a hard drive bay and
minor modifi cation to the rear PSU mounting plate (or the purchase of a separate
Koolance PSU-1300ATX-12N “Chassis PSU Mounting Plate”, if compatible). Note
that for thermal purposes, Koolance recommends using at least a PC4 when also
used to liquid cool the PSU-1300ATX-12N.

CAUTION: The PSU-1300ATX-12N must be mounted in an upright
direction. Other orientations will not allow the pump to circulate coolant
properly, or coolant will not fully submerge internal heat sources.

CAUTION: The PSU-1300ATX-12N power supply is not a self-
dissipating product and must be connected to an existing liquid cooling
system (not included). The power supply will overheat and may become
permanently damaged if operated without proper cooling.

Preparation for Installation

INCORRECT Direction

Default PSU Plate (User Modifi cation Needed)

Koolance Optional Pre-Modifi ed PSU Plate
