3
User Manual
Internal Connections
The modular connections must match their appropriate plug on the PSU (power
supply unit). Pay careful attention to the direction of each plug and notch while
inserting, as some are upside-down. Never force a plug into the PSU.

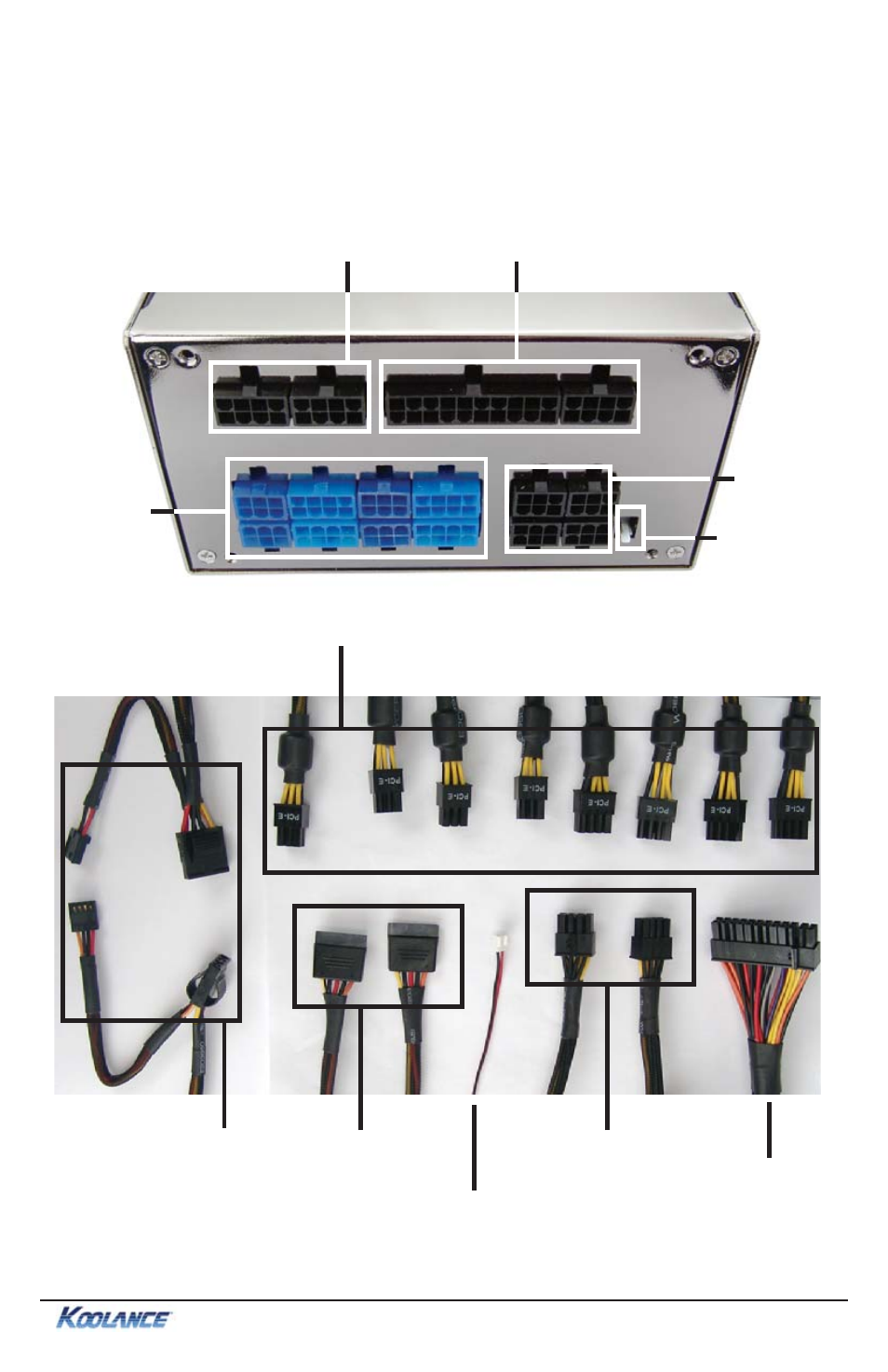

12V 8-pin (Motherboard)
Motherboard Main ATX
PCI-Express
SATA, IDE,
Peripherals
*Internal
Temp. Sensor
PCI-Express 4 x 8-pin, 4 x 6-pin
Peripheral x 2 Cables
(IDE, Floppy, etc.),
4 Plugs
SATA x 2
Cables, 4 Plugs
*PSU Temperature Sensor
2 x 8-pin
Mainboard 12V
Main ATX 24pin
*Internal PSU coolant temp. sensor is compatible with Koolance systems only (PC3/Exos 2 and later).
