OPERATION
User instruction book St8

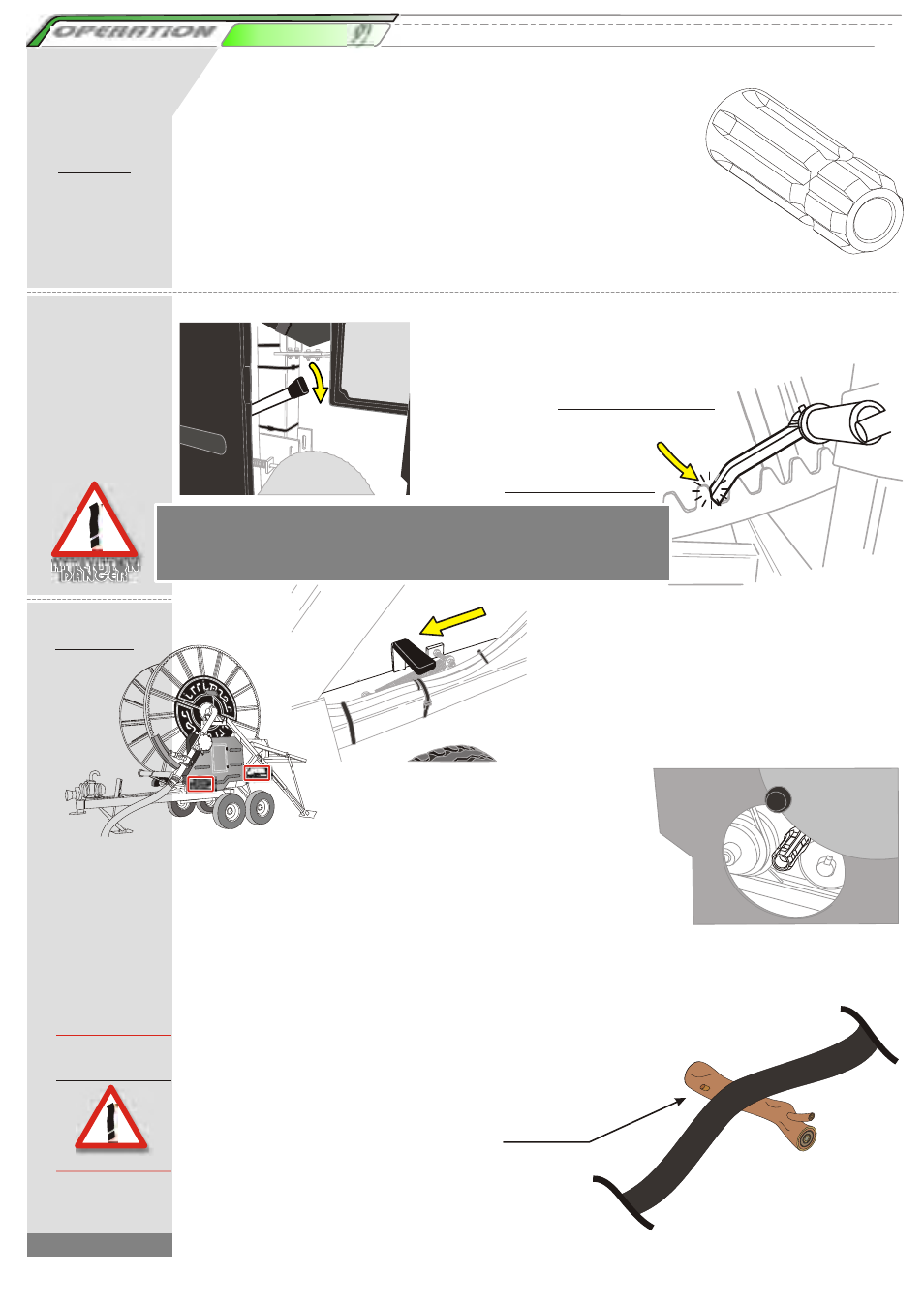

Rolling up with power take off
9)
- The PTO
Power take off
Description
- All the Irrimec hose reel models are provided with a power take off (pto) shaft to allow manual rolling up.
This operation must be carried out only in the event of extreme need: for
a normal operation of the Hosereel, it is absolutely discouraged
to roll the tube up completely from the start.
- In case the turbine or the motor fails or, in the case of a problem on the
computer, or in case of a relaxation of the tube or a trancanage failure, it
is possible to roll up the tube to move the reel.
- To carry out the winding operation with the power
take off, follow these instructions:
Stop winding
and suppress the
hose tension
- I) Lower the anti-return pawl and push the the ring gear tooth on.
- Stop winding
... made push the hosedrum on
the anti-return pawl.
- While lowering the tightener belt lever ...
BEFORE ALL INTERFERENCE, TO STOP THE HOSEREEL, TO PUSH,
THE HOSEDRUM ON THE ANTI-RETURN PAWL AND TO VERIFY THAT THE PE
HOSE IS NOT IN TENSION.
Instructions:
- 2) disengage, Push the stop rod on the left.
3) Insert the crank, the wheel, or the
universal joint to the power take off shaft.
4) Start the winding with a constant speed.
5) Make sure the wraps are tight to one another. And that the hose
guide mechanism is not in advance or late in comparison with the hose.
6) At one meter from the end of the tube, stop the tractor and use the
crank to finish rolling up the last meter with the hand wheel.
- ATTENTION: The hose retention bar in this case does not stop the Hosereel. It is up to the
user to stop the tractor in time.
- ATTENTION: Never roll up the tube with the PTO if the hose
is not under pressure.
- ATTENTION: If the hose remained unwound for a long time unrolled or if it
rained sticking the hose on the ground, before winding with
the PTO, raise the hose by putting pieces of wood at regular
intervals under the hose.
Page 14
