Step 4NV200

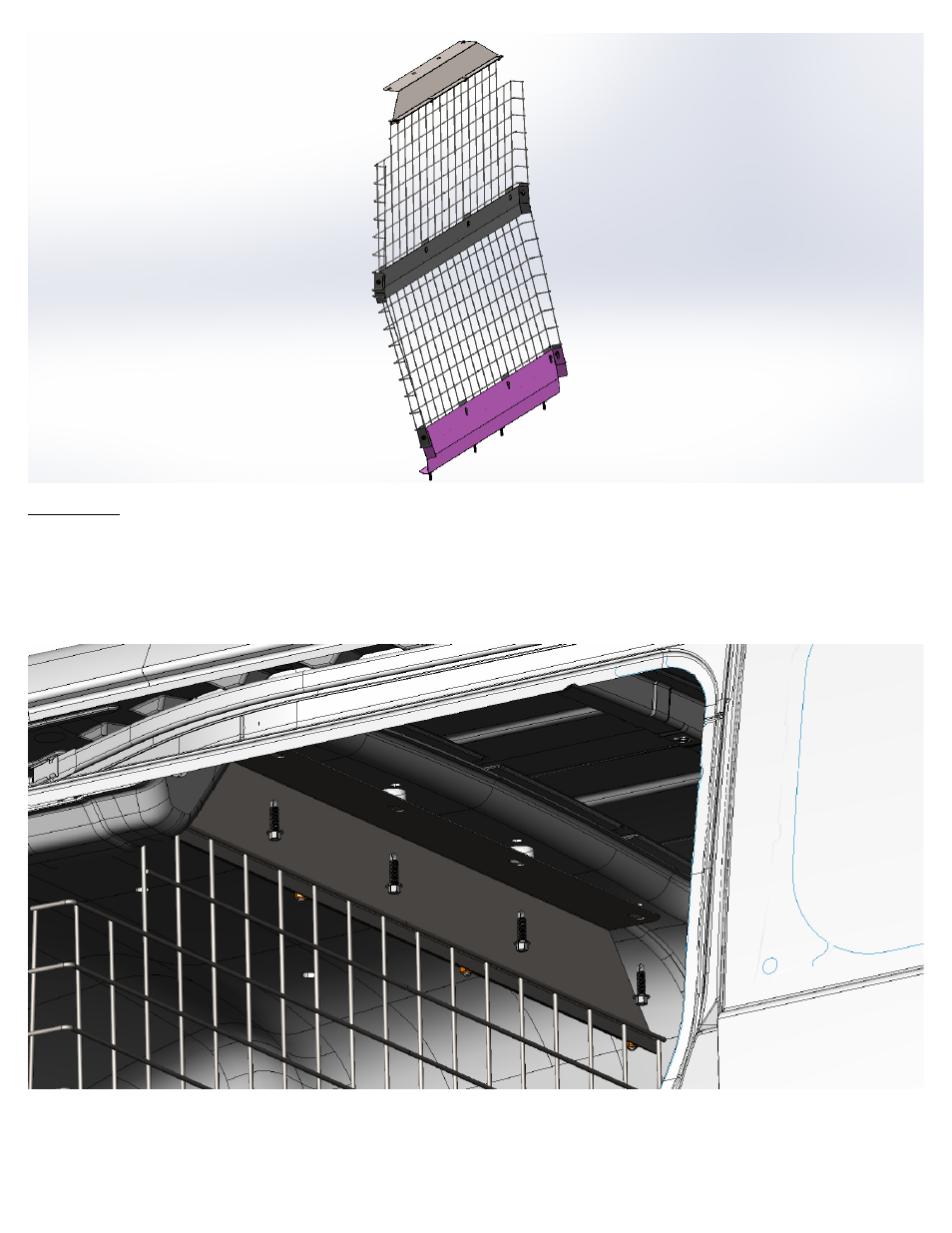

Remove rear headliner fasteners and factory “D” rings. Place Partition Assembly in van, line up the “Top Mount Panel” with the
holes in the headliner where you removed the fasteners. Loosely insert a 5/16”x1 ¼” self tapping screw in one of the side holes.
Use the nylon spacers for the center 2 holes between the “Top Mount Panel” and the headliner (you can put them under the
headliner for a better appearance) and start the other 3 5/16”x1 ¼” self tapping screws. DO NOT TIGHTEN fully until you get the
bottom bolts started.
