Kargo Master Transit Connect/Nv200 Wire Partition (40668) User Manual
Page 4
Step 3-2014 and Newer Transit Connect (NV200 go to Step 3NV)

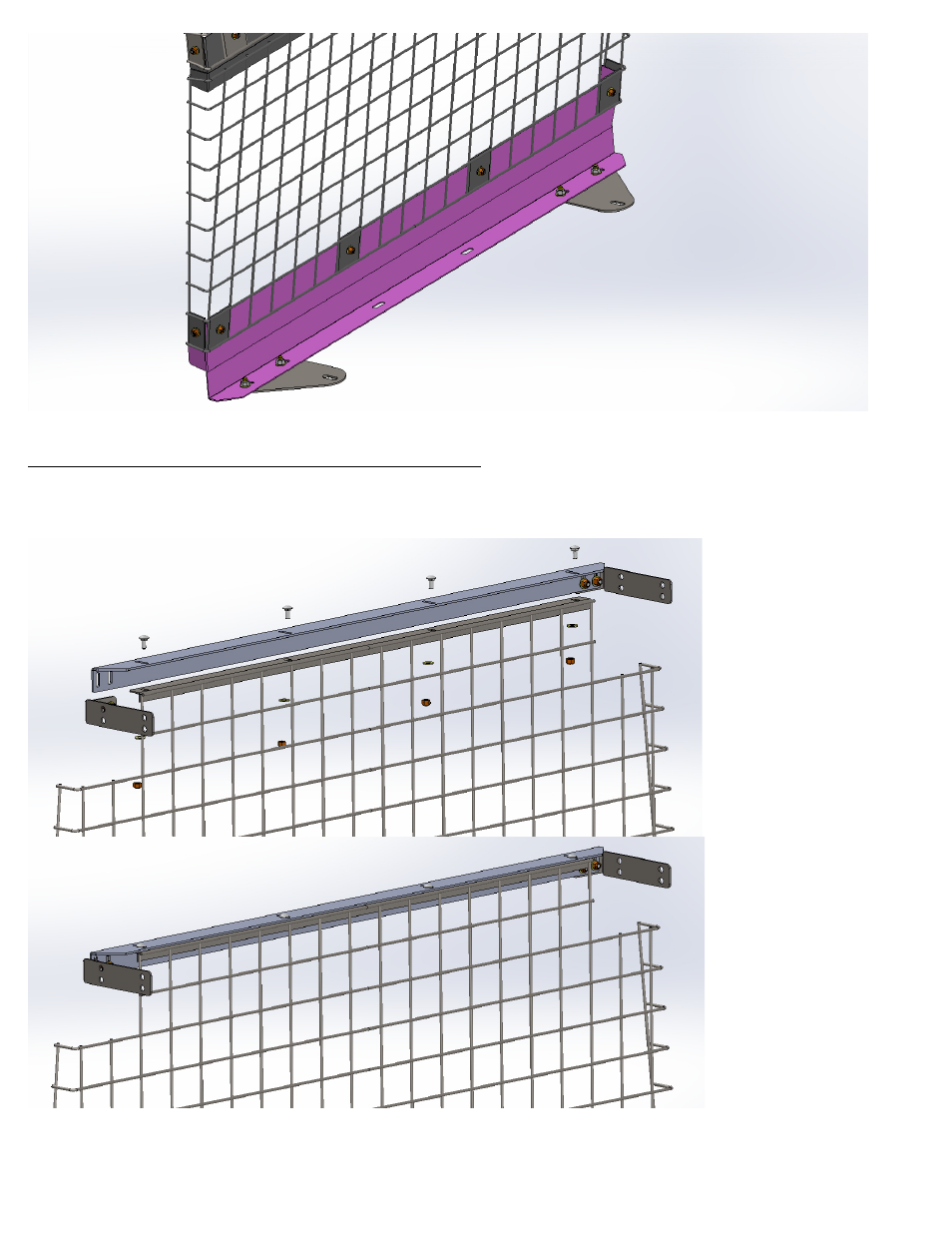

Bolt “Top Mounting Angle” to the top of the “Partition Assy.” With the angle going down and to the front of the van, using
¼”x3/4” Carriage bolts with flat washers and nyloc nuts as shown. Now attach the “Upper Mount Brackets” pointing to the rear
of the van using ¼”x3/4” Carriage bolts with flat washer and nyloc nuts as shown.
