Kargo Master Full Size Van Top Mount Ladder Rack User Manual
Page 5
3
Foot Mounting‐Ford Transit

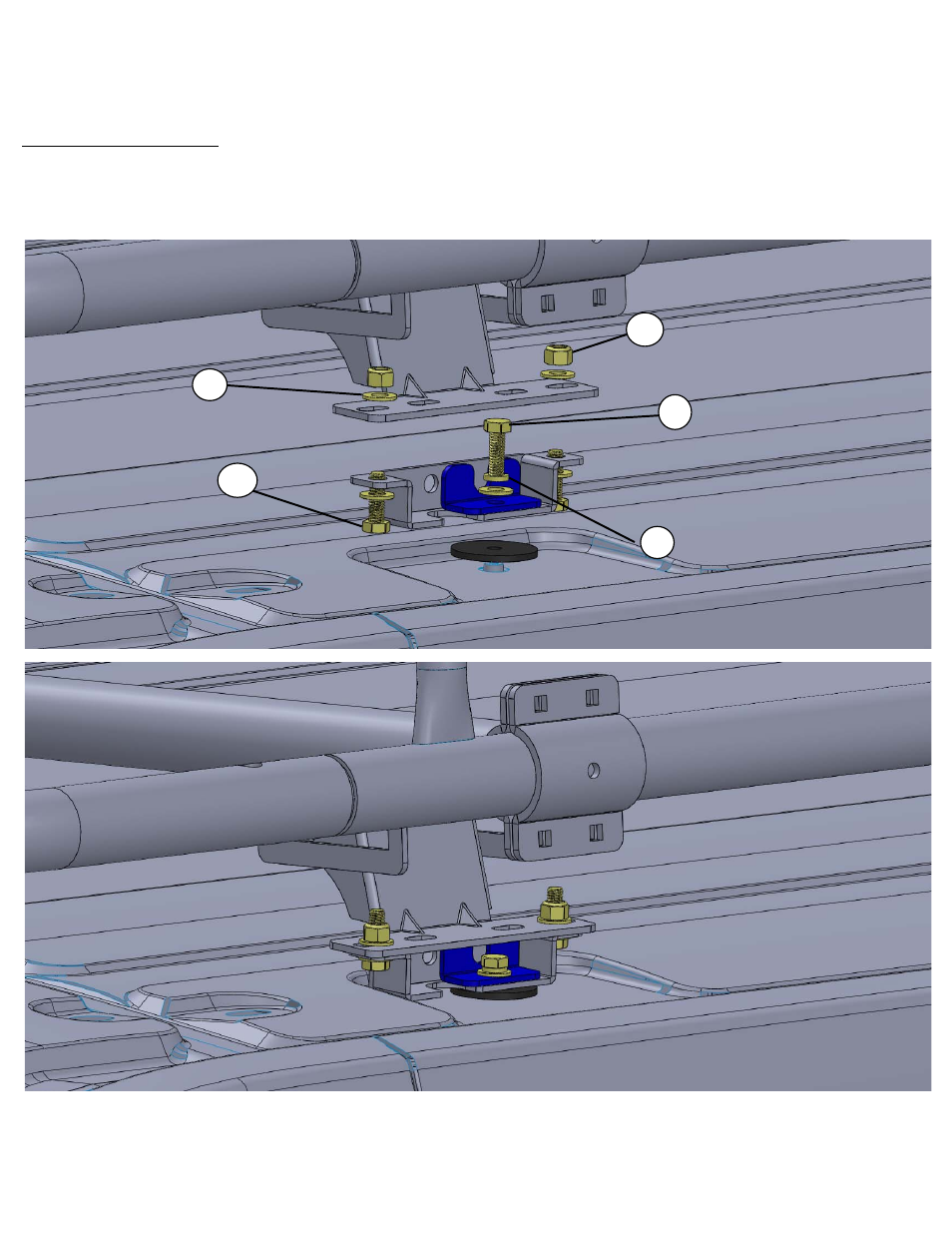

Install "Mounting Block" as shown on desired factory mounting locations, put "Rubber Washer (X)" between "Mounting Block (W)
& (O)" and Van roof to insure there are no leaks. Install on this location should use M8‐30 Hex bolt (F), Lock Washer (V), Flat
Washer (T), and Mount Clip (H)
U
C
F
V
T
