Step 8

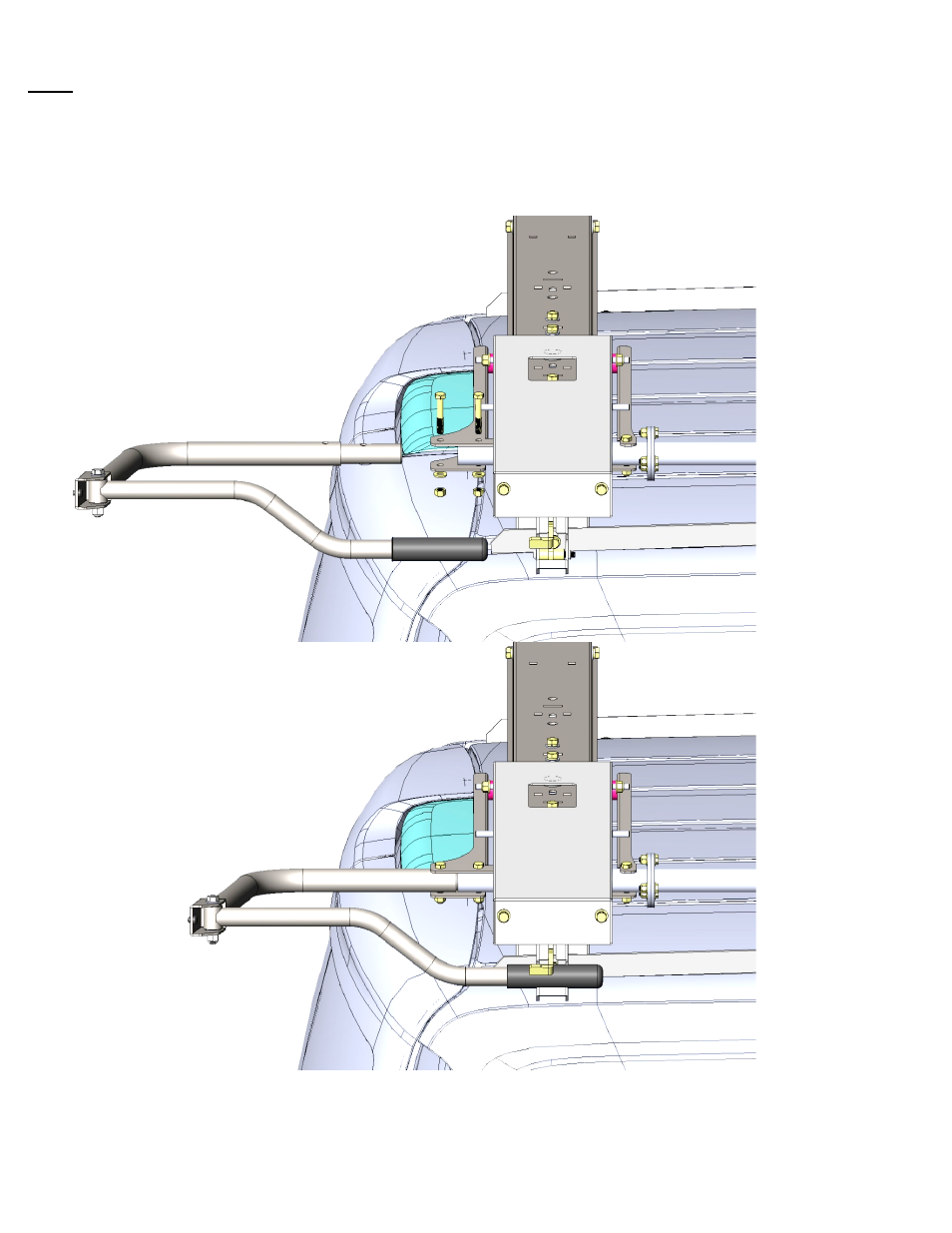

Next bolt the “Handle Assy.” Using 5/16”x2” bolts with a nyloc nut and flat washers as shown. BE SURE HANDLE WILL CLEAR THE
REAR DOORS during operation. If it doesn’t clear then the rails need to be mounted back farther on the van.
