Kargo Master SINGLE Drop Down Ladder Rack New / Old Transit Connect / NV200 User Manual
Page 3

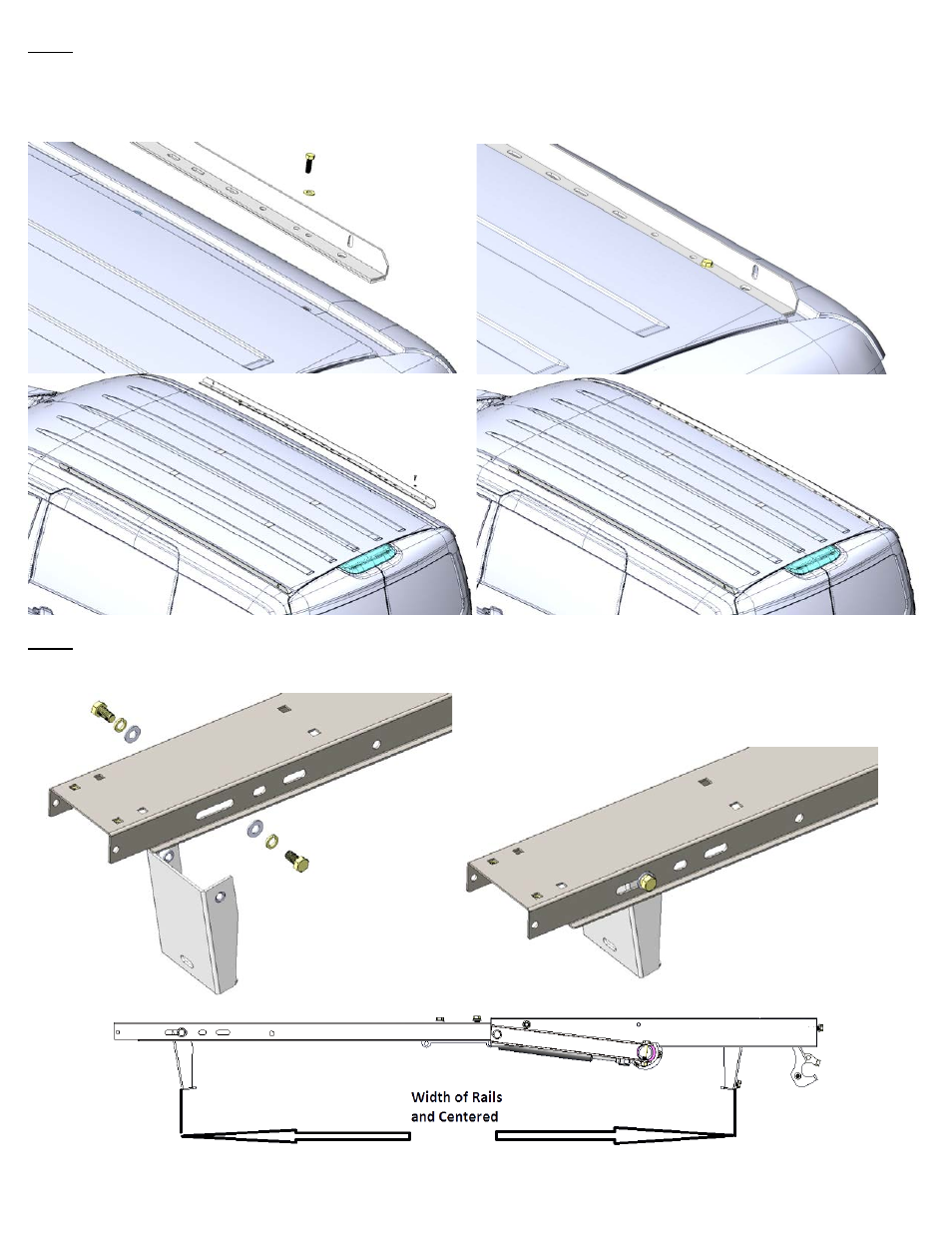

Step 1
Mount rail to roof using M8x25 Bolts with flat and lock washers (on 2014 Transit Connect use nyloc nut with fender washer and rubber
washer-Do not use lock washer). Mount rail so that the end of the rail is 1-2” approximately (usually the 2
nd
or 3
rd
hole-Use countersunk hole
for 2013 and older Transit Connect) from where the rear door opening is.
Step 2
Measure width the rail and bolt feet to bows at that approximate location as shown, DO NOT TIGHTEN at this point.
3
