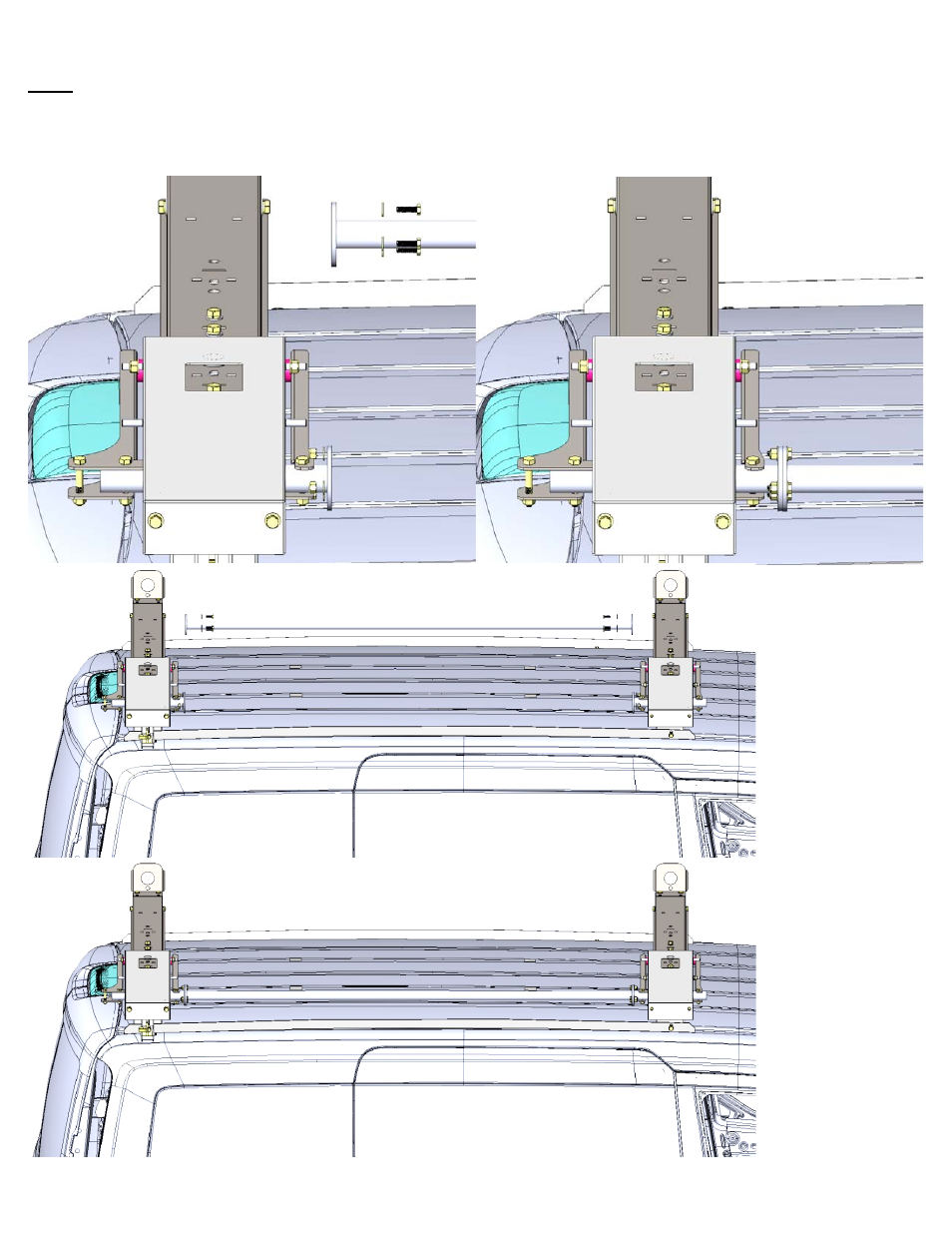

Step 7

Bolt the “Torque Tube” using ¼”x7/8” bolt with nyloc nut and flat washers. This sets the distance between the front and rear
assembly (71.5” center to center), be sure both sides measure the same to ensure proper operation.
