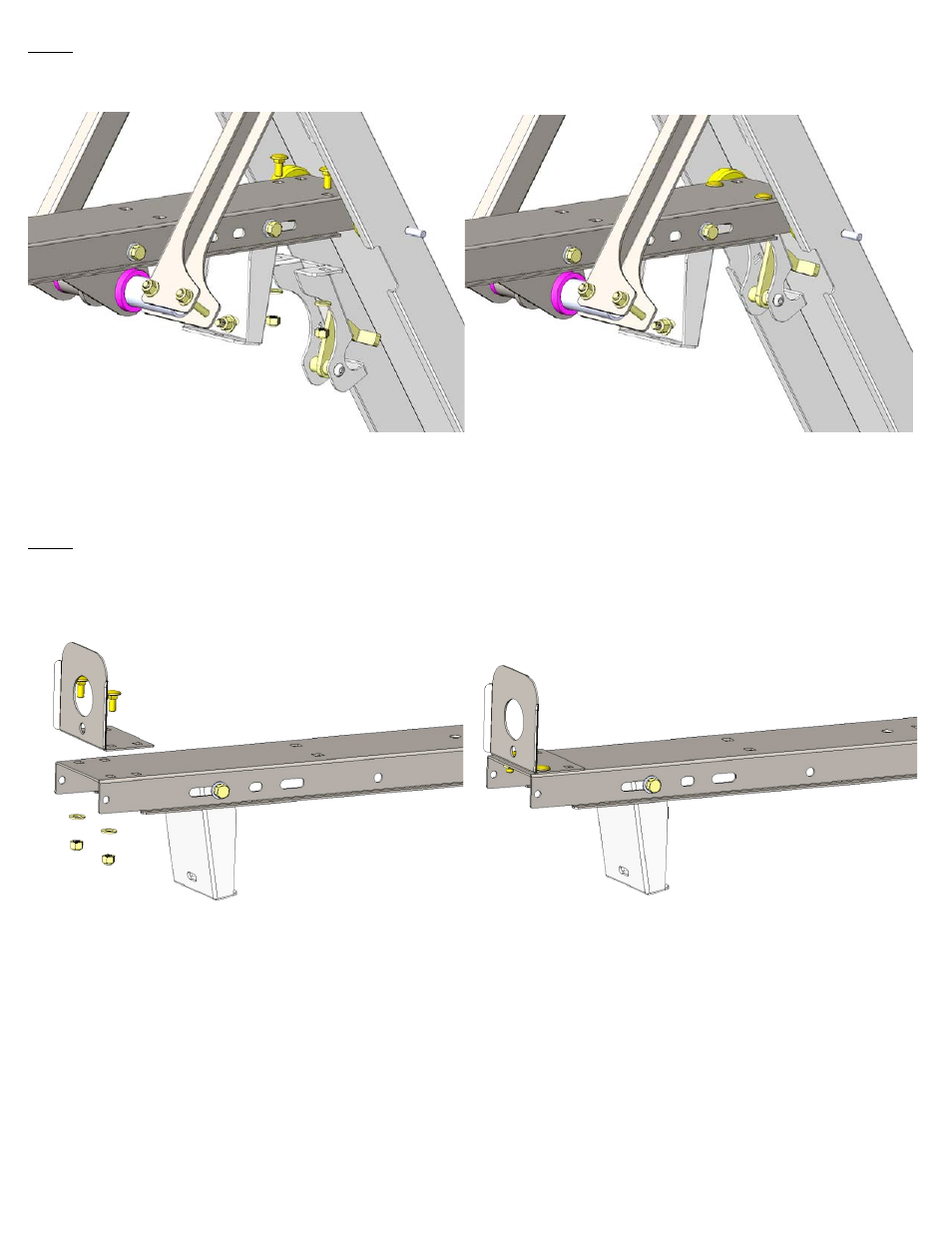

Step 3

Bolt “Latch” as shown using 5/16”x3/4” carriage bolts with nyloc nuts and flat washers.

Step 4

Next bolt the Angle bracket on the driver side of the bows using 5/16”x3/4” carriage bolts with nyloc nuts and flat washer as
shown.

4
