N
P
13

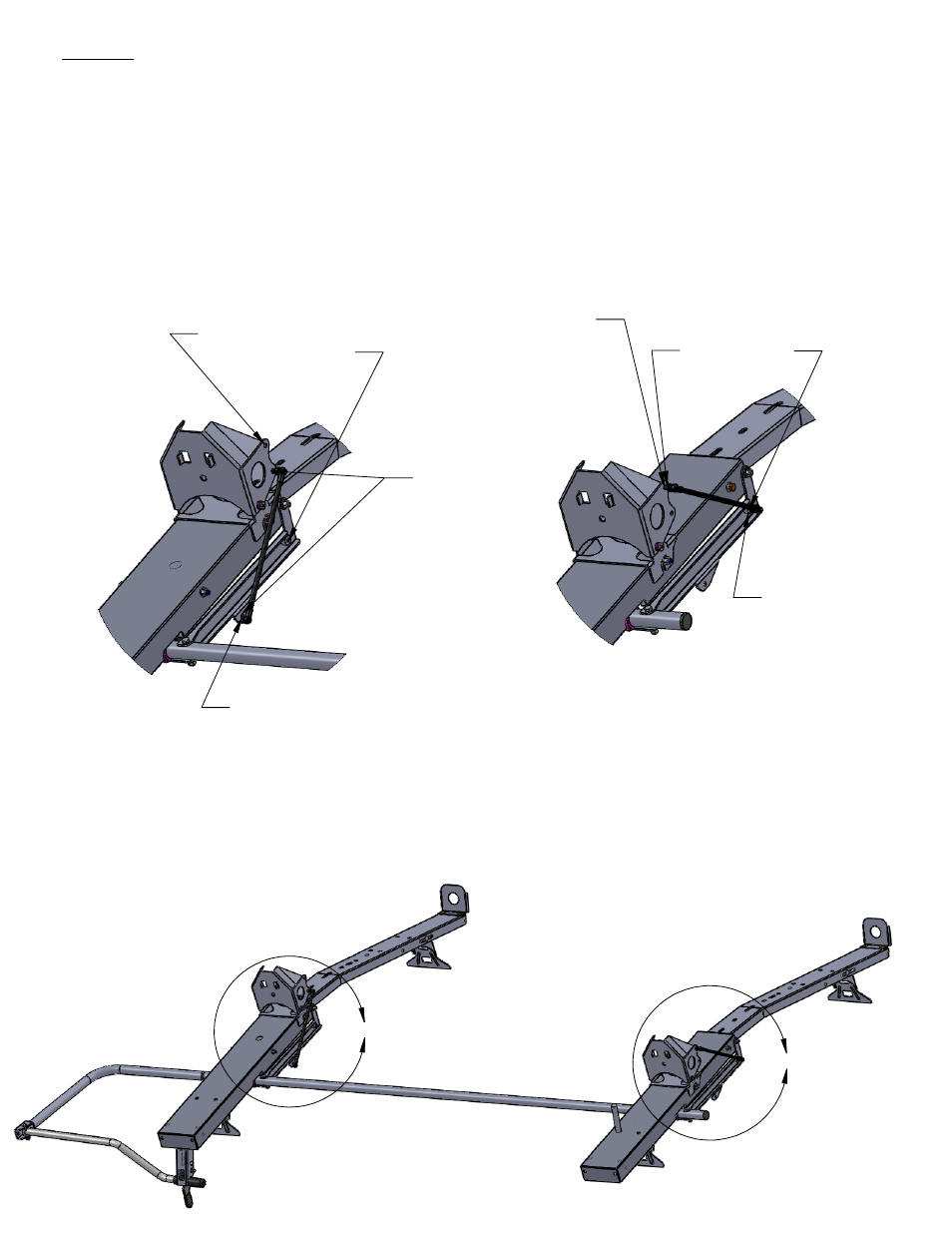

DETAIL N
SCALE 1 : 8
Location "B"
Step Ladder
Location "A"
Extension Ladder
5/16 Nylock Nut
5/16 Flat Washer
DETAIL P
SCALE 1 : 8
Location "A"
5/16 Nylock Nut
5/16 Flat Washer
Threaded Boss
FRONT BOW
Step 11
The Link Rods come from the factory with the ball studs attached. If the Hinge
Assembly is attached in Location "A", insert the Link Rod threaded ball studs through
the holes in the Hinge Assembly and the Ladder Pan Arms as shown in Detail P
below. Secure using 2 x 5/16" flat washer and lock nuts. If the Hinge Assembly is
attached in Location "B" (REAR Bow step ladder set-up), insert the Link Rod threaded
ball studs through the holes in the Hinge Assembly and the Ladder Pan Arms as
shown in Detail N below. Secure using 2 x 5/16" flat washer and lock nuts.
REAR BOW
