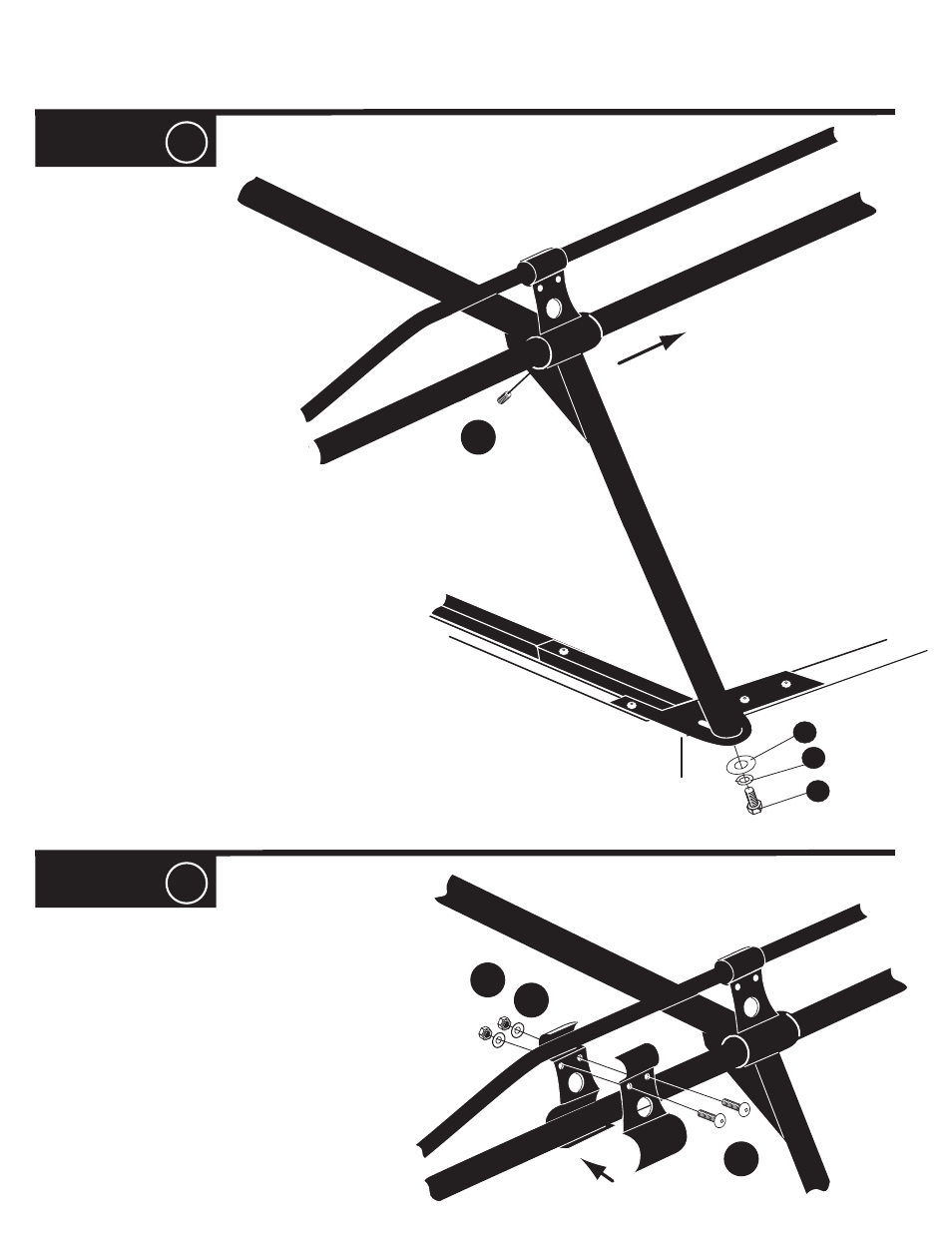

STEP 8
STEP 9
Pro 3-KS _1.1-12’06
#1 = Adjust the position of the front legs of the
rack so that distance between the center of the
front legs and the center of the back legs is equal
to the distance between the center of the Mount
Plate slots as determined in # 2 above.
Tighten the set screws P in the barrel of each front
leg, and tighten Top Clamp nuts N. Place the rack
on the Mount Plates, center, and attach rack to
Mount Plates using bolts A, lock washers O and
flat washers H.
#1 = Attach the front SUPPORT
UPRIGHT where the 1” tube begins
to bend downward, then...
TIGHTEN DOWN EVERYTHING AND....
THAT’S IT!
You’re ready to LOAD & GO!
