Kargo Master Pro III Steel Ladder Rack – Without A Camper Shell (80020) - Manual (Page 7)

Pro3&4 _4.1
E
N
K

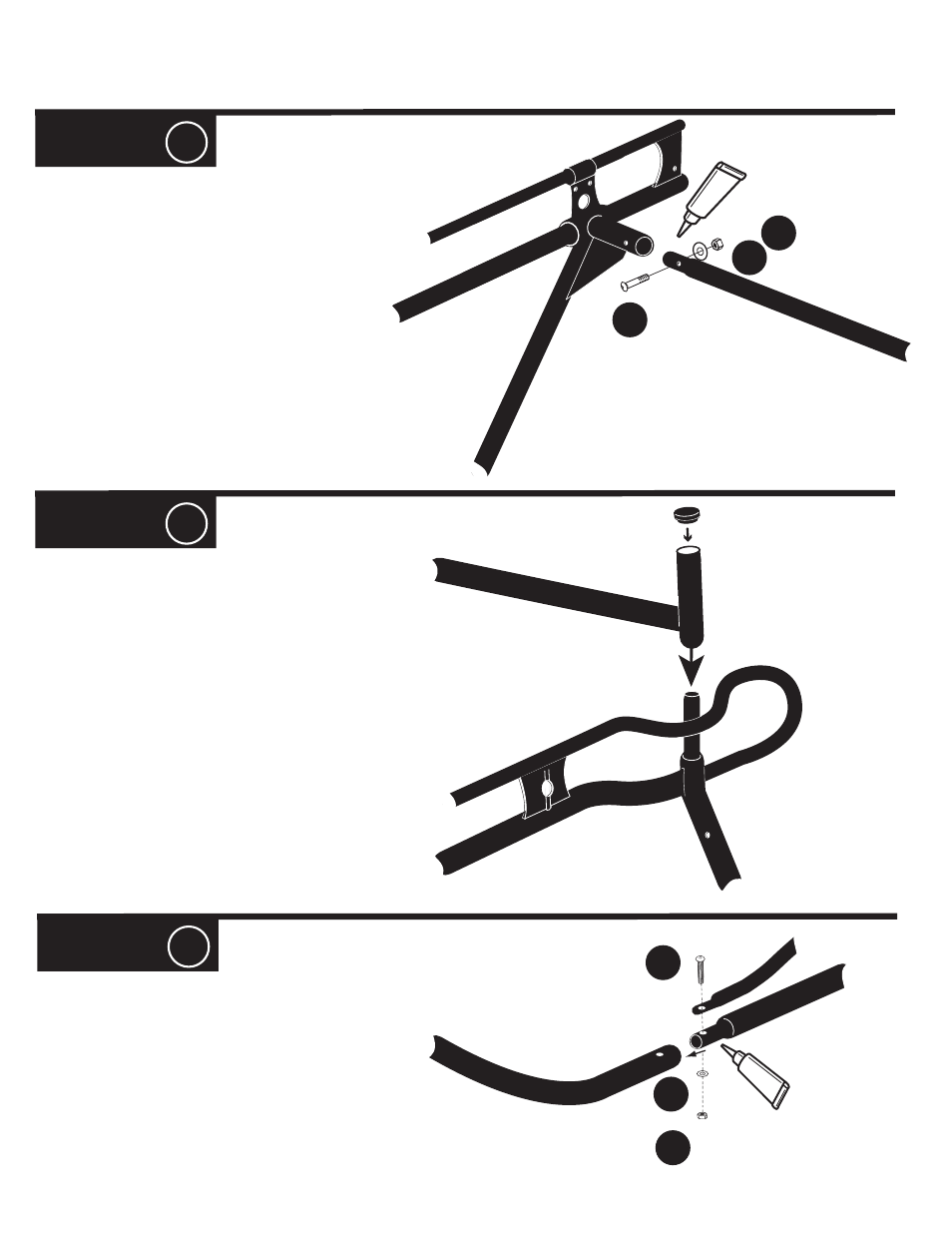

STEP 6
#1 = Cover entire swedge joints with goop
sealant and insert the CENTER CROSS
BAR into the SIDE RAIL CUPS and attach
with bolts E, washers K and lock nuts N.
#1 = Insert PLASTIC CAPS onto the rear
crossbar uprights, (the tall side of the tube).
Slide the REAR CROSS BAR into the REAR
LEG POSTS at the top, as shown.
STEP 8
#1 = Cover entire swedge joints with
goop sealant and slide FRONT CROSS
BAR onto side rails and bolt together with
bolts B, flat washer H, and jam nut L.
