Kargo Master Pro III Steel Ladder Rack – Without A Camper Shell (80020) - Manual (Page 4)

Pro3&4 _4.1
#1=
STEP 1
T
R
Q
S
TRUCKs’
BEDRAIL
Front
Stake
Pocket
T-nut
Bed Rail Clamp
FOOTPLATE
(front)

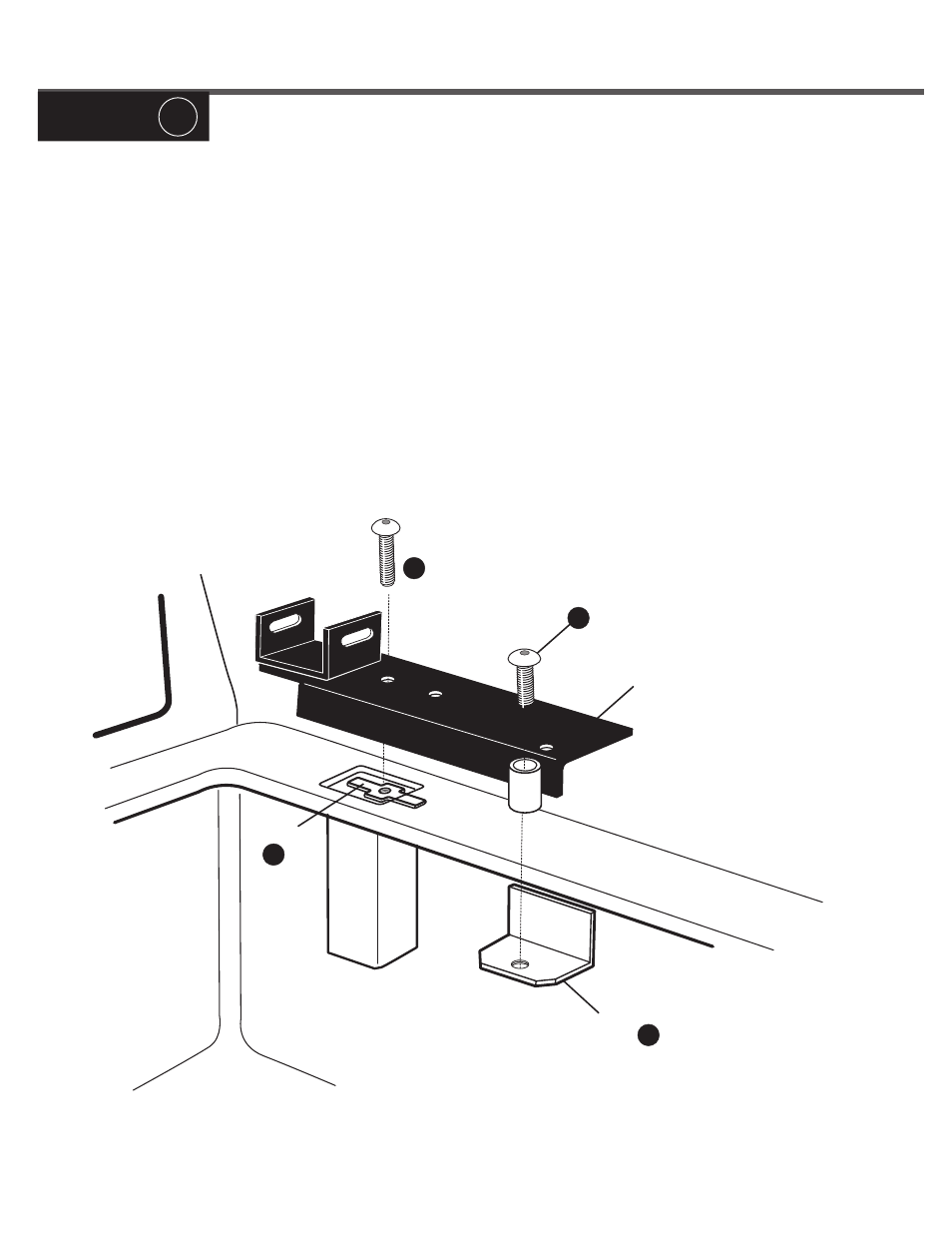

Position FRONT FOOTPLATES on the truck bedrail, as far
forward as possible. Determine which pre-drilled hole (if any) falls over
the stake pocket. If none of the pre-drilled holes fall over the stake
pocket, mark and drill a hole in the foot plate that is approximately over
the center of the stake pocket. Put bolt T through FOOTPLATE and start T Nut Q
as shown. Maneuver T Nut Q inside the stake pocket, push the FOOTPLATE forward
against the bulkhead, and tighten the T nut up against the underside of the
truck bed rail. Secure the rear of the front FOOTPLATE to the bedrail using
Bolt S and Bed Rail Clamp R as shown.
Note: If you prefer to mount the FOOTPLATES by drilling through the truck
bedrail, locate the FOOTPLATES as per above, and attach using included
fasteners D,K & M . We recommend using the pre-drilled hole at the rear
of the FOOTPLATES. You will have to locate and drill a second hole in the
FOOTPLATE, get as close to the leg as possible. Be sure you can access the nut.
TRUCK
CAB
