INSIDE BED W

ALL

#2

=

Center RACK over bed and tighten FRONT

MOUNT BOLTS. On REAR MOUNT BOLTS be sure
LOCK PINS slide IN & OUT smoothly and freely
before tightening the rear BOLTS.

J

THAT'S IT!

You're ready to

use and enjoy your

KARGO MASTER

TRUCK RACK!

View full line of accessories available at

www.kargomaster.com

Part # 31040

#1

=

Tighten down ALL NUTS AND BOLTS, except LEG FOOTPLATES and CENTER CROSS BAR .

DO NOT OVER TIGHTEN ON DOUBLE WALL BED CONSTRUCTION, AS THIS MAY DEFORM THE

SHEET METAL OF THE PICKUP BED!

3/8"

3"

8

(OPTIONAL

BED SUPPORT)

STEP 9

©

2012 KARGO MASTER - Pro 2 12_1.1

#4

=

Modern truck beds are made from thin steel with

limited load bearing capacity. Approximately 75% of
the rack load is carried by the front legs. Because the
rack is wider at the bottom than the top, overhead
loads tend to push the bed walls down and apart.

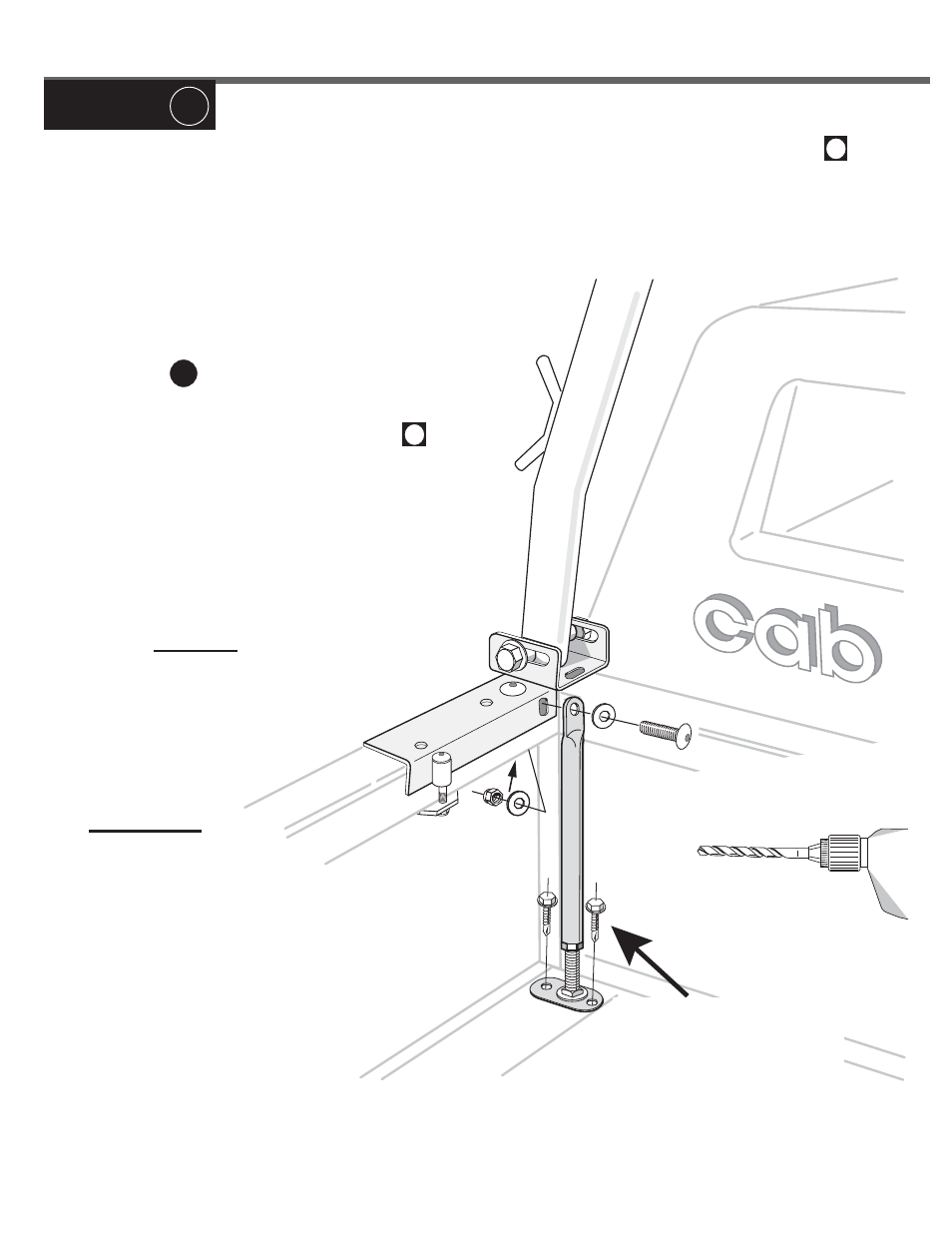

If you expect to carry heavy loads,
we strongly suggest that you purchase
and install OPTIONAL BED SUPPORTS
as shown below.

C

#3

=

Snug bolts in CENTER CROSS BAR .

C
