Order specifications:

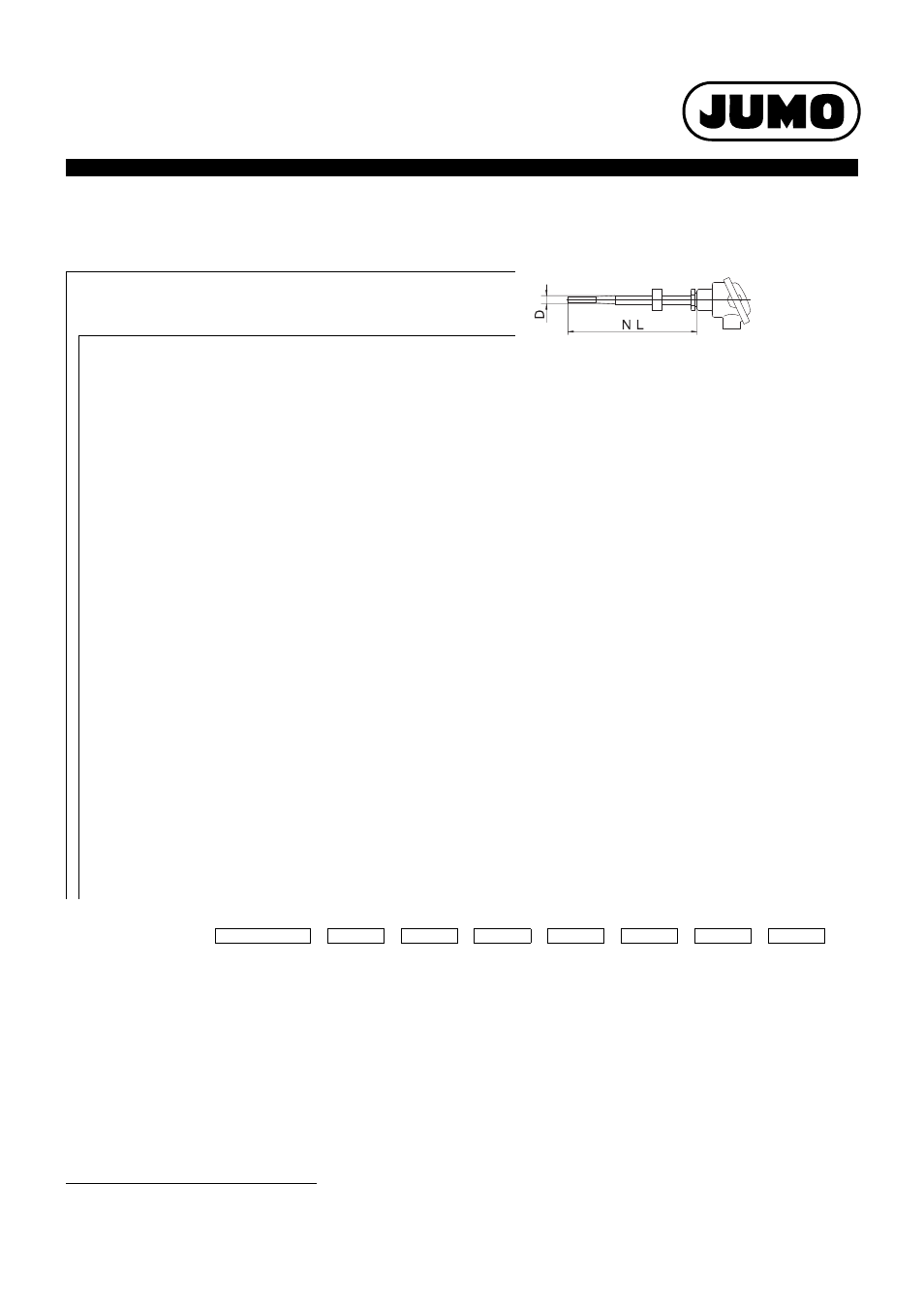

Push-in RTD temperature probe with connection head form B
(1) Basic type
902120/11
Push-in RTD temperature probes
with stepped sheath
(2) Operating temperature in °C
x
150
-200 to +600 °C
x
402
-50 to +400 °C (standard)
x
415
-50 to +600 °C
(3) Measuring insert
x
1001
1x Pt100 in 3-wire-circuit
x
1003
1x Pt100 in 2-wire circuit
x
1011
1x Pt100 in 4-wire circuit
x
2001
2x Pt100 in 3-wire circuit
x
2003
2x Pt100 in 2-wire circuit
(4) Tolerance class as per DIN EN 60751
x
1
Class B (standard)
x
2
Class A
(5) Sheath diameter D in mm
x
12
Ø 12 mm stepped down to 9 mm
(6) Nominal length NL in mm (100
≤ΝΛ
£
700)
x
180
180 mm, fitting length (EL) 100 to 140 mm
x
270
270 mm, fitting length (EL) 100 to 230 mm
x
290
290 mm, fitting length (EL) 100 to 250 mm
x
350
350 mm, fitting length (EL) 100 to 310 mm
x
410
410 mm, fitting length (EL) 100 to 370 mm
x
500
500 mm, fitting length (EL) 100 to 460 mm
x
...
Specification in plain text (50 mm steps)
(7) Process connection
x
000
without process connection
x
254
Sheath screw-connection G 1/2
(8) Extra codes
x
000
no extra code
x
320
terminal head Form BUZ
x
321
terminal head Form BUZH
x
322
Connection head form BBK
x
330
1x analog transmitter, 4 to 20 mA
2
output, data sheet 70.7030
x
331
1x transmitter programmable output 4 to 20 mA/20 to 4 mA
3
, data sheet 70.7010
x
333
1x analog transmitter, 0 to 10 V
2
output, data sheet 70.7030
x
334
2x analog transmitters, 4 to 20 mA
2
output, data sheet 70.7030
x
335
2x transmitter programmable output 4 to 20 mA/20 to 4 mA
3
, data sheet 70.7010
x
337
2x analog transmitters, 0 to 10 V
2
output, data sheet 70.7030
x
859
1x Wtrans B programmable head transducer with radio transmission, data sheet 70.7060
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
Order code
-
-
-
-
-
-
/
, ...
1
Order example
902120/11
-
402
-
1001
-
1
-
12
-
410
-
000
/
000
1
List extra codes in sequence, separated by commas.
2
Specify measuring range in plain text.
3
Specify measuring range and output signal in plain text.
