Temperature class Max. surface temperature
for the equipment 1
Ignition temperature of the
flammable materials
T1 450 °C  450 °C
T2 300 °C  300  450 °C
T3 200 °C  200  300 °C
T4 135 °C  135  200 °C
T5 100 °C  100  135 °C
T6 85 °C  85  100 °C
Table 2: Temperature classes
The surface heating itself is influenced by the design of the temperature probe, by the ambient conditions
(thermal coupling with the medium being measured) and the power that is applied. The self-heating of the
thermometer is characterized by the thermowell constant SK (in °C/W), which represents the increase in
surface temperature (in still air) above the ambient temperature as a function of the applied power. The
thermowell constant SK is determined by JUMO, and can be found in the attached data sheet/on the affixed
label. The user must determine whether the thermometer is suitable for the measurement application and
the connected equipment under the given conditions. The maximum permissible measured temperature at
the probe tip can be found from the following equation: T
S
= T
K
– P
i
× SK
T
S
Maximum permissible temperature at the probe tip
T
K
Maximum permissible surface temperature, depending on the temperature class
(as in the table, reduced by the safety reserve)
P
i
Power in the certified intrinsically safe circuit
SK Thermowell constant (see technical data sheet)

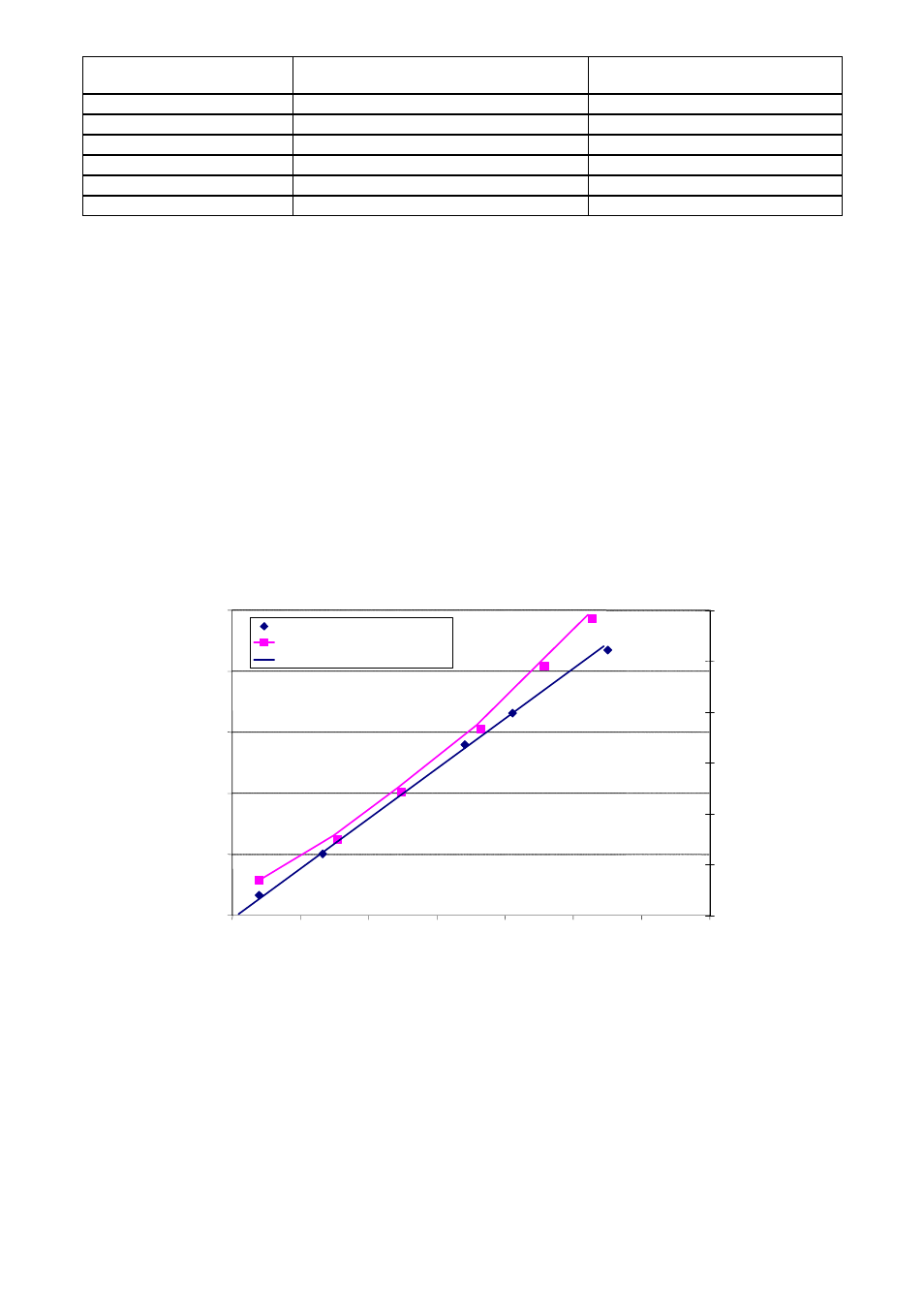

The following diagram illustrates an example of self-heating of the probe surface of a RTD temperature
probe, as a function of the applied power and thus the temperature arising within the probe.
(Self-heating is independent of the protection type, and also applies to the flameproof enclosure!)
SK = 80 °C/W
0.0
50.0
100.0
150.0
200.0
250.0
0 0.5 1 1.5 2 2.5 3 3.5
Power / W
In
cr
e
a
se
in
sur
fa
c
e
t
e
mp
er
a
tu
re
/
°
C
0
100
200
300
400
500
600
Int
er
n
al
pr
ob
e t
em
p
er
at
ur
e /
°
C
Surface temperature
Internal temperature
Linear (surface temperature)
Figure 1 : Self-heating of a Pt100 RTD temperature probe
-
______________________________________________________________________________________
_
1 Explanation
The following safety reserves must also be complied with:
Category 1: according to EN 1127-1:2011 Item 6.4.2 (hot surfaces): the temperature of any and all surfaces of equipment ... used in
Zone 0 ... that can come into contact with a potentially explosive atmosphere ... must not exceed ... 80 % of the ignition temperature!
 Temperature class minus 20 %!
An additional reduction must be applied: 10 °C for temperature classes T1 and T2, 5 °C for classes T3 – T6.
Category 2: an additional safety reserve (reduction) must be applied: 10 °C for temperature classes T1 and T2, 5 °C for classes T3 –
T6.
- 4 -
