Data sheet 902044

Page 8/8

2014-05-16/00534480

JUMO GmbH & Co. KG

Telefon: +49 661 6003-722/724

Hausadresse:

Moritz-Juchheim-Straße 1, 36039 Fulda, Germany

Telefax: +49 661 6003-601/688

Lieferadresse:

Mackenrodtstraße 14, 36039 Fulda, Germany

E-Mail:

[email protected]

Postadresse:

36035 Fulda, Germany

Internet: www.jumo.net

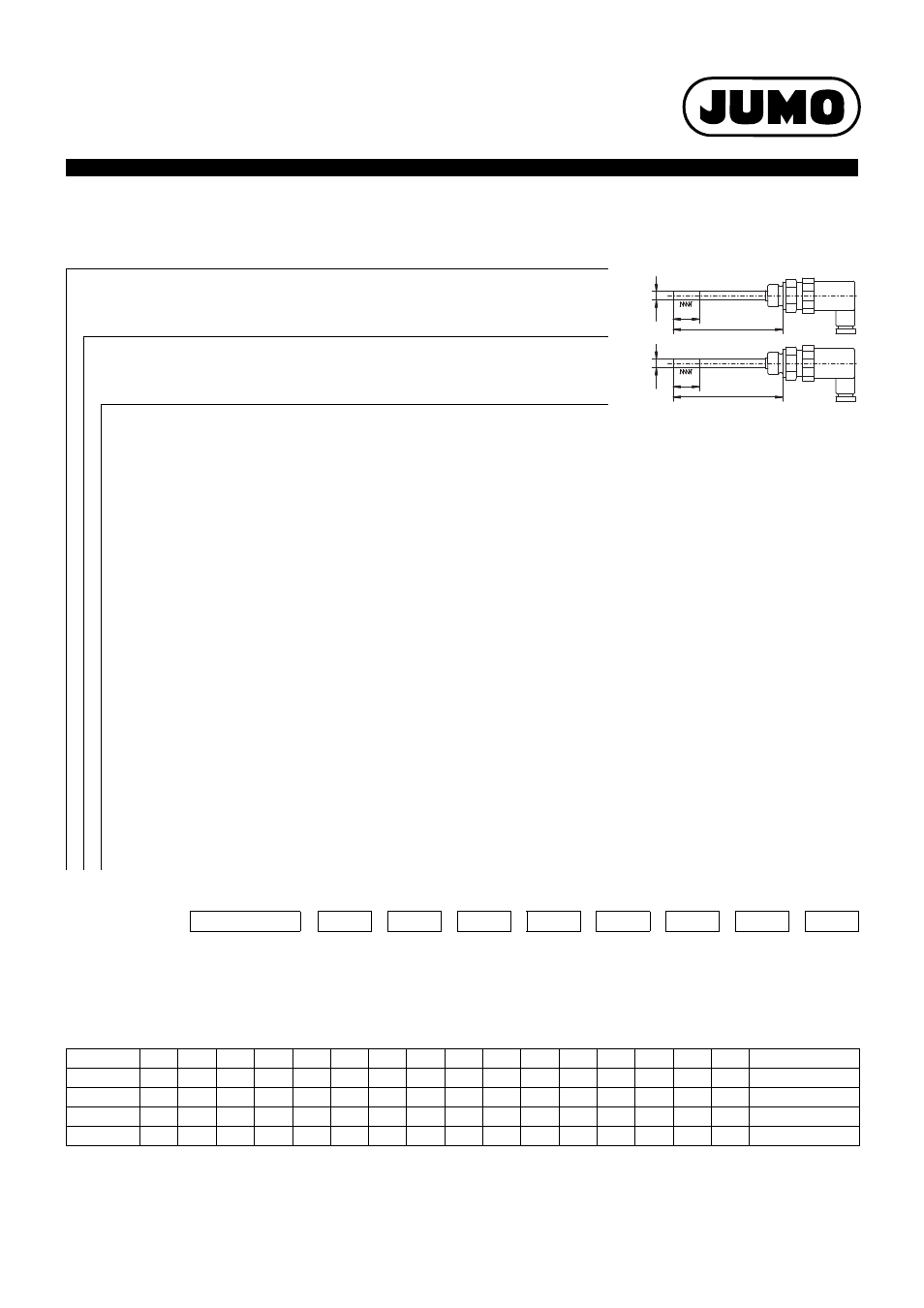

Order details

Stock versions

(1)

Basic type

902044/80

Screw-in RTD temperature probe
with connection socket Pg9
according to DIN EN 175301-803 (DIN 43650)
and flexible screw connection

902044/81

Screw-in RTD temperature probe
with connection socket Pg11
according to DIN EN 175301-803 (DIN 43650)
and flexible screw connection

(2)

Operating temperature in °C

x x

380

-50 to +200 °C

(3)

Measuring insert

x x

1003

1 × Pt100 in 2-wire circuit

x x

1011

1 × Pt100 in 4-wire circuit

x x

2003

2 × Pt100 in 2-wire circuit

(4)

Tolerance class according to DIN EN 60751

x x

1

Class B (standard)

x x

2

Class A

(5)

Protection tube diameter D in mm

x x

8

Ø 8 mm

(6)

Insertion length EL in mm (50 to 800 mm)

x x

50

50 mm

x x

100

100 mm

x x

150

150 mm

x x

200

200 mm

x x

250

250 mm

x x

. . .

Please specify in plain text (50 mm increments)

(7)

Process connection

x x

104

Screw connection G 1/2

(8)

Protection tube material

x x

26

Stainless steel 1.4571

(9)

Extra code

x x

000

Without

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

Order code

-

-

-

-

-

-

-

/

Order example

902044/80

-

380

-

1003

-

1

-

8

-

100

-

104

-

26

/

000

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

Part no.

902044/15

-

380

-

1003

-

1

-

6

-

100

-

104

-

26

/

000 00600899

902044/20

-

380

-

1003

-

1

-

8

-

50

-

104

-

26

/

000 00365259

902044/20

-

380

-

1003

-

1

-

8

-

100

-

104

-

26

/

000 00368414

902044/20

-

380

-

1003

-

1

-

8

-

150

-

104

-

26

/

000 00368416

EL

D

15

EL

D

15
