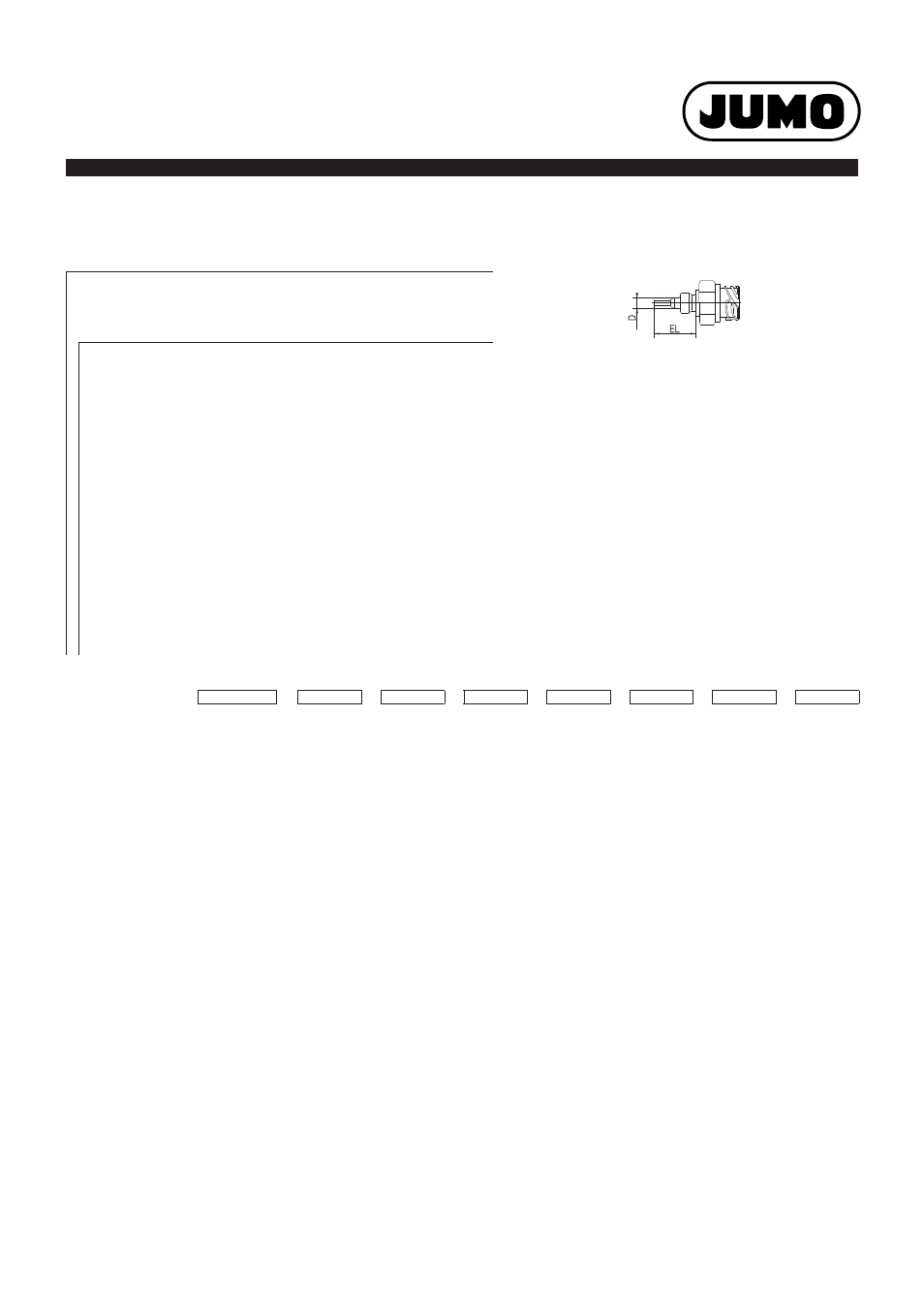

background image

Data sheet 902040

Page 6/6

2012-01-05/00311470

JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany

Phone:

+49 661 6003-0

Fax:

+49 661 6003-607

E-mail:

[email protected]

Internet:

www.jumo.net

JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:

+44 1279 635262

E-mail:

[email protected]

Internet: www.jumo.co.uk

JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone: 315-697-5866

1-800-554-JUMO

Fax:

315-697-5867

E-mail:

[email protected]

Internet: www.jumo.us

Order details:

Screw-in RTD temperature probe with bayonet connector according to DIN 72585

(1) Basic type

902040/15

Screw-in RTD temperature probe
with bayonet connector according to DIN 72585

(2) Operating temperature in °C

x

382

-50 to +220 °C

(3) Measuring insert

x

1003

1 x Pt100 in 2-wire circuit

x

1004

1 x Pt500 in 2-wire circuit

x

1005

1 x Pt1000 in 2-wire circuit

x

9999

1 x PTC or NTC temperature probes in 2-wire circuit (specify in plain text)

(4) Tolerance class according to DIN EN 60751

x

0

Technical data of PTC or NTC temperature probes

x

1

Class B (Standard)

x

2

Class A

(5) Protection tube diameter D in mm

x

7.5

Ø 7.5 mm, stepped down to 4 mm

(6) Fitting length EL in mm

x

29

29 mm

(7) Process connection

x

121

Screw connection M14x1.5

(8) Protection tube material

x

20

Stainless steel

x

46

Brass

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

Order code

-

-

-

-

-

-

-

Order example

902040/15

-

382

-

1003

-

1

-

7.5

-

29

-

121

-

20

Stock versions

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

Part no.

902040/10

-

387

-

1003

-

1

-

7.5

-

29

-

121

-

20

00446901

902040/10

-

387

-

1003

-

1

-

7.5

-

29

-

121

-

46

00447301

902040/10

-

387

-

1003

-

1

-

7.5

-

25

-

141

-

20

00446894

902040/10

-

387

-

1003

-

1

-

7.5

-

25

-

141

-

46

00447305

902040/12

-

370

-

1003

-

1

-

7.5

-

29

-

121

-

20

00542501

902040/15

-

382

-

1005

-

1

-

7,5

-

29

-

121

-

46

00487533

902040/17

-

370

-

1003

-

1

-

7,5

-

29

-

121

-

20

00537629

Accessories

Part no.

Coupling set, 6 pieces, Junior-Power-Timer

00089930

Coupling set, 4 pieces, Junior-Power-Timer

00201426

Coupling for basic type 902040/10 with a 2.5 m long connection cable, silicone-insulated

00308880

Coupling for basic type 902040/15

00439715
