Data sheet 902040

Page 4/6

2012-01-05/00311470

JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany

Phone:

+49 661 6003-0

Fax:

+49 661 6003-607

E-mail:

[email protected]

Internet:

www.jumo.net

JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:

+44 1279 635262

E-mail:

[email protected]

Internet: www.jumo.co.uk

JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone: 315-697-5866

1-800-554-JUMO

Fax:

315-697-5867

E-mail:

[email protected]

Internet: www.jumo.us

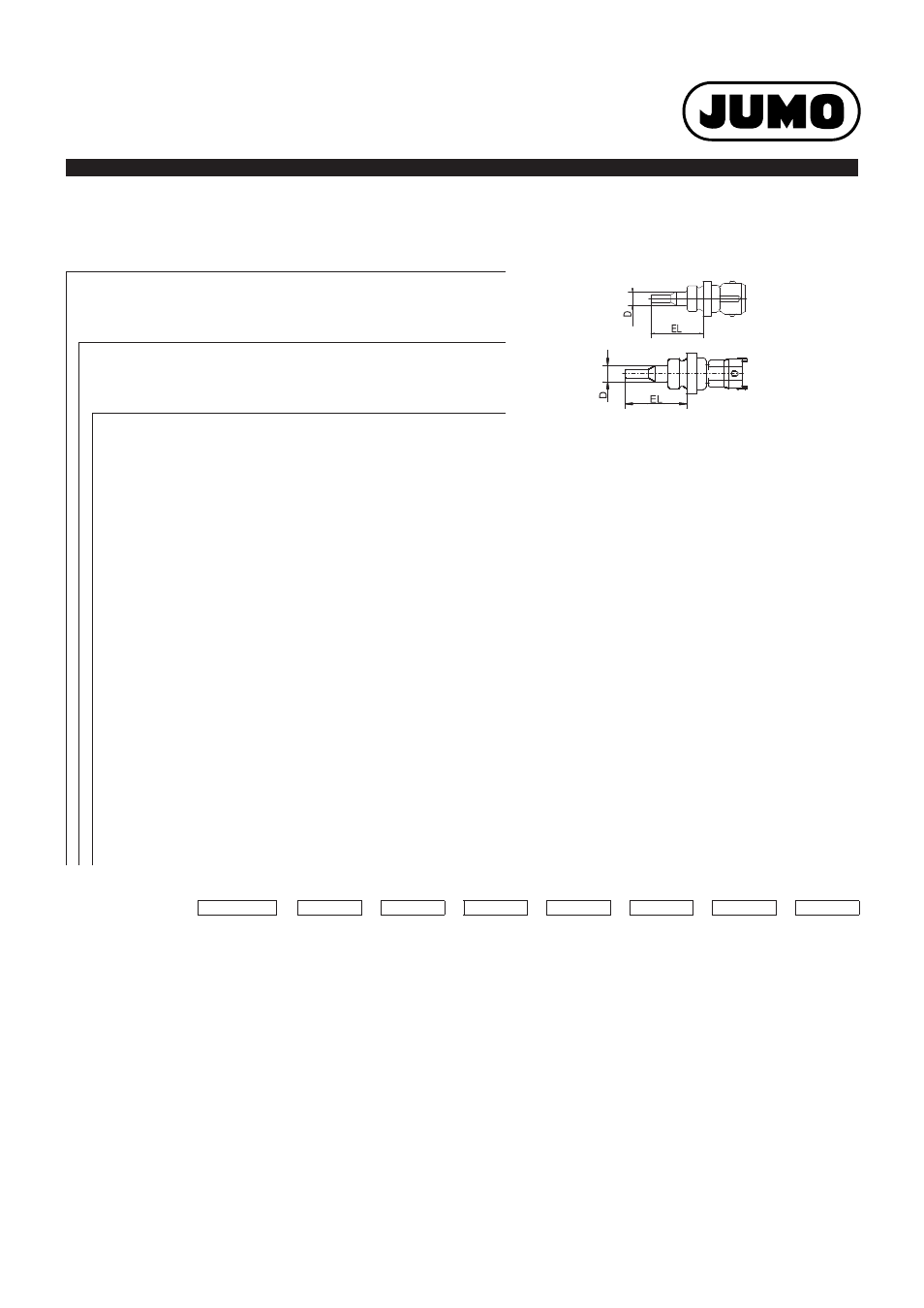

Order details:

Screw-in RTD temperature probe with AMP plug connector or Bosch compact connector 1.1

(1) Basic type

902040/10

Screw-in RTD temperature probe
with AMP plug connector (Junior-Power-Timer)

902040/17

Screw-in RTD temperature probe
with Bosch compact connector 1.1, 2-pin

(2) Operating temperature in °C

x x

370

-50 to +150 °C

x

387

-50 to +270 °C (short-term +300 °C)

(3) Measuring insert

x x

1003

1 x Pt100 in 2-wire circuit

x x

1004

1 x Pt500 in 2-wire circuit

x x

1005

1 x Pt1000 in 2-wire circuit

x x

9999

1 x PTC or NTC temperature probes in 2-wire circuit (specify in plain text)

(4) Tolerance class according to DIN EN 60751

x x

0

Technical data of PTC or NTC temperature probes

x x

1

Class B (Standard)

x x

2

Class A

(5) Protection tube diameter D in mm

x x

6

Ø 6 mm (Standard for EL = 60 mm)

x x

7.5

Ø 7.5 mm, stepped down to 4 mm

(6) Fitting length EL in mm

x x

25

25 mm

x x

26

26 mm

x x

29

29 mm

x x

60

60 mm

(7) Process connection

x x

102

Screw connection G 1/4

x x

103

Screw connection G 3/8

x x

114

Screw connection M10x1

x x

118

Screw connection M12x1.5

x x

121

Screw connection M14x1.5

x x

141

Screw connection NPTF 1/8"-27

(8) Protection tube material

x x

20

Stainless steel

x x

46

Brass

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

Order code

-

-

-

-

-

-

-

Order example

902040/10

-

387

-

1003

-

1

-

6

-

29

-

103

-

20
