Order details:

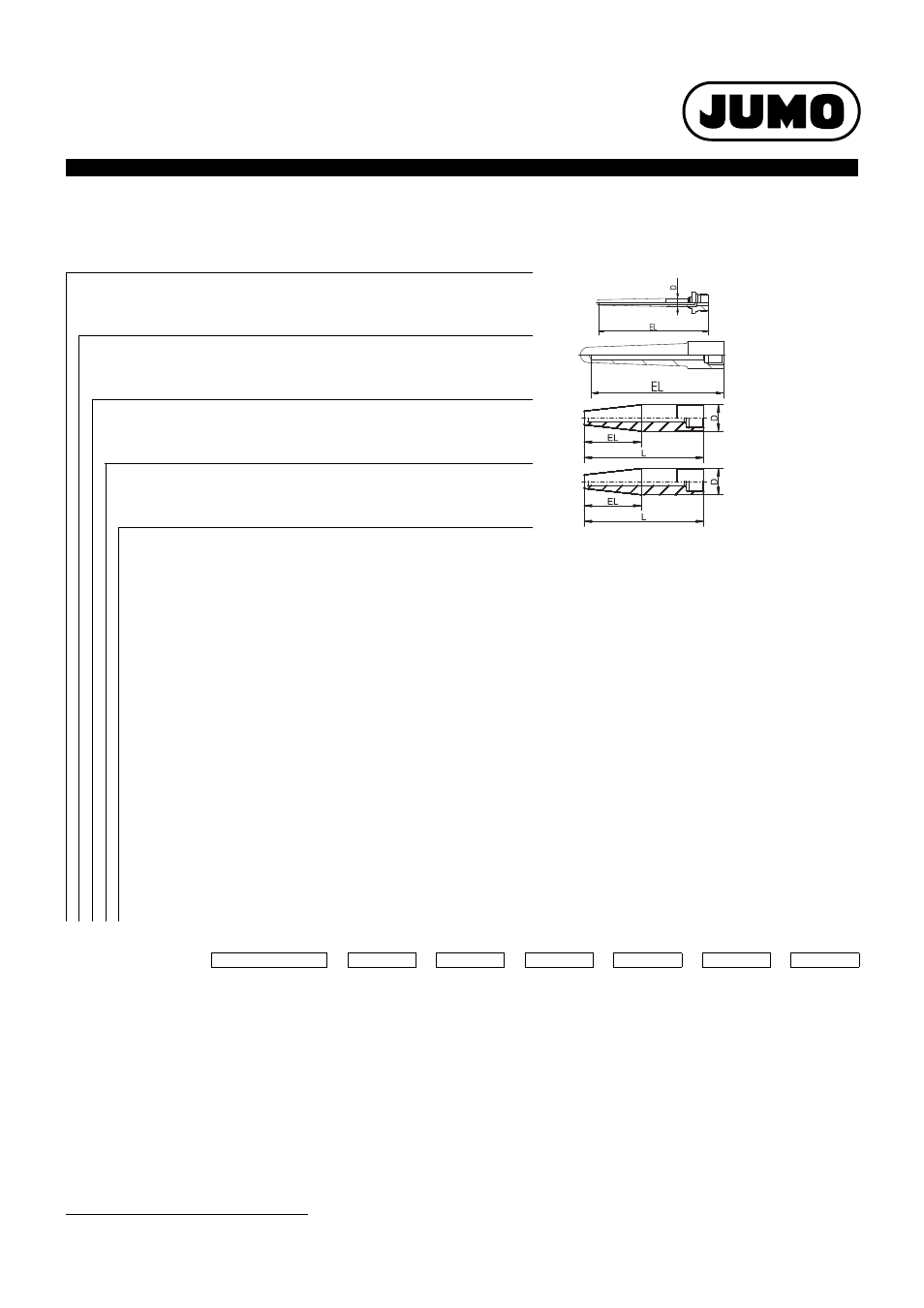

Weld-in pockets
(1) Basic type
909712/15
Weld-in pocket, tapered,
with male thread G 3/4 (3/4" pipe)
and acceptance test certificate 3.1 material
909712/20
Weld-in pocket, tapered,
with female thread G 1/2 (1/2" pipe)
(DIN 16179 Form S)
909712/50
Weld-in pocket,
with female thread M 18x1.5
(DIN 43763 Form D1/D2)
909712/51
Weld-in pocket,
with female thread M 18x1.5
(DIN 43763 Form D4/D5)
(2) Operating temperature in °C (also see loading diagram)
x x x x
848
0 to 400 °C
x x x
854
0 to 500 °C
(3) Sheath diameter D in mm
x
12
outside diameter 12 mm stepped down to 8 mm/inside diameter 6.5 mm
x x
24
outside diameter 24 mm stepped down to 12.5 mm/inside diameter 7 mm
x
25
outside diameter 25 mm stepped down to 17 mm/inside diameter 11 mm
(4) Fitting length EL in mm
x
65 (140)
65 mm (L = 140 mm)
1
(Form D1)
x
65 (200)
65 mm (L = 200 mm) (Form D4)
x
100
100 mm
x
1235 (200)
125 mm (L = 200 mm) (Form D2)
x
125 (260)
125 mm (L = 260 mm) (Form D5)
x x
160
160 mm
x
190
190 mm
x
220
220 mm
x
250
250 mm
(5) Process connection
x x x x
000
weld-in pocket
(6) Sheath material
x
03
steel 1.0305
x x x
26
stainless steel 1.4571 (max. 400 °C)
x x x
36
steel 1.7335 (max. 500 °C)
(7) Extra codes
x x x
000
none
x x x
374
acceptance test certificate 3.1 material
(1)
(2)
(3)
(4)
(5)
(6)
(7)
Order code
-
-
-
-
-
/
Order example
909712/15
-
848
-
12
-
100
-
000
-
03
/
374
1
Example: 65 mm (L = 140 mm); 65 mm = EL taper, 140 mm = L pocket.
