Data Sheet 90.9740 (90.9727)

Page 3/3

2009-11-12/00395643

JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14,

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany

Phone:

+49 661 6003-0

Fax:

+49 661 6003-607

E-mail:

[email protected]

Internet:

www.jumo.net

JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow - Essex CM20 2DY, UK
Phone: +44 1279 63 55 33
Fax:

+44 1279 63 52 62

E-mail:

[email protected]

Internet: www.jumo.co.uk

JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone:

315-697-JUMO
1-800-554-JUMO

Fax:

315-697-5867

E-mail:

[email protected]

Internet: www.jumo.us

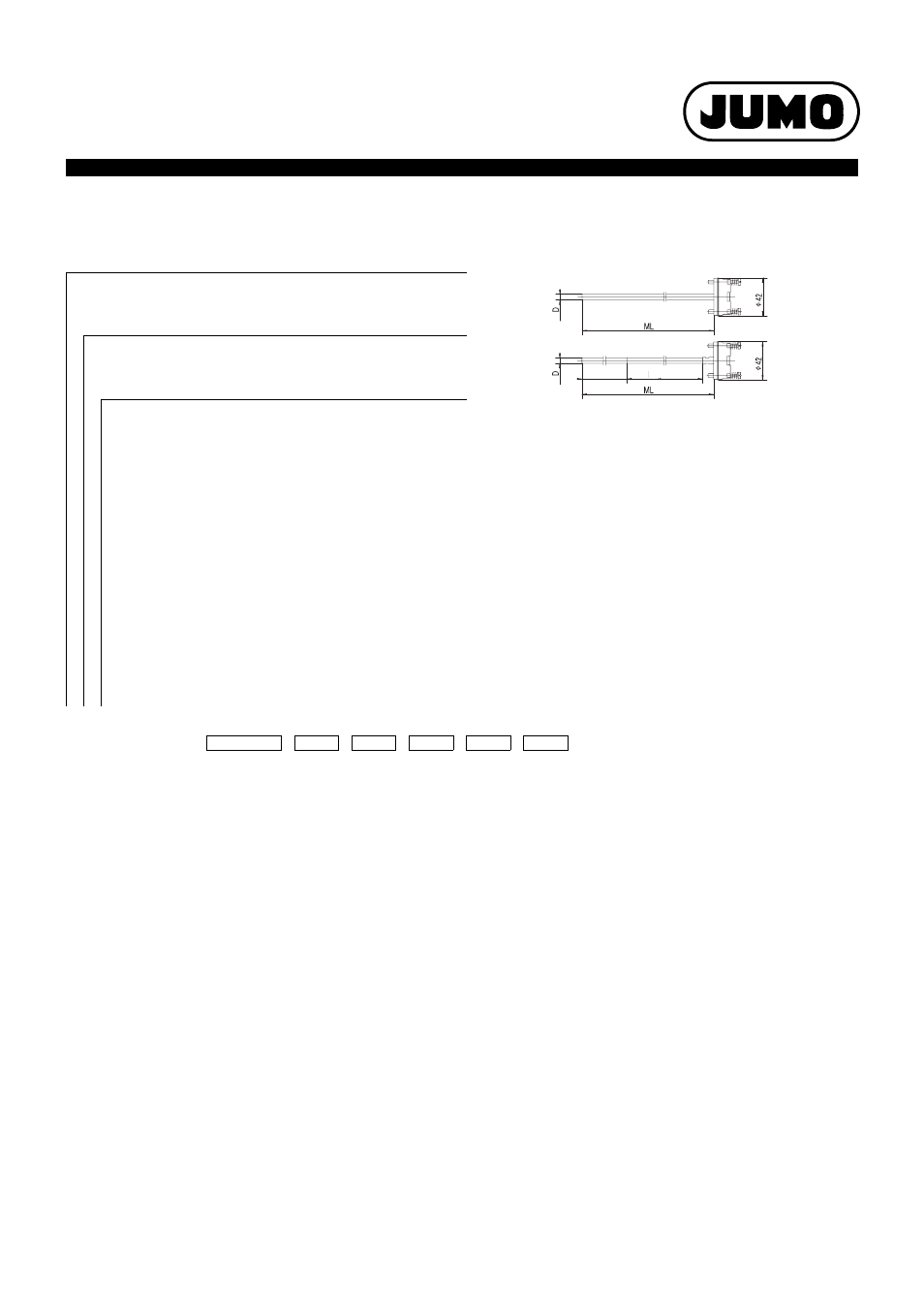

Order details:

Measuring inserts for screw-in thermocouples with terminal head Form B

(1) Basic version

909742/30

Inserts
for screw-in thermocouples

909742/40

Mineral-insulated inserts
for screw-in thermocouples

(2) Operating temperature in °C

x

150

-200 to + 600°C

x

165

-200 to + 800°C

x

182

-200 to +1150°C (only in conjunction with NiCr-Ni K)

(3) Measuring insert

x x

1042

1 x Fe-Con L

x x

1043

1 x NiCr-Ni K

x x

2042

2 x Fe-Con L

x x

2043

2 x NiCr-Ni K

(4) Measuring insert diameter D in mm

x

3

3mm

x x

6

6mm

(5) Measuring insert length ML in mm (with 909742/30 ML max. = 800mm)

x x

315

315mm (for thermocouple 901020/10-...-....-.-.-160-.../...)

x x

405

405mm (for thermocouple 901020/10-...-....-.-.-250-.../...)

x x

555

555mm (for thermocouple 901020/10-...-....-.-.-400-.../...)

x x

...

please specify in plain text

(6) Extra codes

x x

000

no extra code

x x

331

1 x programmable transmitter, output 4 to 20mA/20 to 4mA

3

, Data Sheet 70.7010

(1)

(2)

(3)

(4)

(5)

(6)

Order code

-

-

-

-

/

Order example

909742/30 -

150

- 1042 -

6

-

405

/

331

3. Please specify range and output signal in plain text.

flexible

rigid=50
