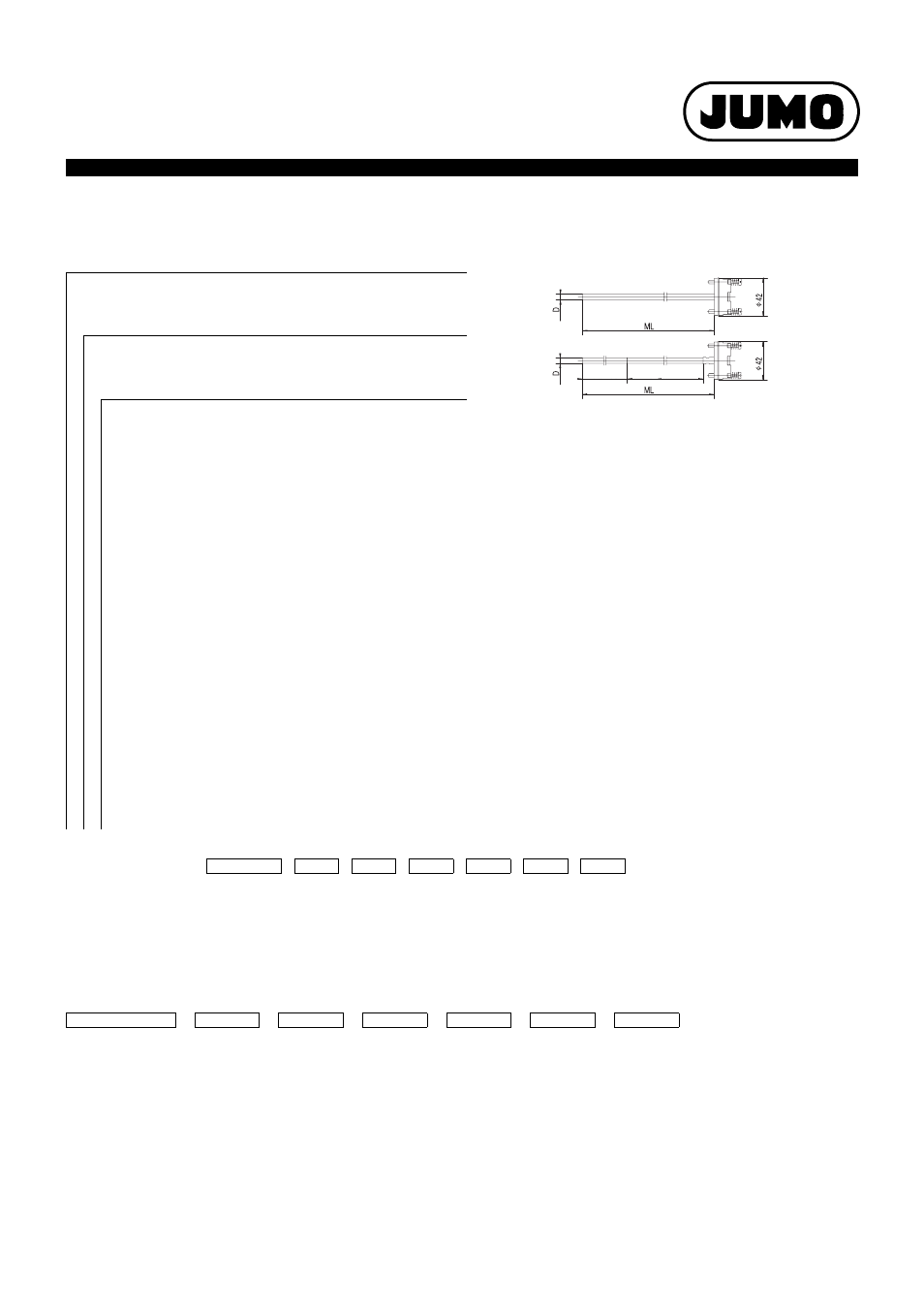

Data Sheet 90.9740 (90.9727)

Page 2/3

2009-11-12/00395643

JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14,

36039 Fulda, Germany

Postal address:

36035 Fulda, Germany

Phone:

+49 661 6003-0

Fax:

+49 661 6003-607

E-mail:

[email protected]

Internet:

www.jumo.net

JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow - Essex CM20 2DY, UK
Phone: +44 1279 63 55 33
Fax:

+44 1279 63 52 62

E-mail:

[email protected]

Internet: www.jumo.co.uk

JUMO Process Control, Inc.
8 Technology Boulevard
Canastota, NY 13032, USA
Phone:

315-697-JUMO
1-800-554-JUMO

Fax:

315-697-5867

E-mail:

[email protected]

Internet: www.jumo.us

Order details:

Measuring inserts for screw-in resistance thermometers with terminal head Form B

(1) Basic version

909740/10

Inserts to DIN 43 762
for screw-in resistance thermometers
to DIN 43 765/66, Form B und C

909740/20

Insert similar to DIN 43 762
as mineral-insulated resistance thermometer

(2) Operating temperature in °C

x

150

-200 to +600°C

x

402

- 50 to +400°C (standard with 909740/10)

x

415

- 50 to +600°C (standard with 909740/20)

(3) Measuring insert

x x

1001

1 x Pt100 in 3-wire circuit

x x

1003

1 x Pt100 in 2-wire circuit

x x

1011

1 x Pt100 in 4-wire circuit

x x

2001

2 x Pt100 in 3-wire circuit (only in conjunction with D 6mm)

x x

2003

2 x Pt100 in 2-wire circuit

(4) Tolerance class to EN 60 751

x x

1

Class B (standard)

x x

2

Class A

x x

3

Class 1/3 DIN

(5) Measuring insert diameter D in mm

x

3

3mm

x x

6

6mm

(6) Measuring insert length ML in mm (with 909740/10 ML max. = 800mm)

x x

315

315mm (for resistance thermometer 902020/10-...-....-.-.-160-.../...)

x x

405

405mm (for resistance thermometer 902020/10-...-....-.-.-250-.../...)

x x

555

555mm (for resistance thermometer 902020/10-...-....-.-.-400-.../...)

x x

...

please specify in plain text

(7) Extra codes

x x

000

no extra code

x x

330

1 x analog transmitter, output 4 to 20mA

2

, Data Sheet 70.7030

x x

331

1 x programmable transmitter, output 4 to 20mA/20 to 4mA

3

, Data Sheet 70.7010

x x

333

1 x analog transmitter, output 0 to 10V

2

, Data Sheet 70.7030

x x

337

2 x analog transmitter, output 0 to10V

2

, Data Sheet 70.7030

(1)

(2)

(3)

(4)

(5)

(6)

(7)

Order code

-

-

-

-

-

/

,...

Order example

909740/10 -

402

- 1003 -

1

-

6

-

315

/

000

1

1. List extra codes in sequence, separated by commas.
2. Please specify range in plain text.
3. Please specify range and output signal in plain text

.

Stock version

(1)

(2)

(3)

(4)

(5)

(6)

(7)

Sales No.

-

-

-

-

-

/

909740/10

-

402

-

1003

-

1

-

6

-

315

/

000

90/00039286

rigid=50

flexible
