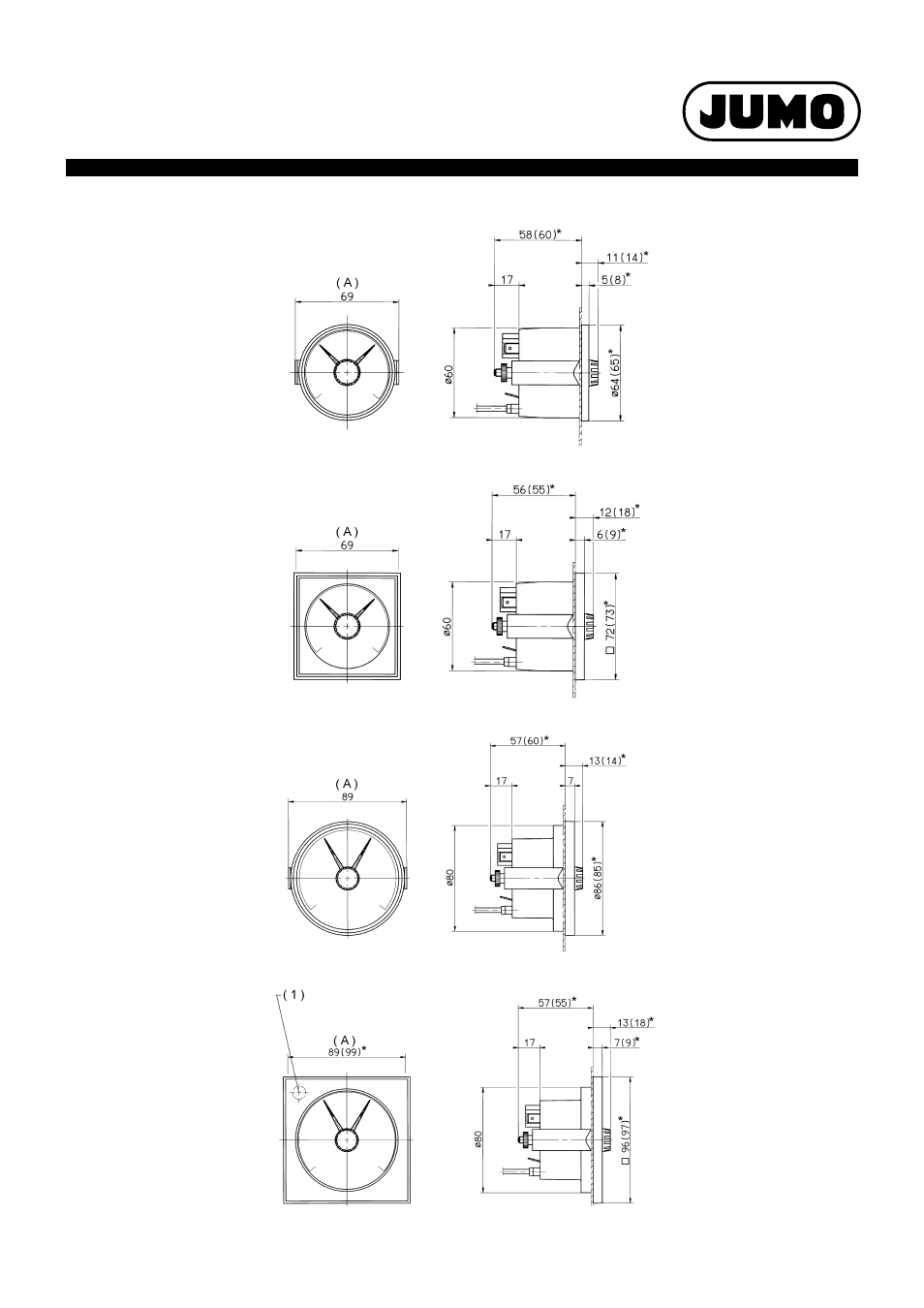

Dimensions
Types: 608501/2160
608501/2160 TZ 415 * for steel housing
(extra code TZ 415)
( A ) Width of mounting bracket
Panel cut-out Ø 62
+0,5
0
mm
Types: 608501/2572
608501/2572 TZ 415 * for steel housing
(extra code TZ 415)
( A ) Width of mounting bracket
Panel cut-out Ø 62
+0,5
0
mm
Types: 608501/2180
608501/2180 TZ 415 * for steel housing
(extra code TZ 415)
( A ) Width of mounting bracket
Panel cut-out Ø 82
+0,5
0
mm
Types: 608501/2596
608501/2596 TZ 415 * for steel housing
(extra code TZ 415)
( 1 ) TZ 572 (indicator light)
only with 92 x 92
+0,8
0
mm
panel cut-out
( A ) Width of mounting bracket
Panel cut-out Ø 82
+0,5
0
mm or 92 x 92
+0,8
0
mm (TZ 460)
