Contact dial thermometer
Special features
• Temperature controller with process value display as panel-mounting or add-on device
• Class 1.5
• Protection rating IP 65
• Case sizes
∅: 100 mm
Brief description
Contact dial thermometer are devices with process value display for temperature measurement,
control and monitoring and can be used universally.
The temperature depending volume change in a measuring system filled with liquid or the tem-
perature depending pressure change in a measuring system filled with gas is converted to a ro-
tational movement of the process value indicator by a bourdon tube, no transmission gear is
required. The microswitch is actuated by the rotational movement of the indicator shaft via a tap
system.

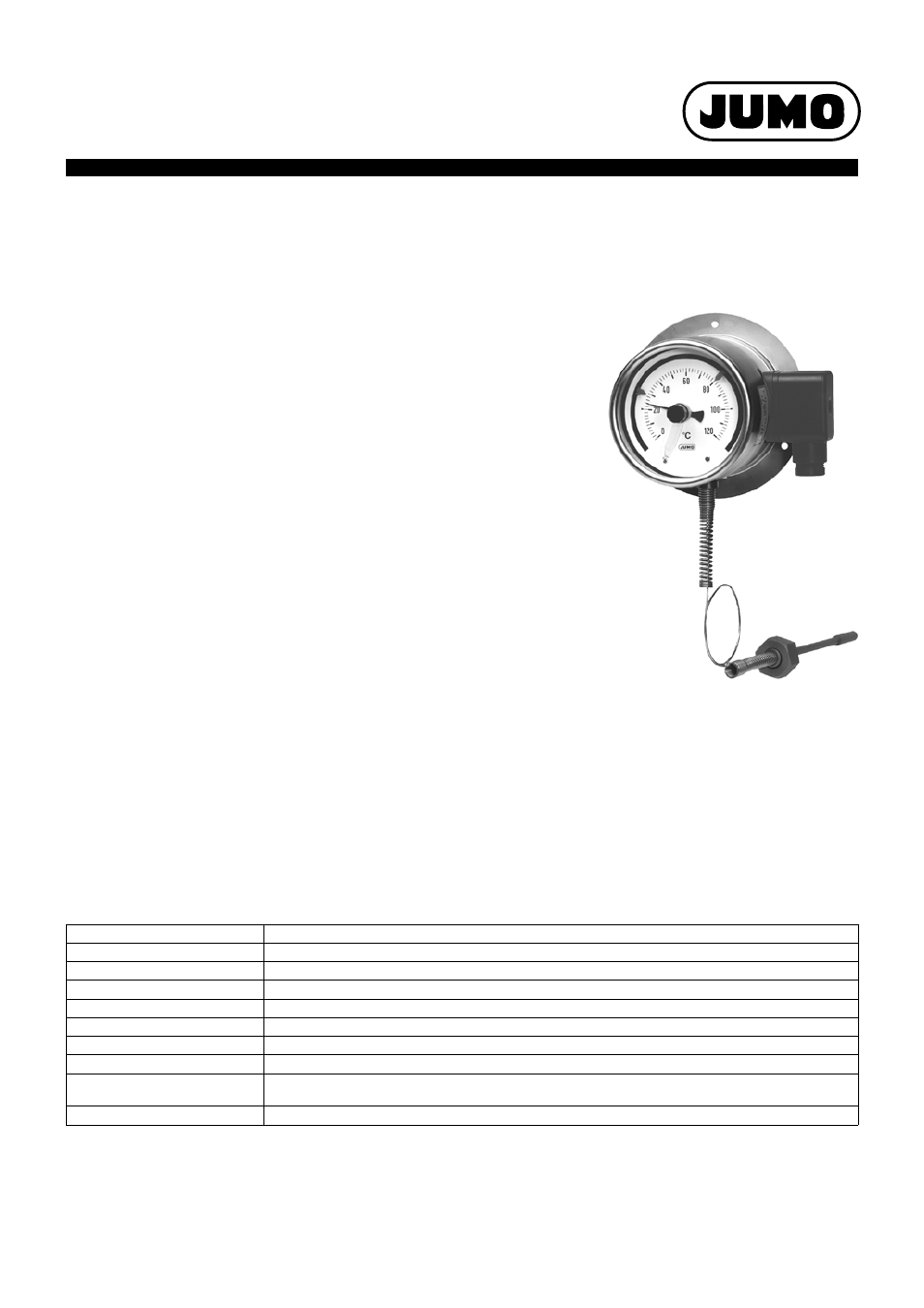

Type 608523/2210
Technical data
Case
Case with bayonet lock made of stainless steel (1.4301)
Protection class
IP 65 as per DIN EN 60529
Front pane
Polycarbonate
Scale
white, labeled in black
Display
Class 1.5 similar to DIN EN 13190
Anti-kink spring
for devices with capillary on the case and the temperature probe
Set point adjustment
by set point value setter in the front pane; with screwdriver, protected by screw-fitted cover
Display correction
on the rear, no display correction with design 20
Limit value temperatures
for transport and storage -20°C to +70°C
(for display range 0 to +60°C up to max. 65°C; -40 to +40°C up to max. 50°C; -30 to +50°C up to max. 60°C)
Rated position
any
Data Sheet 608523
