2011-12-31/00506174

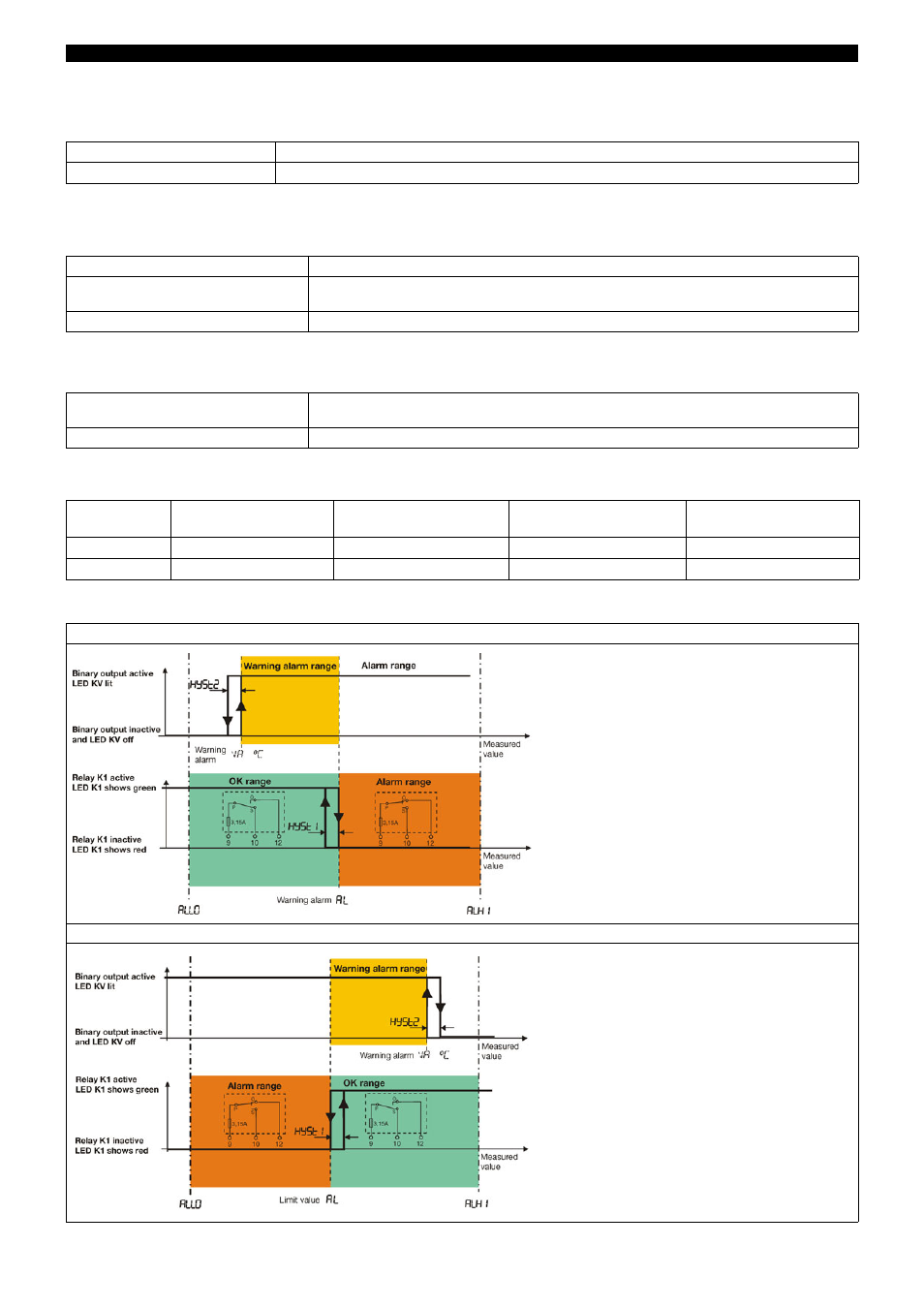

Data sheet 701160 JUMO GmbH & Co. KG • 36035 Fulda, Germany Seite 3/8
Binary input
Binary outputs
Voltage supply
Aapproval/Marks
Switching action at limit value
connection Function
1 floating contact Configurable unlocking, keyboard inhibit, level inhibit
Relay 100.000 operations at a contact rating of 3.15A/250V, 50Hz resistive load
contact suppression
safety fuse 3.15AT, installed in the pole contact arm within the device
Binary output 24 V DC / 20mA logic signal, short-circuit proof
voltage supply 20 - 30V AC/DC, 48 ...63 Hz
110V/240V AC, +10% /-15%
Power consumption 5 VA
approval
marks Inspection authority Certificate/Inspection
numbers inspection basics valid for
DIN DIN CERTCO TW/TB 1206 08 DIN EN 14597 all instrument versions
c UL us Underwriters Laboratories 20091123-E325456 UL 60730-2-9 all instrument versions
Switching action inverse
Switching action direct
