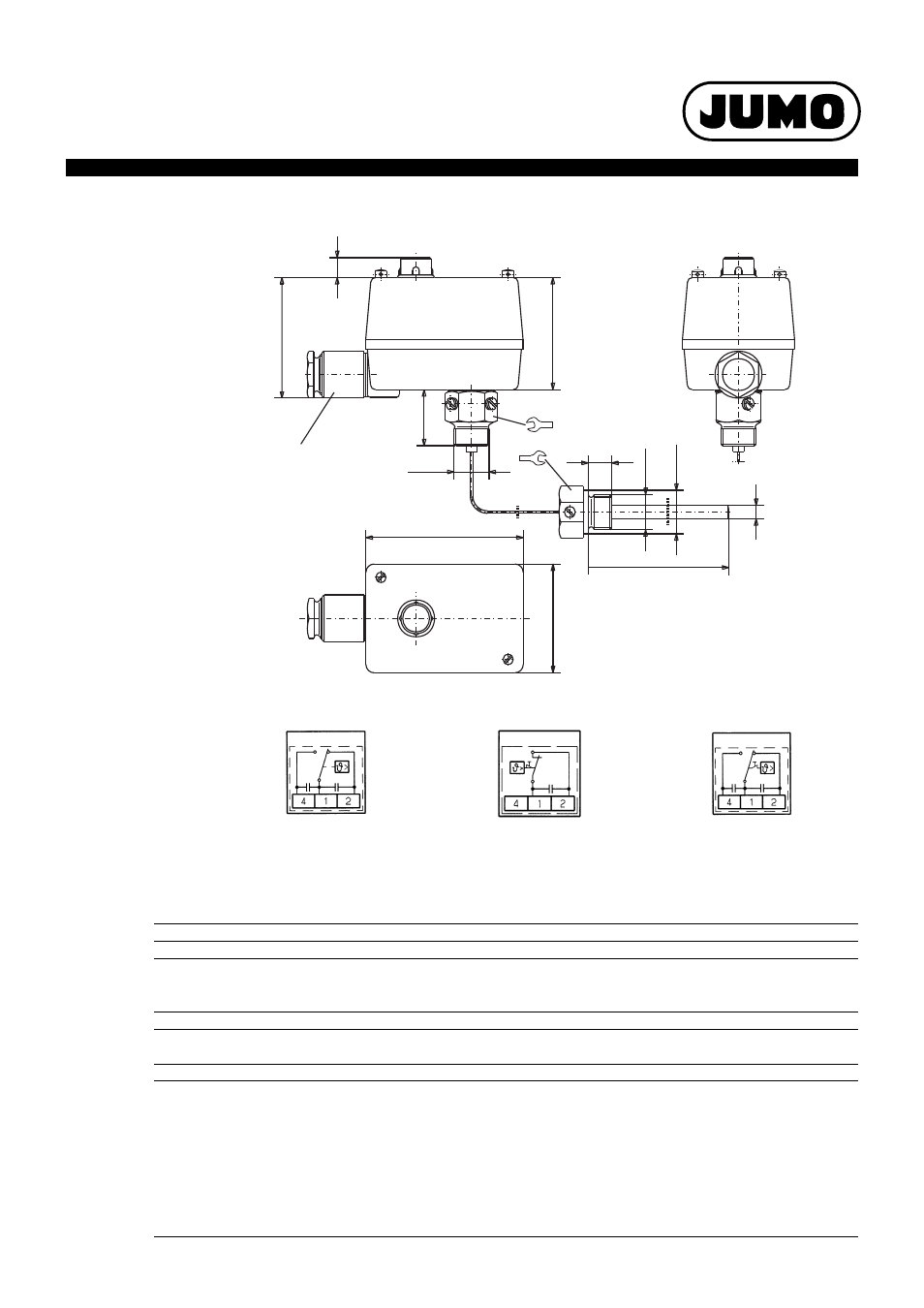

Dimensions
Wiring diagrams
ATHs-SE-... 7
with screw-in sheath "20"
up to 300 °C
ATH.SE-2 / ATH.SE-20 ATH.SE-70 ATH.SE-70/574
K M24x1,5
M 20x1,5
DIN 89280-Z14
70
12
66
G1/2
14
G1/2
Ø 26
D
S = max. 200 (150)
33
67
94
27
27
Order details
Surface-mounting thermostats, type series ATH.-SE
Order code (1) Basic type
603031 Surface-mounting thermostat, type series ATH.-SE
(2) Basic type extension
02 ATH.-SE-2 Temperature monitor TW
20 ATH.-SE-20 Safety temperature monitor STW (STB)
70 ATH.-SE-70 Safety temperature limiter STB
(3) Design
1 ATHs-SE-.. with rigid shaft
2 ATHf-SE-.. with capillary
(4) Control / limit value ranges
041 20 to 90 °C
025 0 to 100 °C
052 30 to 110 °C
042 20 to 120 °C
067 60 to 140 °C
043 20 to 150 °C
062 50 ... 200 °C
063 50 to 250 °C
064 50 to 300 °C
