JUMO 60.2026 Panel-mounting thermostat, EM Data Sheet - Manual (Page 5)

2013-06-20/00073209
Data Sheet 602026 Page 5/7
JUMO GmbH & Co. KG
Delivery address: Mackenrodtstraße 14
36039 Fulda, Germany
Postal address: 36035 Fulda, Germany
Phone: +49 661 6003-0
Fax: +49 661 6003-607
E-mail: [email protected]
Internet: www.jumo.net
JUMO Instrument Co. Ltd.
JUMO House
Temple Bank, Riverway
Harlow, Essex CM20 2DY, UK
Phone: +44 1279 635533
Fax:
+44 1279 635262
E-mail: [email protected]
Internet: www.jumo.co.uk
JUMO Process Control, Inc.
6733 Myers Road
East Syracuse, NY 13057, USA
Phone: 315-437-5866
1-800-554-5866
Fax: 315-437-5860
E-mail: [email protected]
Internet: www.jumousa.com

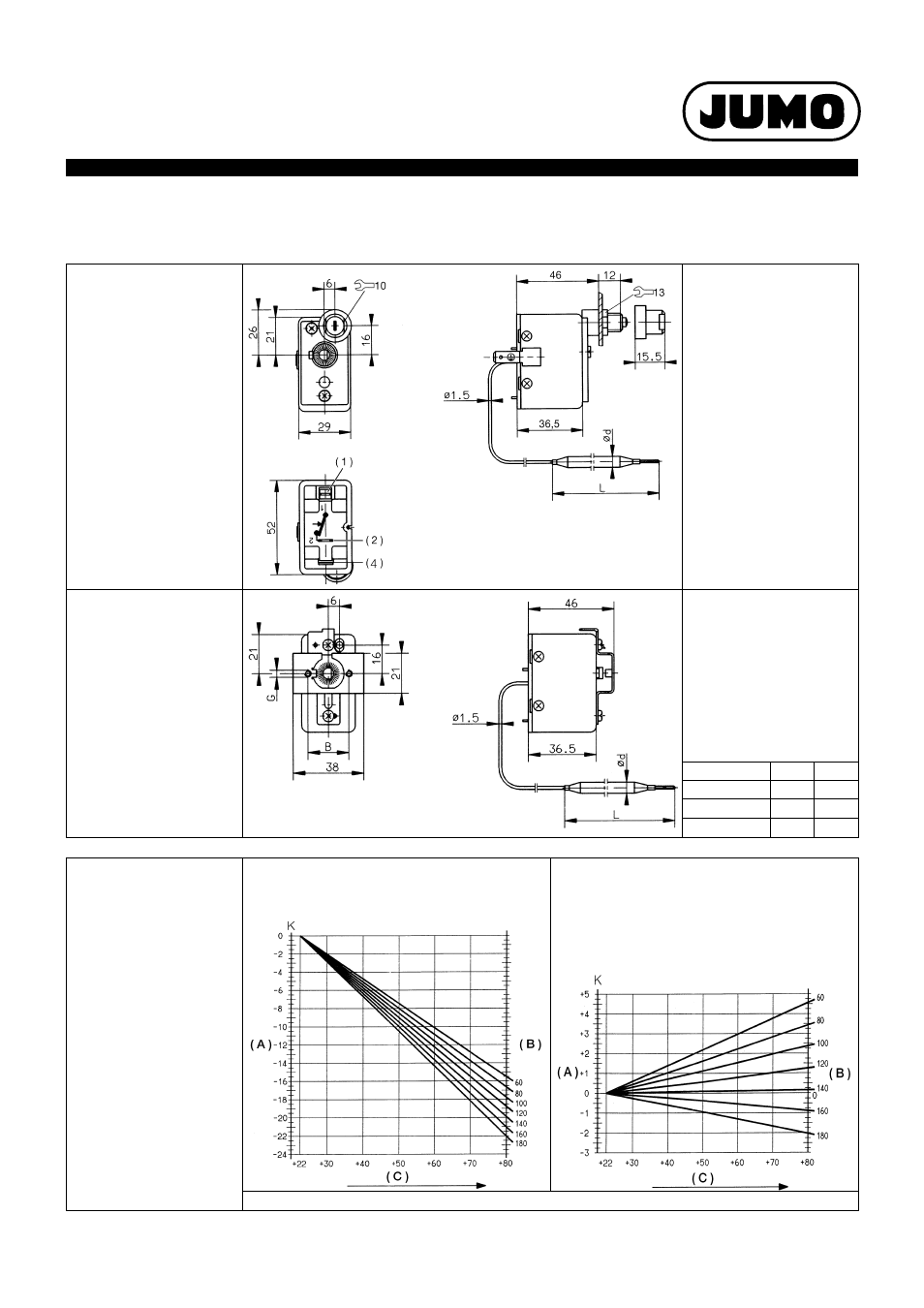

Dimensions
EM-80
with central mounting
(standard)
( 1 ) + ( 2 ) = standard: Tab
connector A 6.3 x 0.8 mm
(DIN 46244)
( 4 ) = only for
extra code /574:
Tab connector A 6.3 x 0.8 mm
(DIN 46244)
EM-20-E
EM-30-E
EM-80
with fixing brackets
Abbreviation B G
704 28 M4
705 33 M3
706 22 M3
Temperature compensation
(TK) (707)
If changes occur to the
switching head temperature in
relation to the calibration
ambient temperature
(= 22 °C), a switching point
deviation occurs. For highly
fluctuating ambient tempera-
tures, we recommend the use
of thermostats with tempera-
ture compensation (extra
code 707)
EM-.. "without" temperature compensation (707)
Switching point deviation depends on the ambient
temperature at the switching head taking the probe
temperature into account. EM-../TK "with" temperature compensation (707)
Switching point deviation depends on the ambient
temperature at the switching head taking the probe
temperature into account.
The temperature influence on the capillary is not yet
taken into account and can result in an additional
error of approx. 0.07 °C°C/°C·m.
( A ) = Switching point deviation ( B ) = Probe temperature in °C ( C ) = Ambient temperature in °C
