1 vertical presentation, 2 horizontal presentation, Vertical presentation – JUMO 706581 LOGOSCREEN nt Operating Instructions User Manual
Page 36: Horizontal presentation, 4 visualization
4 Visualization
36
4.7.1

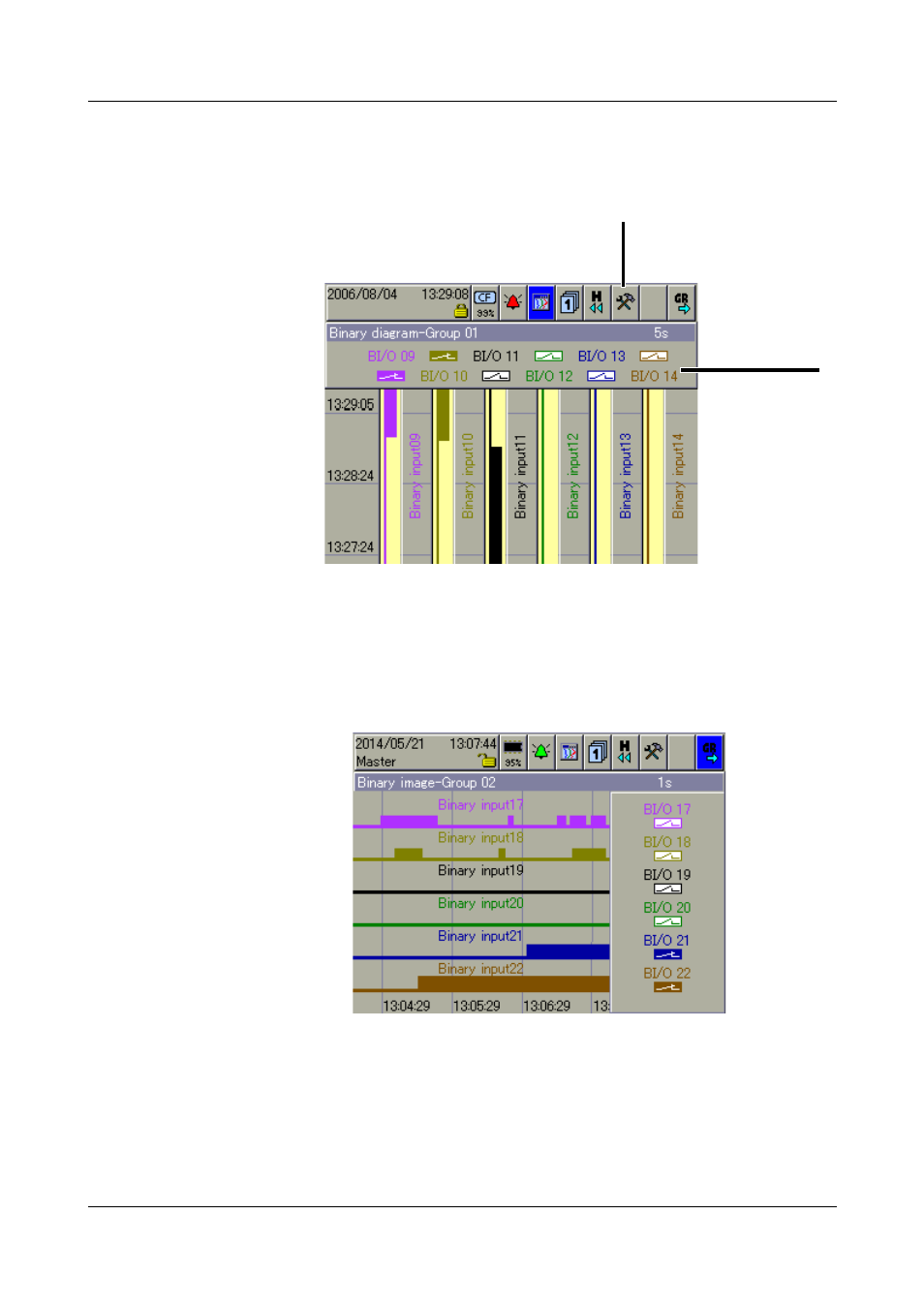

Vertical presentation
In the display, signals are continuously displayed on the screen running from
top to bottom.
4.7.2
Horizontal presentation
In the display, signals are continuously displayed on the screen running from
right to left.
The same functions as for the vertical presentation apply.
Diagram header
Switch on and off
Diagram header
