2 horizontal presentation, Horizontal presentation, See "numerical measurement display – JUMO 706581 LOGOSCREEN nt Operating Instructions User Manual

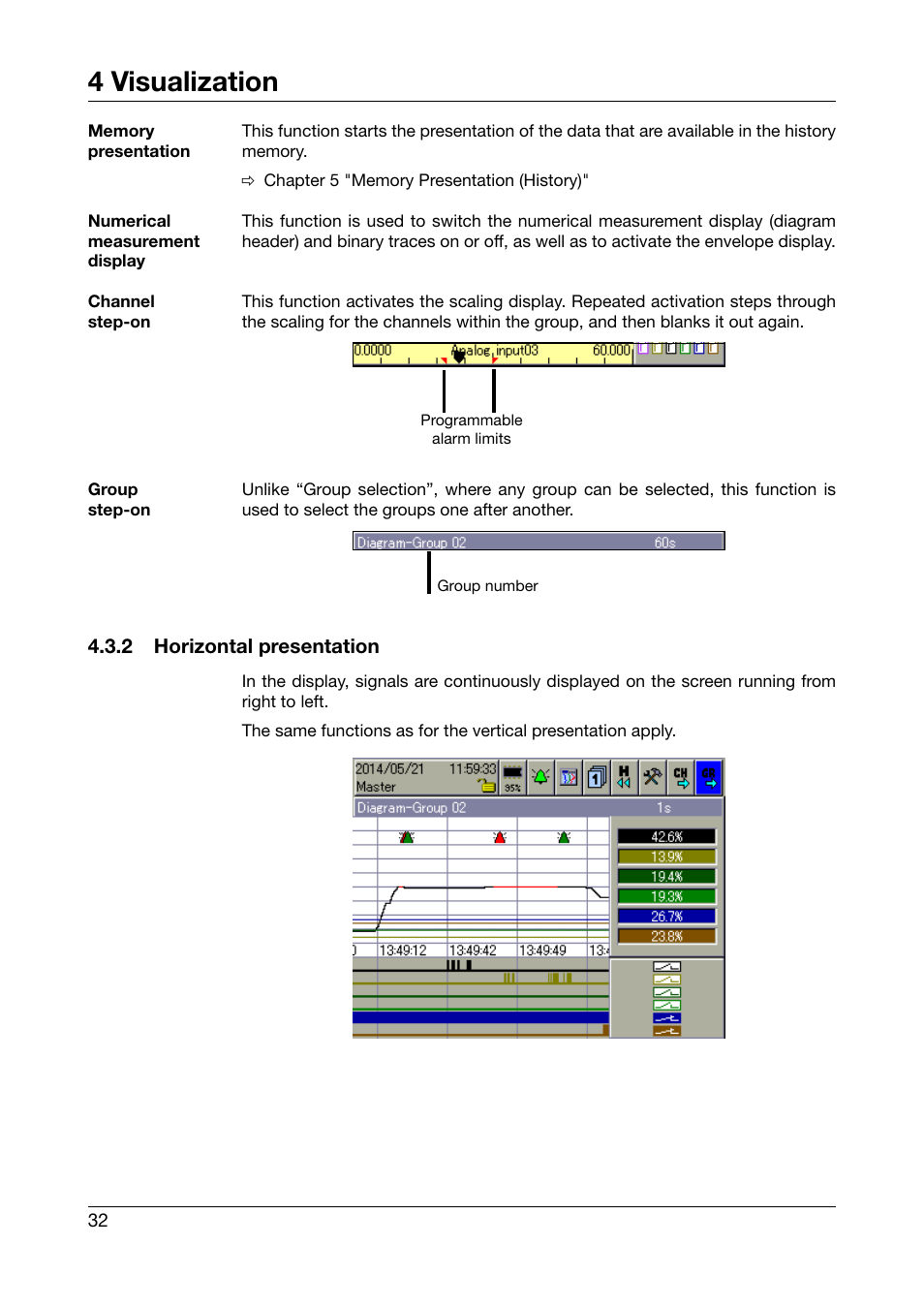

Page 32: 4 visualization
