Connection diagram – JUMO 709020 TYA-432 thyristor power switch Data Sheet User Manual
Page 3
2009-01-01/00073742
Data sheet 70.9020
JUMO GmbH & Co. KG • 36035 Fulda, Germany
Page 3/5
Type 432-100/45, 660
Type 432-100/3, 20, 660

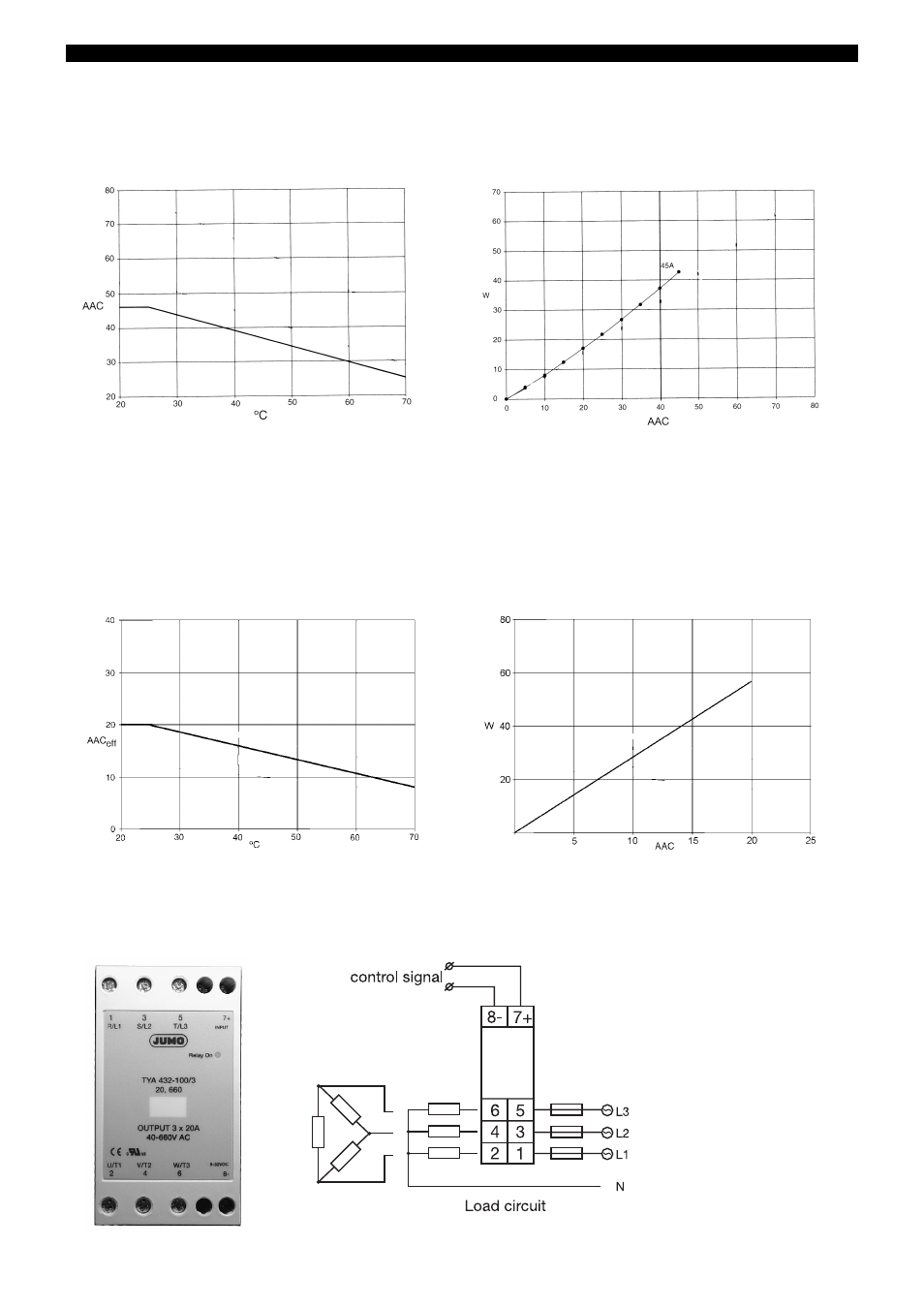

Connection diagram
Note!
Ensure that the lamellae of the cooling body are vertically aligned to allow the heat to be dissipated through natural con-
vection. Do not install any heat sensitive components and devices close to the power switch.
Permissible load current depending on the
ambient temperature
Power loss depending on the load
current
Power loss depending on the load current
Permissible load current depending on the ambient temperature
TYA 432-100/3, 20, 660
