tina53e1-c (2011-11) 23
4 Operation
Put the gauge into operation. If you are using an INFICON con-
troller, define the measurement range (
→  [1, 2, 3]).
A warm-up time of at least 2 hours should be allowed; for precise
pressure measurements a warm-up time of at least 4 hours is
required.
If the gauge is used for fast downstream pressure con-
trol we recommend setting its signal filter to "fast".
The filter can be set via the RS232C interface or the
diagnostic port (
→  [4]).

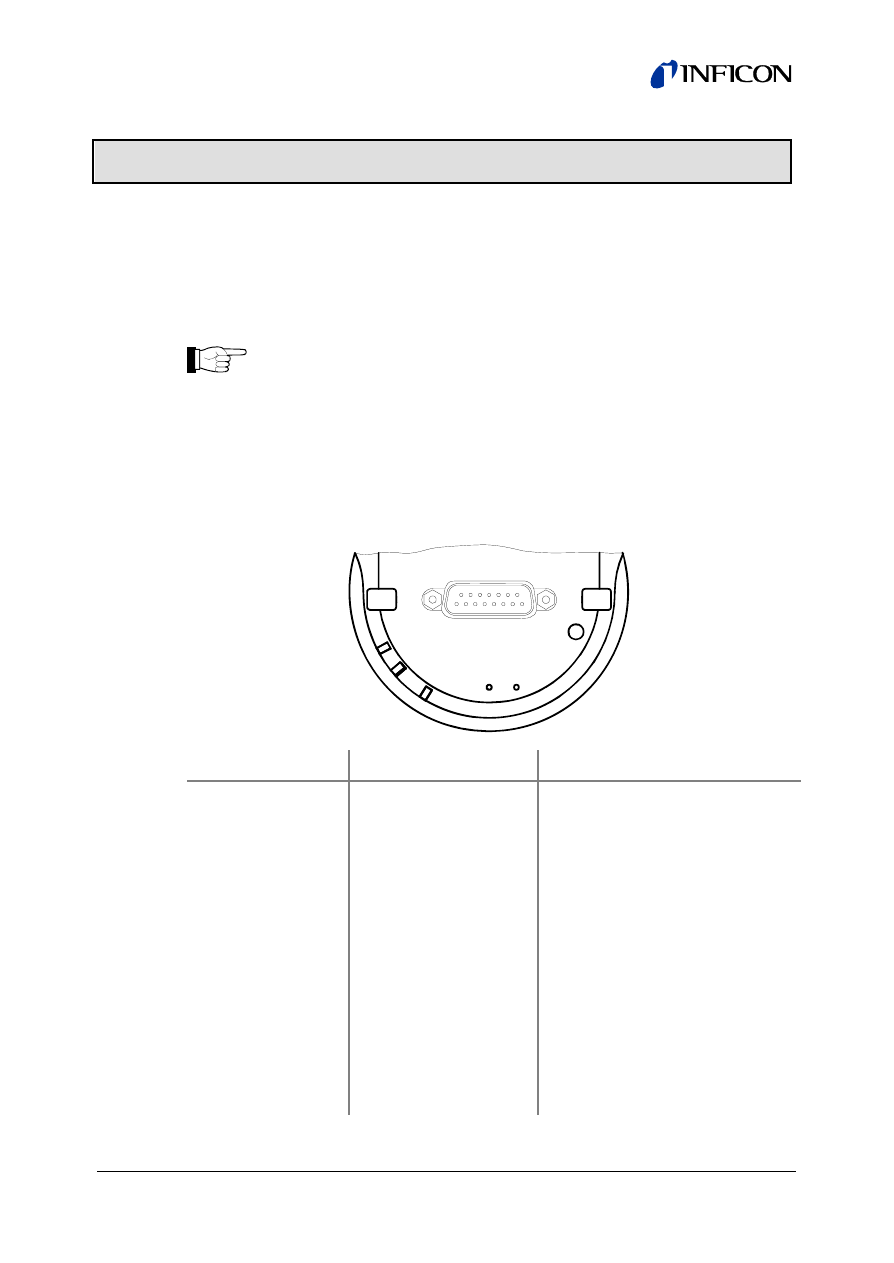

4.1 Status Indication
SP
1
SP
2
ST
A
TU
S
SP ZERO
DIAG
I/O
LED LED status Meaning
off no supply voltage
lit solid green measurement mode
blinking green
short blinks
long blinks
warning, over/underrange
warming up
lit solid red error
lit green p ≤ setpoint 1
blinking green waiting for setpoint 1 input
off p > setpoint 1
lit solid green p ≤ setpoint 2
blinking green waiting for setpoint 2 input
off p > setpoint 2
