4 Operation
Put the gauge into operation. If you are using an INFICON con-
troller, define the measurement range (
→  [1], [2].
A warm-up time of at least ½ hour should be allowed; for precise
pressure measurements a warm-up time of at least 2 hours is
required.

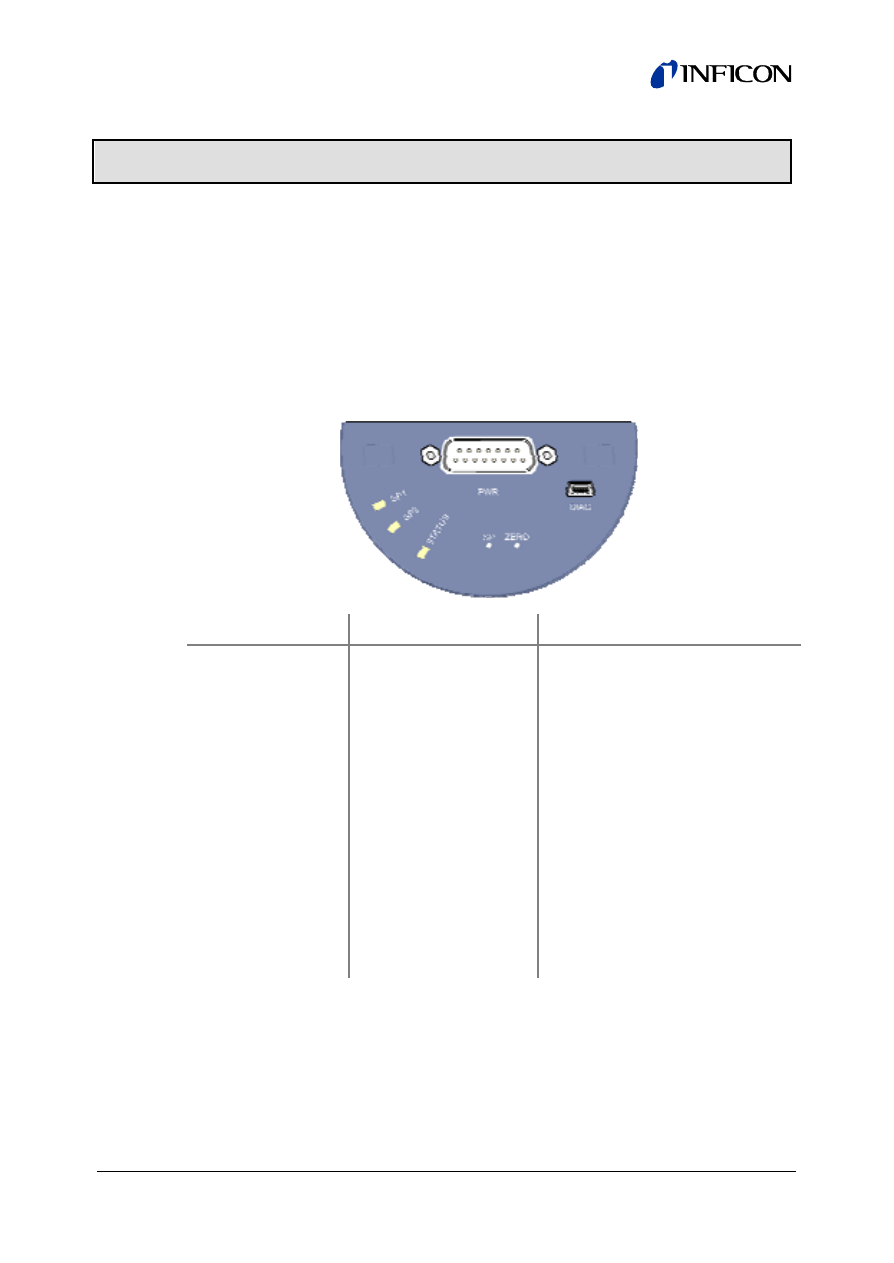

4.1 Status Indication
LED LED status Meaning
off no supply voltage
lit solid green measurement mode
blinking green
short blinks
long blinks
warning, over/underrange
warming up
lit solid red error
lit green green p ≤ setpoint 1
blinking green waiting for setpoint 1 input
off p > setpoint 1
lit solid green p ≤ setpoint 2
blinking green waiting for setpoint 2 input
off p > setpoint 2
EtherCAT LEDs →  [3]
