30 tina95e1 (2014-07)

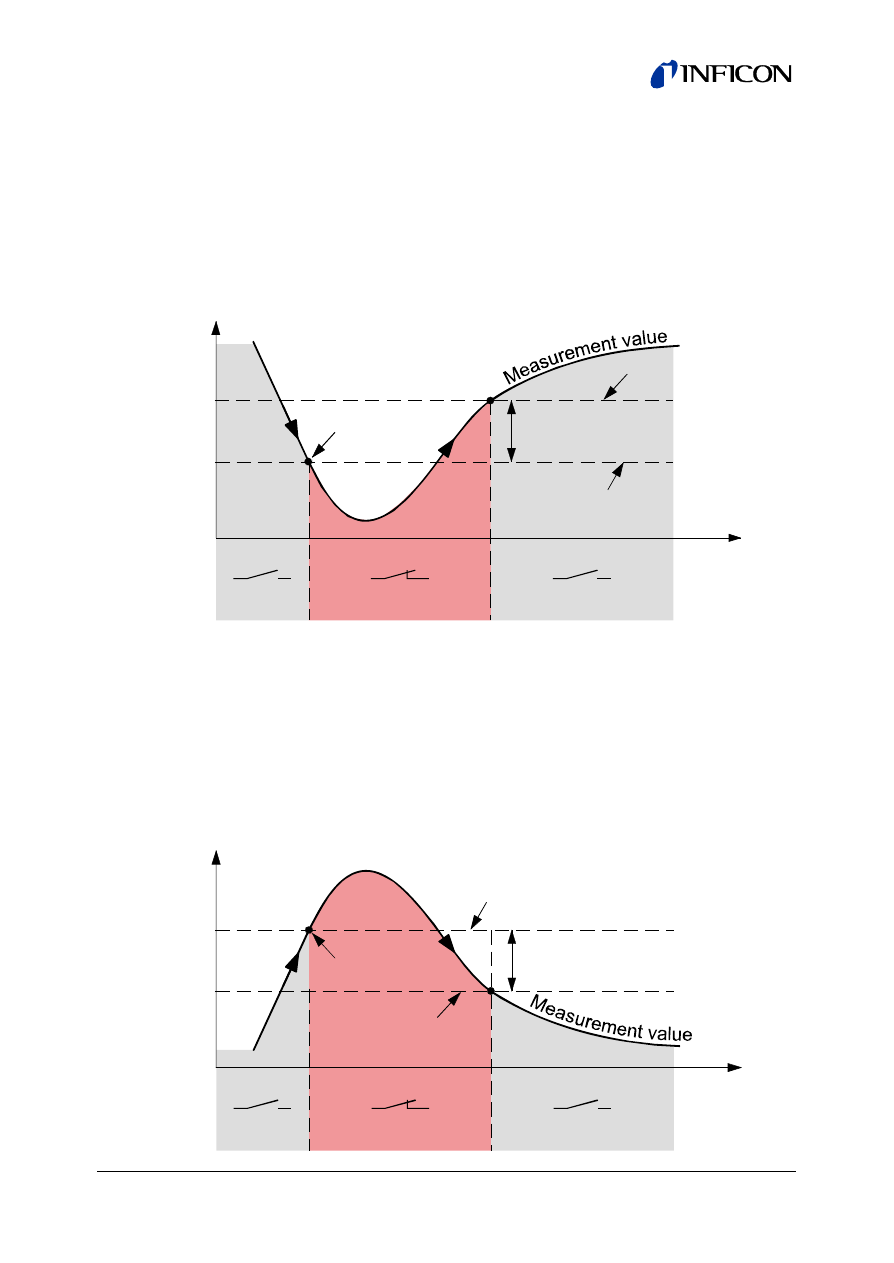

Low Trip Point
(default)
If the pressure in the vacuum system is lower than the setpoint,
the corresponding LED ( or ) is lit solid and the
corresponding relay is closed.
Measurement signal
(pressure p)
Time t
Off On
Hysteresis
(1% F.S.)
Off
Threshold value
Reset value
Setpoint
High Trip Point
If the pressure in the vacuum system is higher than the setpoint,
the corresponding LED ( or ) is lit solid and the
corresponding relay is closed.
Measurement signal
(pressure p)
Time t
Off On
Hysteresis
(1% F.S.)
Off
Threshold value
Setpoint
Reset value
