4. If unit ductwork is to be attached to vertical opening flanges
on the unit composite base (jackstand applications only), do
so at this time. Collect ALL screws that were removed. Do
not leave screws on rooftop as permanent damage to the
roof may occur.
5. It is recommended that the unit base insulation around the
perimeter of the vertical return-air opening be secured to the
unit base with aluminum tape. Applicable local codes may
require aluminum tape to prevent exposed fiberglass.
6. Cover both horizontal duct openings with the duct covers
from the accessory duct cover kit. Ensure opening is air-and
watertight.
7. After completing unit conversion, perform all safety checks
and power up unit.
NOTE: The design and installation of the duct system must be in
accordance with the standards of the NFPA for installation of
nonresidence-type air conditioning and ventilating systems, NFPA
90A or residence-type, NFPA 90B; and/or local codes and
ordinances.
Adhere to the following criteria when selecting, sizing, and
installing the duct system:
8. Units are shipped for side shot installation.
9. Select and size ductwork, supply-air registers, and return-air
grilles according to American Society of Heating, Refrig-
eration and Air Conditioning Engineers (ASHRAE) recom-
mendations.

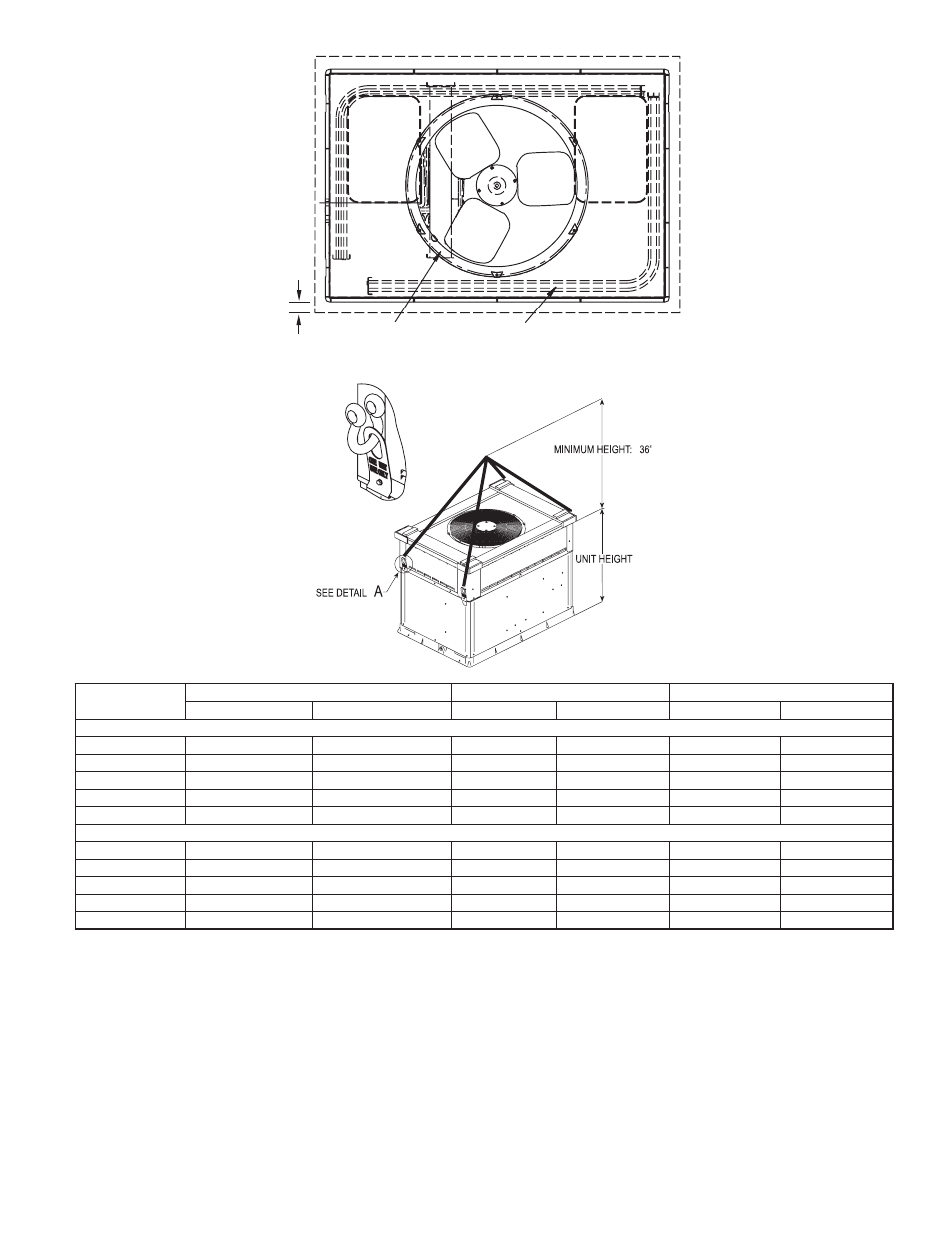

Fig. 5B—Slab Mounting Detail
C99096
OPTIONAL
RETURN
AIR
OPENING
OPTIONAL
SUPPLY
AIR
OPENING
EVAP. COIL COND. COIL
2"
Fig. 6—Suggested Rigging
SIZE
MAXIMUM WEIGHT A B
lb. kg in. mm. in. mm.
UNIT 701A
030 280 127.0 19 482.6 14 355.6
036 290 131.5 20 508.0 14 355.6
042 316 143.3 19 482.6 14 355.6
048 346 156.9 20 508 17 431.8
060 411 186.4 19 482.6 16 406.4
UNIT 702A
030 313 142.5 19.5 495.3 15.50 393.7
036 321 145.6 19.5 495.3 15.25 387.4
042 343 155.6 20.5 520.7 16.75 425.5
048 348 157.9 19.5 495.3 17.62 447.6
060 421 191.0 20.5 520.7 16.25 412.8
A05179
DETAIL A
—7—
