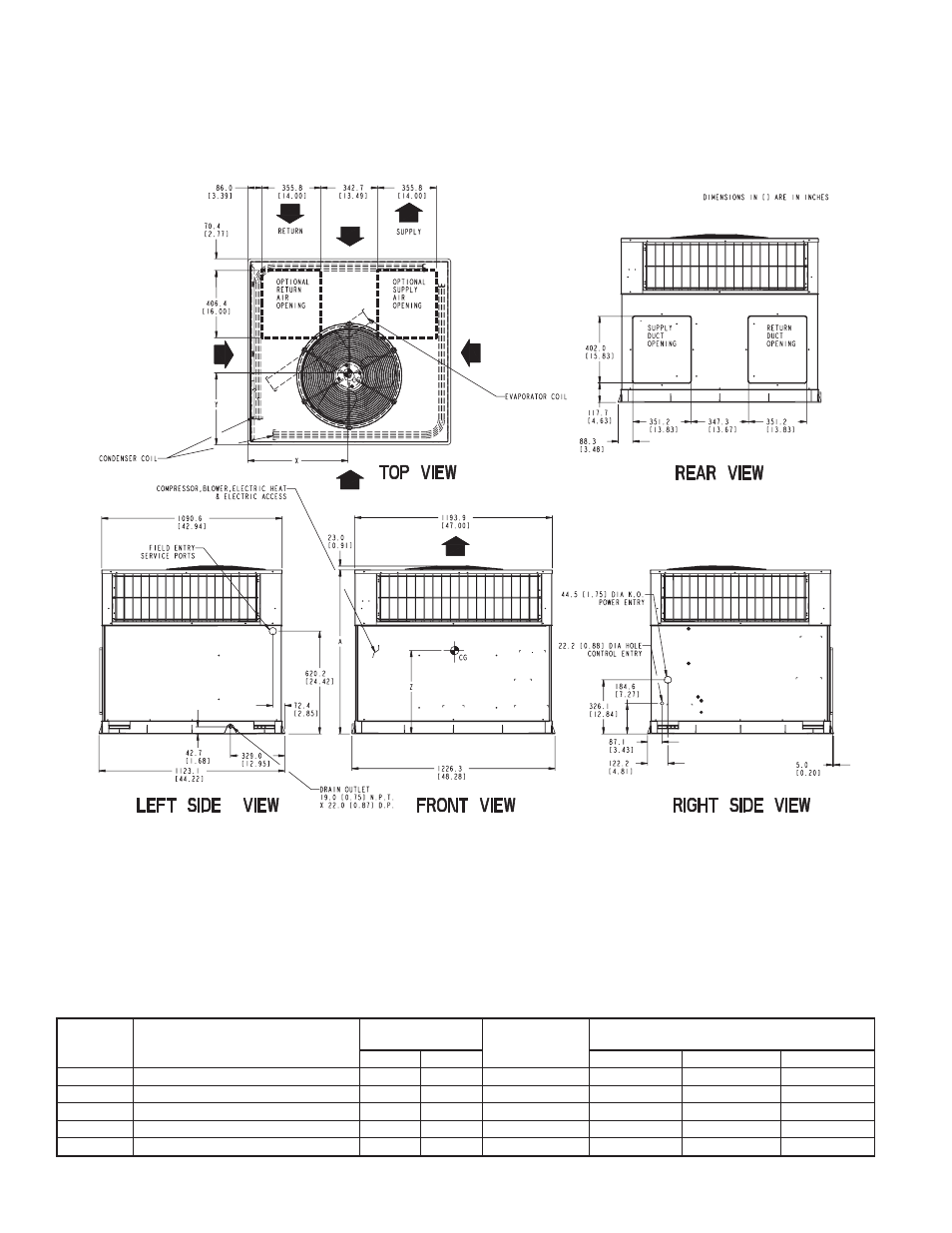

Fig. 3—701A048–060 and 702A042–060 Unit Dimensions

UNIT

ELECTRICAL CHARACTERISTICS

UNIT WEIGHT

UNIT HEIGHT

IN. (MM)

”A”

CENTER OF GRAVITY

IN. (MM)

lb.

kg

X

Y

Z

701A048

208/230-3-60, 460-3-60

324

145

38.98 (990.2)

20.0 (508.0)

17.0 (432.0)

17.0 (432.0)

701A060

208/230-3-60, 460-3-60

389

176

38.98 (990.2)

19.0 (482.6)

16.0 (406.0)

17.0 (432.0)

702A042

208/230-3-60, 460-3-60

321

146

38.98 (990.2)

20.5 (520.7)

16.75 (425.5)

16.6 (421.6)

702A048

208/230-3-60, 460-3-60

326

148

38.98 (990.2)

19.5 (495.3)

17.6 (447.6)

18.0 (457.2)

702A060

208/230-3-60, 460-3-60

399

181

42.98 (1091.1)

20.5 (520.7)

16.2 (412.8)

17.6 (447.0)

C99006

REQUIRED CLEARANCE FOR OPERATION AND SERVICING

INCHES [mm]

EVAP. COIL ACCESS SIDE............................................................36.00 [914.0]
POWER ENTRY SIDE....................................................................36.00 [914.0]
(EXCEPT FOR NEC REQUIREMENTS)
UNIT TOP .......................................................................................48.00 [1219.2]
SIDE OPPOSITE DUCTS ..............................................................36.00 [914.0]
DUCT PANEL .................................................................................12.00 [304.8] *

*MINIMUM DISTANCES: IF UNIT IS PLACED LESS THAN 304.8 [12.00] FROM
WALL SYSTEM, THEN SYSTEM PERFORMANCE MAYBE COMPROMISE.

REQUIRED CLEARANCE TO COMBUSTIBLE MATL.

INCHES [mm]

TOP OF UNIT ...................................................................................14.00 [355.6]
DUCT SIDE OF UNIT.........................................................................2.00 [50.8]
SIDE OPPOSITE DUCTS ................................................................14.00 [355.6]
BOTTOM OF UNIT .............................................................................0.50 [12.7]
ELECTRIC HEAT PANEL .................................................................36.00 [914.4]

NEC. REQUIRED CLEARANCES.

INCHES [mm]

BETWEEN UNITS, POWER ENTRY SIDE ....................................42.00 [1066.8]
UNIT AND UNGROUNDED SURFACES, POWER ENTRY SIDE .36.00 [914.0]
UNIT AND BLOCK OR CONCRETE WALLS AND OTHER
GROUNDED SURFACES, POWER ENTRY SIDE.........................42.00 [1066.8]

—4—
