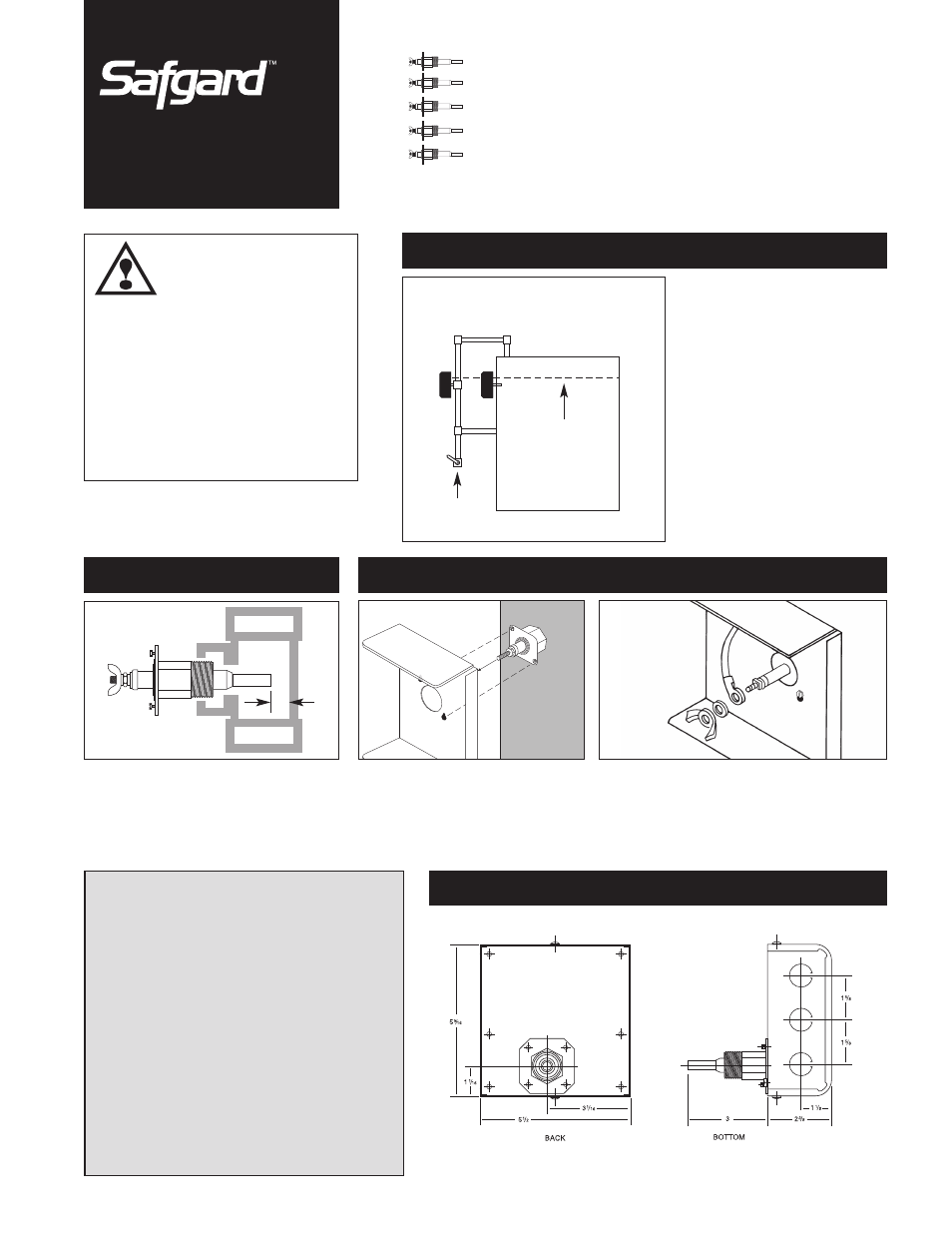

Hydrolevel 270SV - Manual

WARNING: To prevent
electrical shock or equip-
ment damage, power must
be off during installation or servicing
of the control. To prevent serious
burns, the boiler should be thorough-
ly cooled before installing or servic-
ing control. Only qualified personnel
may install or service the control in
accordance with local codes and
ordinances. Read instructions com-
pletely before proceeding.
The 3/4" NPTprobe must be installed
at a location just below the highest
permissable water level. The probe may
be installed in any metal tank, boiler, or
equalizing line. When installed in an
equalizing line, a proper blowdown
valve should be installed for regular
maintenance.
IMPORTANT: To assure proper
drainage, pipe diameter should be no
less than 1" on installations in vertical
piping.
Remove the control cover and slide key-
hole slots over probe mounting screws
and tighten screws (with either a 1/4" hex
head driver or flat screwdriver). Connect the ring terminal wire lead to the probe termi-
nal stud and secure with the lock washer and wing nut
provided. With the power removed, proceed with
installation and wiring described on next page. Check to insure 1/4" clearance from the probe to
any surface inside the boiler, tank or tee. Apply
pipe sealing compound to threads.
Note: Use of Teflon tape is not recommended.
LIMITED
MANUFACTURERʼS WARRANTY
We warrant products manufactured by Hydrolevel
Company to be free from defects in material and work-
manship for a period of two years from the date of manu-
facture or one year from the date of installation, whichev-
er occurs first. In the event of any claim under this war-
ranty or otherwise with respect to our products which is
made within such period, we will, at our option, repair or
replace such products or refund the purchase price paid
to us by you for such products. In no event shall
Hydrolevel Company be liable for any other loss or dam-
age, whether direct, indirect, incidental or consequential.
This warranty is your EXCLUSIVE remedy and shall be IN
PLACE OF any other warranty or guarantee, express or
implied, including, without limitation, any warranty of
MERCHANTABILITY or fitness for a particular purpose.
This warranty may not be assigned or transferred and any
unauthorized transfer or assignment thereof shall be void
and of no force or effect.
1. Where To Install
3. Control Mounting
Dimensions
2. Probe Installation
HIGHEST
PERMISSABLE
WATER LEVEL
OR
BLOWDOWN
VALVE
1/4"
BOILER OR TANK
INSTALLATION
Automatically interrupts pump or feeder when water contacts probe
Provides contacts for optional alarm
Ideal for boilers, receiver tanks and process applications.
Low maintenance — no moving parts to wear, stick or hang-up
Heavy-duty electro-mechanical design for long life High Water Limit
120 VAC Operating Voltage
Model 270SV
