8 Connecting sensors
One analogue input for one transmitter is always available as standard.
8.1 HDA 5500 with one transmitter

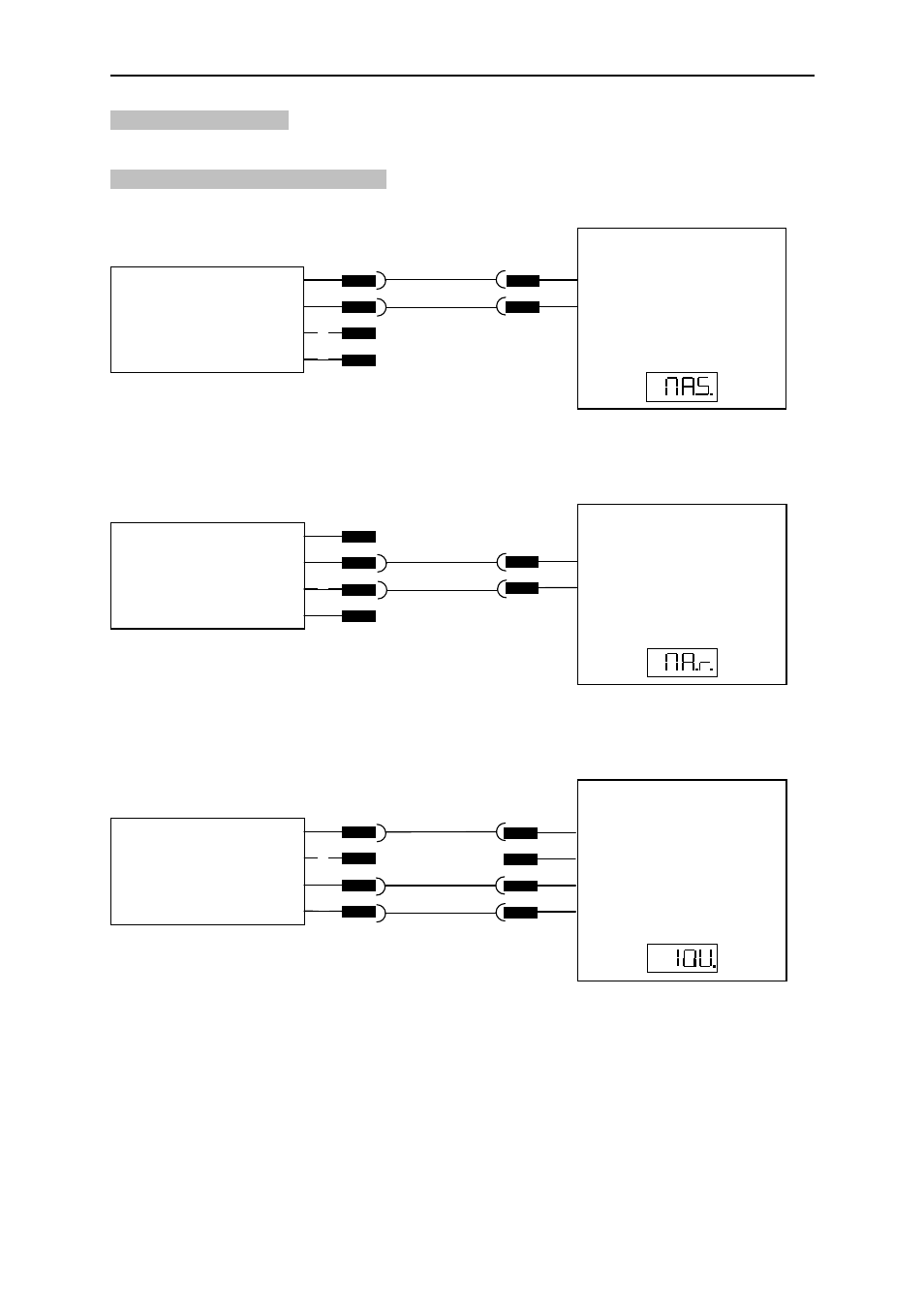

Connection example for transmitter with a 4..20 mA sink as input signal,
e. g. HDA 5500-0-0-DC-000 with HDA 4445-A-100-000
(refer to chapter 16 Pin configurations):
Connection example for transmitter with a 4..20 mA source as input signal,
e. g. HDA 5500-0-0-DC-000 with EDS 3446-3-0100-000
(refer to chapter 16 Pin configurations):
Connection example for transmitter with a 0..10 V as input signal,
e. g. HDA 5500-0-0-DC-000 with HDA 4746-B-100-000
(refer to chapter 16 Pin configurations):
EDS 3446-3-...
1
2
3
4
HDA 5500-...
IN1
AGND
Input signal sensor 1:
7
5
HDA 5500-...
+12 V
IN1
AGND
Input signal sensor 1:
6
7
HDA 4746-B-...
1
2
3
4 5
HDA 4445-A-...
1
2
3
4
HDA 5500-...
IN1
AGND
Input signal sensor 1
7
5
