Heidolph Rotacool User Manual
Page 3
3
E
Key
Page 2
1 Cover
2 Cooling liquid connection
3 Right threaded socket
4 Left threaded socket
Page 3
5 Cup
6 Display
7
‘Cooling’ LED
8
‘Pump’ LED
9 On/Off button
10 Main switch
11
‘SET’ button
12
‘’ button (decrease value)
13
‘’ button (increase value)
14 Filling level indicator
15 Extension kit
16 Base of the housing
17 Platform
18 Sealing screw
19 Discharge socket
20 Discharge valve
21 Unit socket

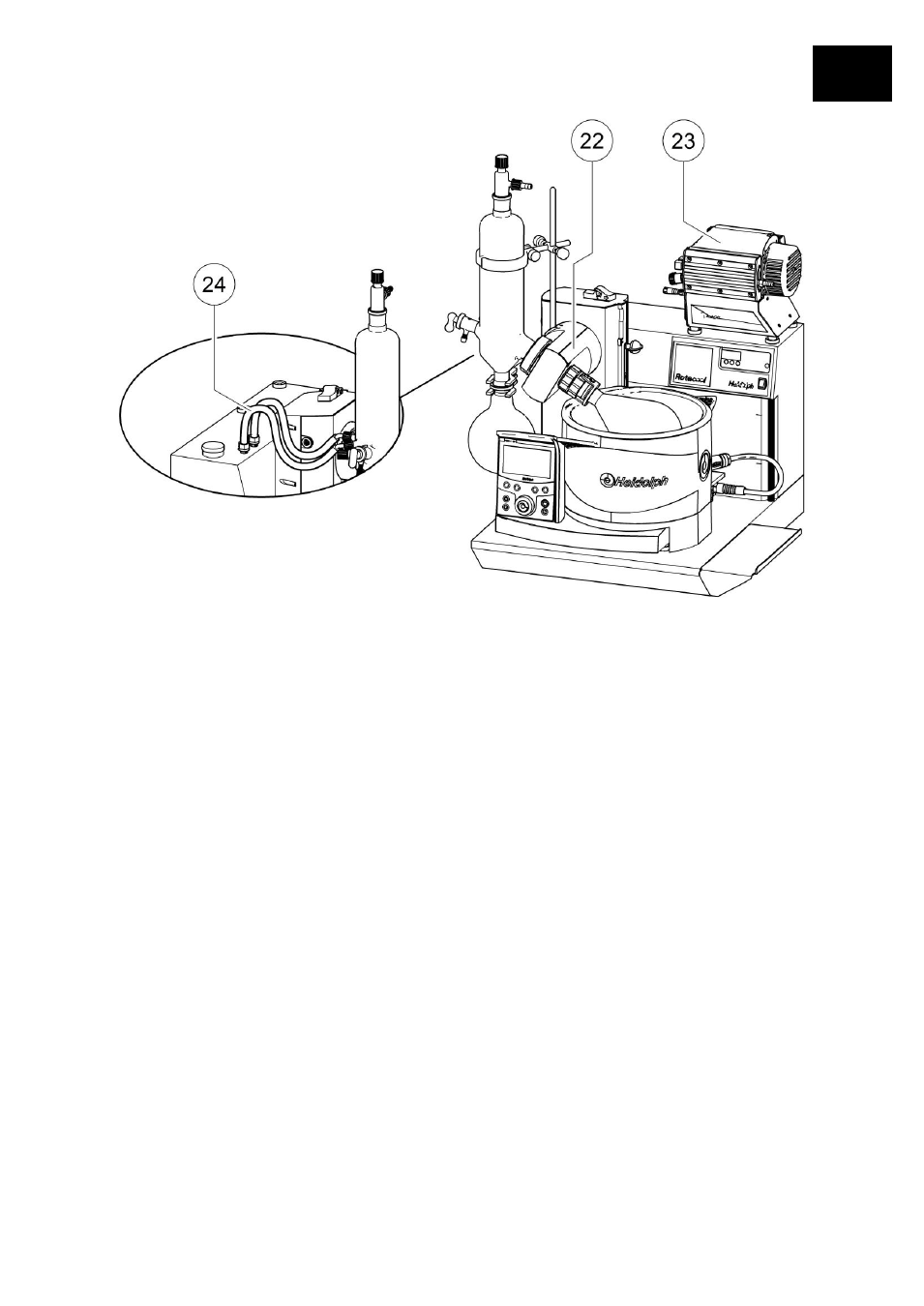

22 Rotary evaporator
23 Vacuum pump
24 Connecting tube
