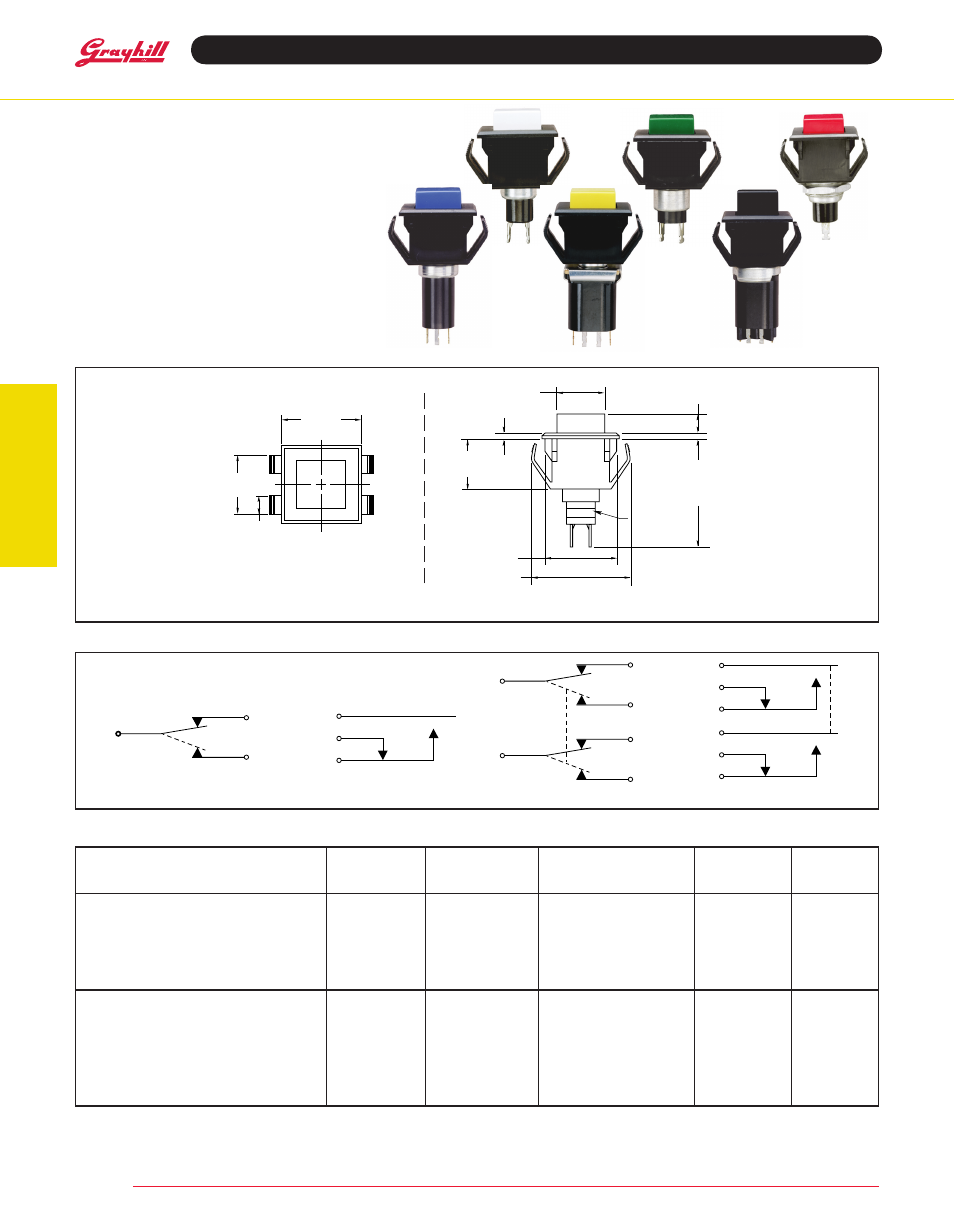

Pushbutton Switches
Butt Contact Pushbutton Switches
SerieS 30 and 46
Snap-in Panel Mount
FeatureS
• Sleek Black Matte Bezel
• Convenient Snap-In Front Mount
• Choice of 6 Button Colors
• SPST, SPDT or DPDT Circuitry
• Alternate Action, Positive Feel
and Overtravel Versions
• Printed Button Option
Butt Contact Switches - Series 30
SPST-N.O.
.205 (5,21)
1.119 (28,42)
.062 ± .010 (1,57 ± 0,25) 10 ± 4 oz.
30-001-a-*
SPST-N.O., Overtravel
.205 (5,21)
1.204 (30,58)
.125 ± .020 (3,18 ± 0,51)
8 ± 4 oz.
30-015-a-*
SPST-N.O., Overtravel & Positive Feel
Adjustable**
Adjustable**
.156 ± .015 (3,96 ± 0,38)
18 ± 4 oz.
30-017-a-*
SPST-N.O., Economical
.205 (5,21)
1.119 (28,42)
.062 ± .010 (1,57 ± 0,25)
10 ± 4 oz.
30-601-a-*
SPST-N.C.
.205 (5,21)
1.132 (28,75) .065 ± .015 (1,65 ± 0,38)
8 ± 4 oz.
30-002-a-*
Wiping Contact Switches - Series 46
SPDT, BBM
.205 (5,21)
1.417 (35,99)
.180 (4,57) min.
1.1 ± .25 lbs.
46-102-a-*
SPDT, MBB
.205 (5,21)
1.417 (35,99)
.180 (4,57) min.
1.1 ± .25 lbs.
46-111-a-*
SPDT, BBM, Alternate Action
.293 (7,44)
1.448 (36,78)
.180 (4,57) min.
1.5 ± .25 lbs.
46-502-a-*
DPDT, BBM
.205 (5,21)
1.448 (36,78)
.180 (4,57) min.
2.2 ± .5 lbs.
46-200-a-*
DPDT, MBB
.205 (5,21)
1.448 (36,78)
.180 (4,57) min.
2.2 ± .5 lbs.
46-201-a-*
DPDT, BBM, Alternate Action
.293 (7,44)
1.448 (36,78)
.180 (4,57) min.
1.8 ± .5 lbs.
46-402-a-*
additiOnaL diMenSiOnS and Part nuMBerS
*Partial part number, complete part number by adding a dash for
button color: white -01; red -03; green -04; blue -05; yellow -06 or
black -07, see Ordering Information.
CirCuitry
Switches have momentary action unless
otherwise indicated in the chart below.
**Adjustable from Dim. A .170 (4,32) minimum, Dim. B 1.285 (32,64)
maximum to Dim. A .290 (7,37) maximum, Dim. B 1.165 (29,59)
minimum with hex nut below bezel.
diMenSiOnS
in inches (and millimeters)
.800
(20,32)
SQ.
.600 (15,24)
.180 (4,57)
TYP.
dim. a:
dim. B:
Button Height
Behind Panel
(± .015)
Length (± .040)
Circuitry and
total
actuating
Partial
Features
travel
Force
Part no.*
Tolerances are ± .010 (0,25) unless otherwise specified.
For bottom views and
terminal markings, see
Series 30 and 46 switches
without bezels.
Hex nut for
30-017-A IS
9/16" (14,29)
across flats
and .094 (2,38)
thick.
.485 (12,32) SQ.
.063 (1,60)
.527 (13,39)
DIM. A SEE CHART
– .015 (0,38)
DIM. B
SEE CHART
– .040 (1,02)
.738 (18,75)
1.016 (25,81) REF.
LABEL*
*PART NUMBER
AND E.I.A. DATE
CODE LABEL
SPdt - BBM
n.C.
n.O.
C.
dPdt BBM
n.C.
n.O.
C1
n.C.
n.O.
C2
n.O.
n.C.
C.
SPdt MBB
dPdt MBB
n.O.
n.C.
C.
n.O.
n.C.
C.
