Page 61 of 64 General Machine Products Co., Inc.

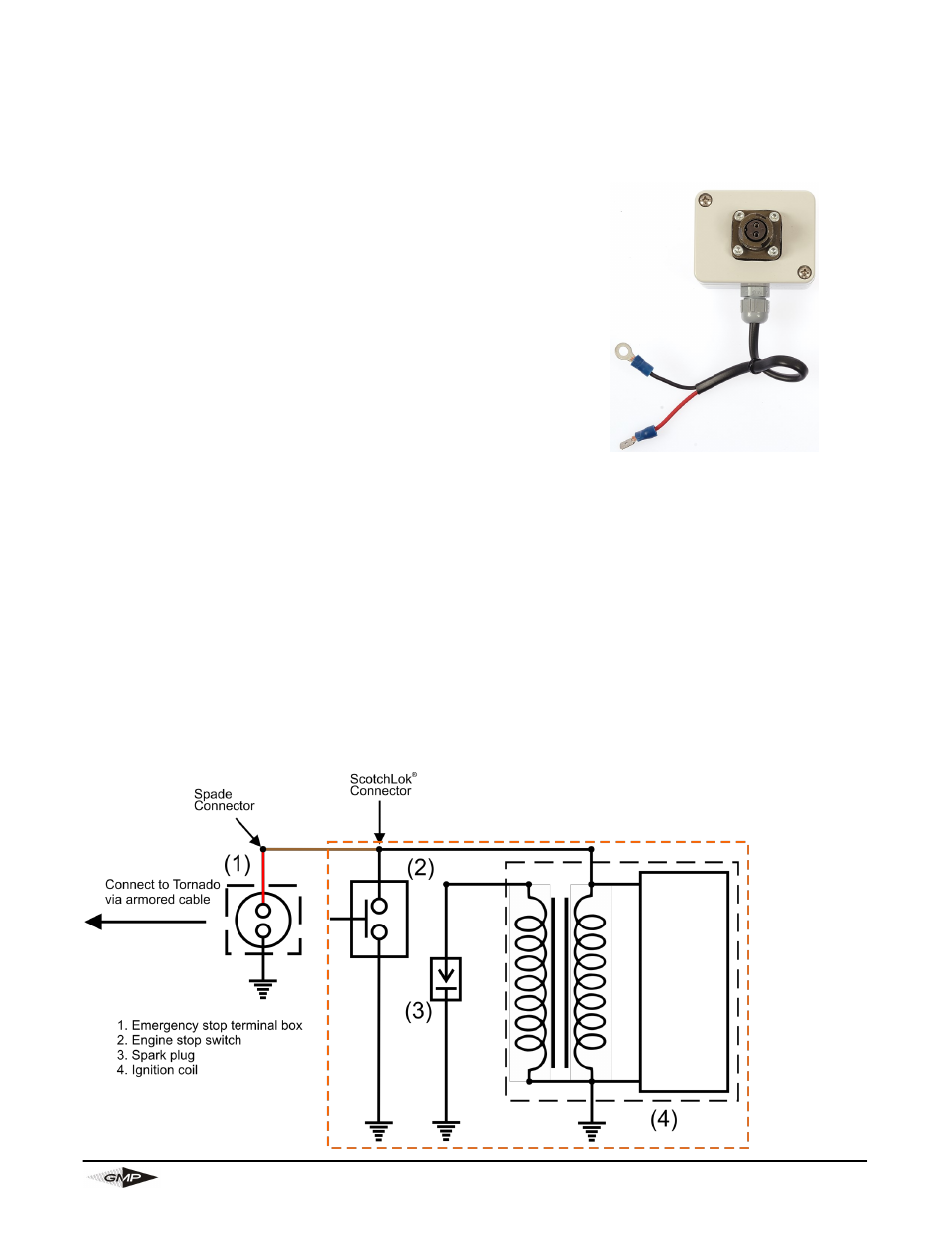

Emergency Stop Kit P/N 29003
The kit is designed to connect the gasoline engine of an alternative hydraulic power source
with the emergency stop circuit of the GMP P/N 89007 Tornado with manifold less power
pack.
The kit consists of:
• Emergency Stop Terminal Box includes M4 screws and
lock washers
• Armored Cable 26 ft. (8m) with connectors
• ScotchLok
® inline splice connector
• Wire (brown) 5 ft. (1.5m) with spade connector
Installation procedure:
• Mount the emergency stop terminal box to the hydraulic unit in an accessible location.
• Connect the terminal box's black wire (with ring terminal) to the hydraulic unit frame for
grounding. Remove powder coating or paint if required.
• Connect engine's stop switch wire with the brown wire via the ScotchLok ® connector.
• Connect terminal box's red wire (with spade male connector) to the female spade con-
nector of the brown wire.
• Connect engine’s stop circuit to the emergency stop terminal box via the armored cable.
• Verify that the circuit is wired properly. Ensure that when the emergency stop button is
depressed on the Tornado’s control panel that the engine stops.
Wiring Schematic
Connect to hot end of
engine stop switch
Connect to
chassis ground
Emergency Stop Terminal Box
