General Machine Products 89000 Cable Blowing Machine(Current) - Manual (Page 54)

Page 54 of 64 General Machine Products Co., Inc.
1 Air Pressure Gauge
2 Hydraulic Pressure Gauge
3 Speed Control Knob
4 Hydraulic “On / Off” Lever
5 Power “On / Off” Button
6 Emergency Stop Button
7 Length / Speed Digital Display
8 Hydraulic Control Panel
9 Electronic Control Panel

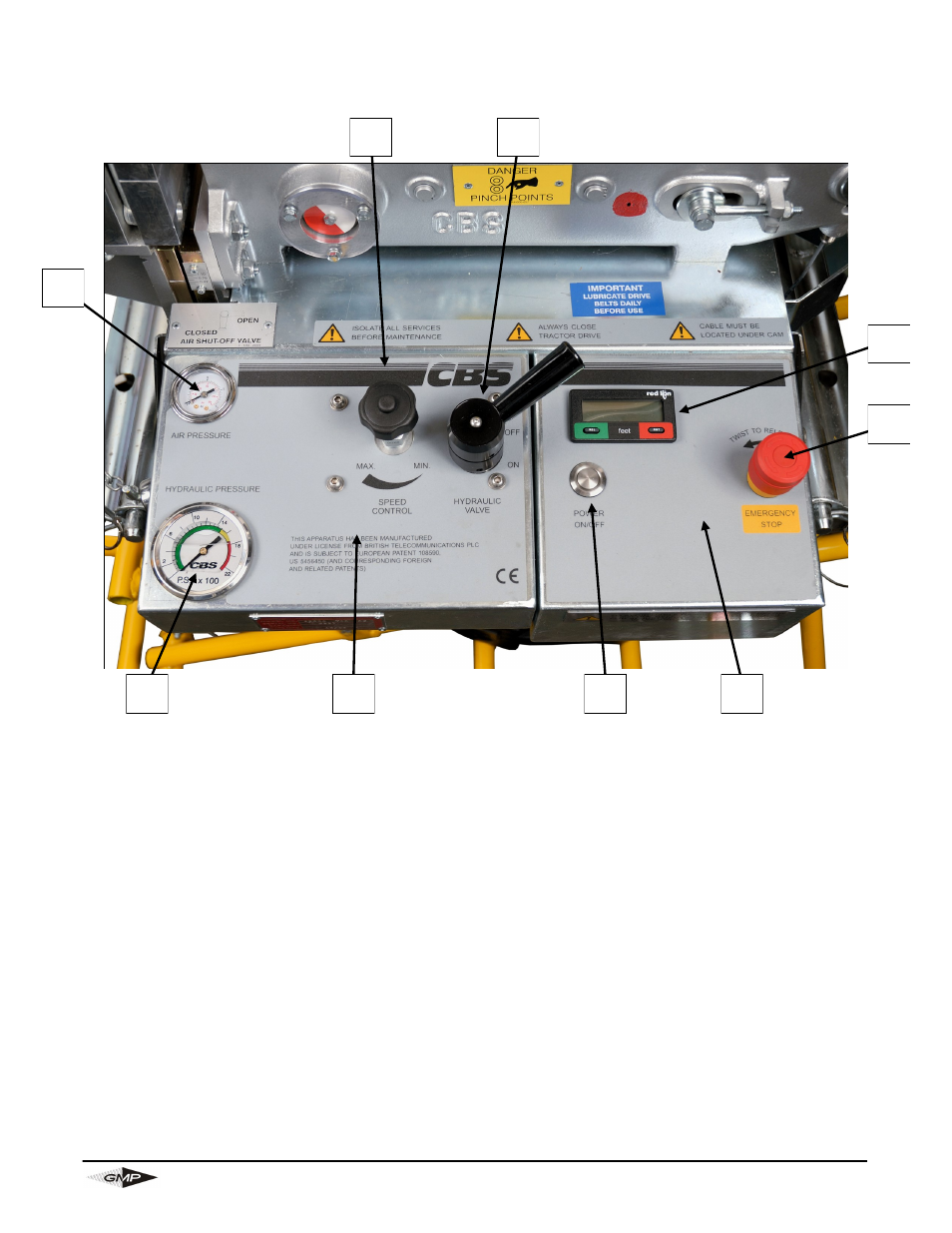

HYDRAULIC AND ELECTRONIC CONTROL PANEL LAYOUT
2 8 5 9
6
7
4 3
1
Appendix 4
